Datasheet
Close
Specifications
Design
| Range | Clipsal |
|---|---|

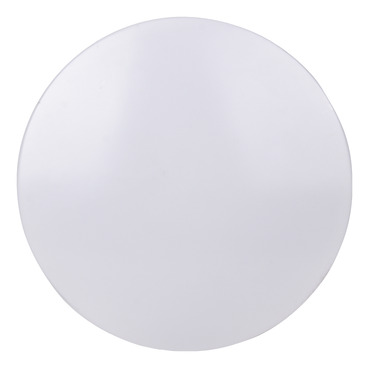

| Product or component type | ceiling light |
| Device application | lighting |
| Market segment |
|
Physical
| Device mounting | surface |
|---|---|
| Type of installation | indoor |
| Rated power in w | 20 W |
| [ue] rated operational voltage | 240 V AC 50 Hz |
| Load type | dimmable LED |
| Quantity per set | 1 |
| Width | 330 mm |
| Height | 80 mm |
| Net weight | 1.5 kg |
| Ip degree of protection | IP20 |
| Ambient air temperature for operation | -10...40 °C |
| Relative humidity | 10...95 % non-condensing |
| Mercury free | Yes |
| Rohs exemption information | Yes |
| Environmental disclosure | ENVPEP2502027_V1 |
| Reach regulation | Reference contains Substances of Very High Concern above the threshold |
| China rohs regulation | Product out of China RoHS scope |
| Eu rohs directive | Compliant By Exemption |
Material
| Device composition |
|
|---|
Documents & downloads
Filter items
-
All
-
Product Brochures
-

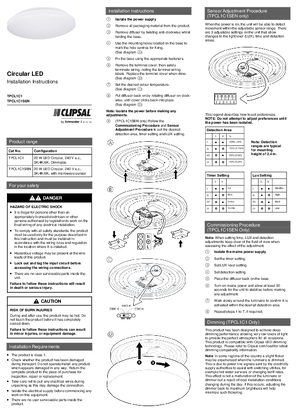

Installation Instruction
-
Declaration of Conformity (Sustainability)
ZIP
CLITPCL1C1SEN EU RoHS Directive
VERSION
1.0
DATE
01 Jan 1900
REVISION
1.0
ZIP
CLITPCL1C1SEN EU RoHS Directive
VERSION
1.0
DATE
01 Jan 1900
REVISION
1.0
ZIP
CLITPCL1C1SEN REACh Regulation
VERSION
1.0
DATE
01 Jan 1900
REVISION
1.0
ZIP
CLITPCL1C1SEN REACh Regulation
VERSION
1.0
DATE
01 Jan 1900
REVISION
1.0
