Clipsal - Lighting Batten Weatherproof LED 18W, 600mm, 3000K / 4000K / 6500K, IP65, IK08, white

Item Number: CLITPWP600

1 PCE 0

Where To Buy

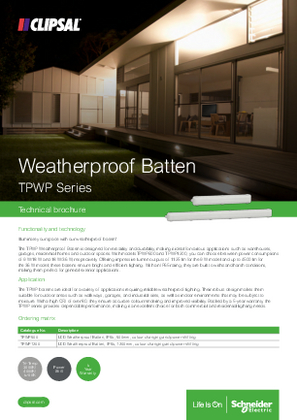

Datasheet

Download

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	3606487149347	-

Specifications

Design

Range	Clipsal
Product or component type	batten light
Device application	lighting
Colour tint	white

Physical

Type of installation	outdoor
[ue] rated operational voltage	230/240 V AC 50 Hz
Mounting mode	ceiling
Electrical insulation class	class II
Height	80 mm
Width	100 mm
Length	640 mm
Net weight	1000 g
Ip degree of protection	IP65
Ik degree of protection	IK08
Relative humidity	10...95 %
Ambient air temperature for operation	-10...45 °C
Reach free of svhc	Yes
Toxic heavy metal free	Yes
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP2409030_V1
Eu rohs directive	Compliant

Others

Package 1 bare product quantity	1
Legacy weee scope	In
Package 2 bare product quantity	6
Weee label	N/A
Weee applicability	Finished product
Package 3 bare product quantity	96
Average percentage of recycled plastic content	0 %
	Outside of Europe
Warranty duration(in months) bmecat	18
Product name	TPWP Series
Operational power in w	18 W
Colour rendering index	R_a=80
Luminous flux	2250 lm
Bulb lifespan	50000 h
Colour temperature	3000 K 4000 K 5700 K
Light source	LED
Shape	rectangular
Main colour tint	white
Targeted country	Australia
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	9.15 cm
Package 1 width	11.15 cm
Package 1 length	69.8 cm
Package 1 weight	1.098 kg
Unit type of package 2	CAR
Number of units in package 2	6
Package 2 height	21.6 cm
Package 2 width	37.1 cm
Package 2 length	73.3 cm
Package 2 weight	7.553 kg
Unit type of package 3	PAL
Number of units in package 3	96
Package 3 height	110 cm
Package 3 width	114 cm
Package 3 length	114 cm
Package 3 weight	134.848 kg
Green premium status for reporting	Green Premium product
Total lifecycle carbon footprint	241 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	1.3235766783266425
Carbon footprint of the manufacturing phase [a1 to a3]	1 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.025780694043971465
Carbon footprint of the distribution phase [a4]	0 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.0010615464166868077
Carbon footprint of the installation phase [a5]	0 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	239.2651325210617
Carbon footprint of the use phase [b2, b3, b4, b6]	239 kg CO2 eq.
Sustainable packaging	No
Carbon footprint of the end-of-life phase [c1 to c4]	0.378664671812148
Carbon footprint of the end-of-life phase [c1 to c4]	0.4 kg CO2 eq.
Pvc free	No
Silicone-free	No
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	240.99421611166116
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	No
Packaging without single use plastic	No
Pvc free	No
Silicone-free	No
End of life manual availability	ENVEOLI2409030EN
Take-back	No
Warranty (in months)	18
