Zelio Logic Smart relay discovery pack 20 I/O, 24V DC

Item Number: SR2PACK2BD

Where To Buy

Datasheet

PDF datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

Zelio Logic

Product or component type

compact discovery packs

Warranty

18 months

Physical

Backup time

10 years at 25 °C

Operating distance

10 m between stations, with screened cable (sensor not isolated) for analogue input circuit

Electrical durability

  • AC-12: 500000 cycles at 230 V, 1.5 A for relay output conforming to IEC 60947-5-1
  • AC-15: 500000 cycles at 230 V, 0.9 A for relay output conforming to IEC 60947-5-1
  • DC-12: 500000 cycles at 24 V, 1.5 A for relay output conforming to IEC 60947-5-1
  • DC-13: 500000 cycles at 24 V, 0.6 A for relay output conforming to IEC 60947-5-1

Mechanical durability

10000000 cycles for relay output

Connections - terminals

  • screw terminals, 1 x 0.2...1 x 2.5 mm² (AWG 25...AWG 14) semi-solid
  • screw terminals, 1 x 0.2...1 x 2.5 mm² (AWG 25...AWG 14) solid
  • screw terminals, 1 x 0.25...1 x 2.5 mm² (AWG 24...AWG 14) flexible with cable end
  • screw terminals, 2 x 0.2...2 x 1.5 mm² (AWG 24...AWG 16) solid
  • screw terminals, 2 x 0.25...2 x 0.75 mm² (AWG 24...AWG 18) flexible with cable end

Net weight

0.7 kg

Product certifications

  • GOST
  • C-Tick
  • UL
  • GL
  • CSA

Standards

  • IEC 61000-4-6 level 3
  • IEC 61000-4-3
  • IEC 60068-2-27 Ea
  • IEC 61000-4-11
  • IEC 61000-4-12
  • IEC 60068-2-6 Fc
  • IEC 61000-4-5
  • IEC 61000-4-2 level 3
  • IEC 61000-4-4 level 3

Ip degree of protection

  • IP20 (terminal block) conforming to IEC 60529
  • IP40 (front panel) conforming to IEC 60529

Environmental characteristic

  • EMC directive conforming to IEC 61000-6-2
  • EMC directive conforming to IEC 61000-6-3
  • EMC directive conforming to IEC 61000-6-4
  • EMC directive conforming to IEC 61131-2 zone B
  • low voltage directive conforming to IEC 61131-2

Ambient air temperature for operation

  • -20...40 °C in non-ventilated enclosure conforming to IEC 60068...2-1 and IEC 60068...2-2
  • -20...55 °C conforming to IEC 60068...2-1 and IEC 60068...2-2

Ambient air temperature for storage

-40...70 °C

Relative humidity

95 % without condensation or dripping water

Mercury free

Yes

Rohs exemption information

Yes

Environmental disclosure

ENVPEP060406EN

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Reach regulation

Reference contains Substances of Very High Concern above the threshold

China rohs regulation

X

California proposition 65

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Others

Package 2 bare product quantity

10

Package 1 bare product quantity

1

At least in Europe

Weee label

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Legacy weee scope

In

Average percentage of recycled plastic content

0 %

Discrete input number

12 conforming to IEC 61131-2 Type 1

Number of outputs

8 relay

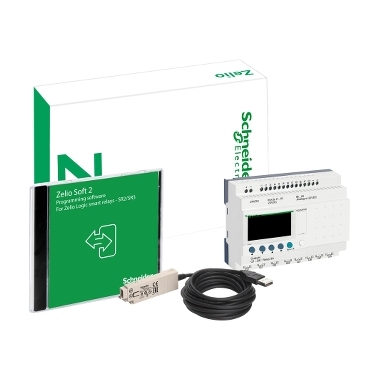

Kit composition

  • SR2B201BD
  • cable PC SR2USB01 for connection to PC

Input/output number

20

Local display

with

Number or control scheme lines

  • 120 with ladder programming
  • 0...200 with FBD programming

Cycle time

6...90 ms

Clock drift

  • 12 min/year at 0-55 °C
  • 6 s/month at 25-25 °C

Checks

program memory on each power up

[us] rated supply voltage

24 V

Supply voltage limits

19.2...30 V

Maximum supply current

100 mA (without extension)

Power dissipation in w

6 W without extension

Reverse polarity protection

with

Discrete input type

resistive

Discrete input voltage

24 V DC

Discrete input current

4 mA

Counting frequency

1 kHz for discrete input

Voltage state 1 guaranteed

  • >= 15 V for I1...IA and IH...IR discrete input circuit
  • >= 15 V for IB...IG used as discrete input circuit

Voltage state 0 guaranteed

  • <= 5 V for I1...IA and IH...IR discrete input circuit
  • <= 5 V for IB...IG used as discrete input circuit

Current state 1 guaranteed

  • >= 1.2 mA (IB...IG used as discrete input circuit)
  • >= 2.2 mA (I1...IA and IH...IR discrete input circuit)

Current state 0 guaranteed

<= 0.5 mA (IB...IG used as discrete input circuit)

Input compatibility

3-wire proximity sensors PNP for discrete input

Analogue input number

2

Analogue input type

common mode

Analogue input range

  • 0...10 V
  • 0...24 V

Temperature probe type

  • NTC 10k at 25 °C
  • NTC 1000k at 25 °C
  • KTY81 210/220/221/222/250
  • Pt 500

Maximum permissible voltage

30 V for analogue input circuit

Analogue input resolution

8 bits

Lsb value

39 mV for analogue input circuit

Conversion time

smart relay cycle time for analogue input circuit

Conversion error

  • +/- 5 % at 25 °C for analogue input circuit
  • +/- 6.2 % at 55 °C for analogue input circuit

Repeat accuracy

+/- 2 % at 55 °C for analogue input circuit

Input impedance

  • 12 kOhm for IB...IG used as analogue input circuit
  • 12 kOhm for IB...IG used as discrete input circuit
  • 7.4 kOhm for I1...IA and IH...IR discrete input circuit

Output voltage limits

  • 24...250 V AC (relay output)
  • 5...30 V DC (relay output)

Contacts type and composition

NO for relay output

Output thermal current

8 A for all 8 outputs for relay output

Switching capacity in ma

>= 10 mA at 12 V (relay output)

Operating rate in hz

  • 0.1 Hz (at Ie) for relay output
  • 10 Hz (no load) for relay output

[uimp] rated impulse withstand voltage

4 kV conforming to EN/IEC 60947-1 and EN/IEC 60664-1

Clock

without

Response time

  • 10 ms (from state 0 to state 1) for relay output
  • 5 ms (from state 1 to state 0) for relay output

Tightening torque

0.5 N.m

Overvoltage category

III conforming to IEC 60664-1

Immunity to microbreaks

1 ms

Disturbance radiated/conducted

class B conforming to EN 55022-11 group 1

Pollution degree

2 conforming to IEC 61131-2

Operating altitude

2000 m

Maximum altitude transport

3048 m

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

6.300 cm

Package 1 width

15.500 cm

Package 1 length

23.200 cm

Package 1 weight

508.000 g

Unit type of package 2

S03

Number of units in package 2

10

Package 2 height

30.000 cm

Package 2 width

30.000 cm

Package 2 length

40.000 cm

Package 2 weight

5.564 kg

Green premium status for reporting

Green Premium product

Total lifecycle carbon footprint

259 kg CO2 eq.

Carbon footprint of the manufacturing phase [a1 to a3]

61.49833315348919

Carbon footprint of the manufacturing phase [a1 to a3]

61 kg CO2 eq.

Carbon footprint of the distribution phase [a4]

0.9966319871739299

Carbon footprint of the distribution phase [a4]

1 kg CO2 eq.

Carbon footprint of the installation phase [a5]

0.09433938384246682

Carbon footprint of the installation phase [a5]

0.1 kg CO2 eq.

Carbon footprint of the use phase [b2, b3, b4, b6]

195.24214385882985

Carbon footprint of the use phase [b2, b3, b4, b6]

195 kg CO2 eq.

Sustainable packaging

No

Carbon footprint of the end-of-life phase [c1 to c4]

1.2571789396712894

Carbon footprint of the end-of-life phase [c1 to c4]

1 kg CO2 eq.

Pvc free

Yes

Take-back

No

Product contributes to saved and avoided emissions

No

Total lifecycle carbon footprint

259.08862732300673

Average percentage of recycled metal content

0 %

Packaging made with recycled cardboard

No

Packaging without single use plastic

Yes

Scip number

eee2fc35-1620-4b70-b1d5-206e9240044e

Pvc free

Yes

End of life manual availability

ENVEOLI0604006EN

Take-back

No

Weee label

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Warranty (in months)

18
