Zelio Logic Modem communication interface for smart relay

Item Number: SR2COM01

This SR2 communication interface has a coil control voltage of 12V-24V DC. It can transfer program, send alarm to e-mail,and send alarm/receive instruction. It monitors or remotes control of machine or installation that operate without personnel. Communication interface allows messages, telephone numbers, and calling. It has flexibility design for space-saving with retractable mounting lug, spring for clip-on.

Where To Buy

Datasheet

PDF datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

Zelio Logic

Product or component type

modem communication interface

Product compatibility

  • SR2E.....
  • SR.B.....

Warranty

18 months

Physical

Function available

  • update firmware monitoring
  • send alarm to e-mail address
  • send alarm/receive instruction
  • transfer program

Connections - terminals

  • screw terminals, 1 x 0.2...1 x 2.5 mm² (AWG 25...AWG 14) semi-solid
  • screw terminals, 1 x 0.2...1 x 2.5 mm² (AWG 25...AWG 14) solid
  • screw terminals, 2 x 0.2...2 x 1.5 mm² (AWG 24...AWG 16) solid
  • screw terminals, 1 x 0.25...1 x 2.5 mm² (AWG 24...AWG 14) flexible with cable end
  • screw terminals, 2 x 0.25...2 x 0.75 mm² (AWG 24...AWG 18) flexible with cable end

Net weight

0.2 kg

Product certifications

  • GOST
  • CSA
  • C-Tick
  • UL

Standards

  • IEC 61000-4-11
  • IEC 61000-4-3
  • IEC 60068-2-27 Ea
  • IEC 61000-4-4 level 3
  • IEC 61000-4-12
  • IEC 61000-4-5
  • IEC 61000-4-2 level 3
  • IEC 61000-4-6 level 3
  • IEC 60068-2-6 Fc

Ip degree of protection

  • IP20 (terminal block) conforming to IEC 60529
  • IP40 (front panel) conforming to IEC 60529

Environmental characteristic

  • EMC directive conforming to IEC 61000-6-2
  • EMC directive conforming to IEC 61000-6-3
  • EMC directive conforming to IEC 61000-6-4
  • EMC directive conforming to IEC 61131-2 zone B
  • low voltage directive conforming to IEC 61131-2

Ambient air temperature for operation

  • -20...40 °C conforming to IEC 60068...2-1 and IEC 60068...2-2
  • -20...55 °C conforming to IEC 60068...2-1 and IEC 60068...2-2

Ambient air temperature for storage

-40...70 °C

Relative humidity

95 % without condensation or dripping water

Mercury free

Yes

Rohs exemption information

Yes

Environmental disclosure

ENVPEP060406EN

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Reach regulation

Reference contains Substances of Very High Concern above the threshold

China rohs regulation

X

California proposition 65

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Others

Package 2 bare product quantity

20

Average percentage of recycled plastic content

0 %

Package 1 bare product quantity

1

At least in Europe

Weee label

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Legacy weee scope

In

Data backed up

flash memory

Kit composition

  • 1 x SR2CBL07
  • modem communication interface

Number of messages

28

Electrical data recording

  • discrete and digital value
  • telephone/e-mail
  • date and time

[us] rated supply voltage

12...24 V DC

Supply voltage limits

10...28.8 V

Maximum supply current

  • 30 mA 12 V
  • 30 mA 24 V
  • 550 A

Power dissipation in w

1.1 W

Reverse polarity protection

with

Associated fuse rating

1 A

Electrical connection

  • 1 cable Com-M specific to Zelio, RS232 serial, specific Zelio communication protocol for link with the modem, AT commands
  • 1 cable Com-Z specific to Zelio, specific Zelio communication protocol for Zelio Logic smart relays SR.B..... and SR2 E..... Version (>= V3.1)

Insulation

  • 1780 V optocoupler, connector type: Com-Z specific to Zelio
  • by the cable SR2 CBL07, connector type: Com-M specific to Zelio

Tightening torque

0.5 N.m

Disturbance radiated/conducted

class B conforming to IEC 55022-11 Group 1

Pollution degree

2 conforming to IEC 61131-2

Operating altitude

2000 m

Maximum altitude transport

3048 m

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

6.600 cm

Package 1 width

10.200 cm

Package 1 length

13.500 cm

Package 1 weight

219.000 g

Unit type of package 2

S02

Number of units in package 2

20

Package 2 height

15.000 cm

Package 2 width

30.000 cm

Package 2 length

40.000 cm

Package 2 weight

4.865 kg

Green premium status for reporting

Green Premium product

Total lifecycle carbon footprint

62 kg CO2 eq.

Carbon footprint of the manufacturing phase [a1 to a3]

25.481381067581182

Carbon footprint of the manufacturing phase [a1 to a3]

25 kg CO2 eq.

Carbon footprint of the distribution phase [a4]

0.4129471181915885

Carbon footprint of the distribution phase [a4]

0.4 kg CO2 eq.

Carbon footprint of the installation phase [a5]

0.03908882836500618

Carbon footprint of the installation phase [a5]

0 kg CO2 eq.

Carbon footprint of the use phase [b2, b3, b4, b6]

35.79439304078547

Carbon footprint of the use phase [b2, b3, b4, b6]

36 kg CO2 eq.

Sustainable packaging

Yes

Carbon footprint of the end-of-life phase [c1 to c4]

0.5209028275928849

Carbon footprint of the end-of-life phase [c1 to c4]

0.5 kg CO2 eq.

Pvc free

Yes

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A

Total lifecycle carbon footprint

62.24871288251614

Average percentage of recycled metal content

0 %

Packaging made with recycled cardboard

Yes

Packaging without single use plastic

Yes

Scip number

eee2fc35-1620-4b70-b1d5-206e9240044e

Pvc free

Yes

End of life manual availability

ENVEOLI0604006EN

Take-back

No

Weee label

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Warranty (in months)

18
Show all specifications

Documents & downloads

hide show
Filter items

  • All

  • Technical Data Catalogues

  • End of Life Manual

  • Environmental Disclosure

  • Installation Instruction

  • Operating Manuals

  • Certificates (MSDS)

  • Declaration of Conformity

  • eTechPub

  • Declaration of Conformity (Sustainability)

Important: Some software files may need a mySchneider or Club login to download.
Catalog Zelio Logic Smart relays for simple automation systems from 10 to 40 IOs_English_January 2022
ZIP

Catalog Zelio Logic Smart relays for simple automation systems from 10 to 40 IOs_English_January 2022

VERSION

4.0

DATE

23 Sep 2025

REVISION

4.0

DOWNLOAD (ZIP) 9 MB
Zelio Logic Smart Relays
ZIP

Zelio Logic Smart Relays

VERSION

3.0

DATE

20 Nov 2024

REVISION

3.0

DOWNLOAD (ZIP) 264.6 KB
Zelio Logic Smart Relays
ZIP

Zelio Logic Smart Relays

VERSION

4.0

DATE

20 Nov 2024

REVISION

4.0

DOWNLOAD (ZIP) 348.5 KB

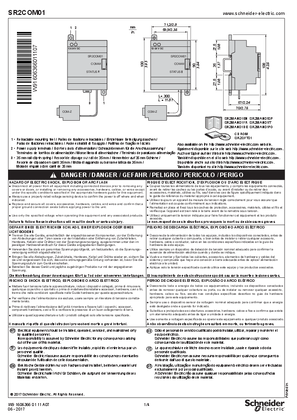

SR2COM01 Modem communication interface RTC/GSM
ZIP

SR2COM01 Modem communication interface RTC/GSM

VERSION

6.0

DATE

29 Sep 2023

REVISION

6.0

DOWNLOAD (ZIP) 1.7 MB

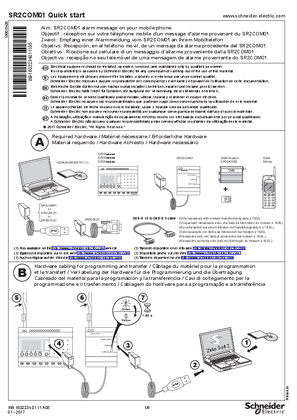

SR2COM01 Quick start
ZIP

SR2COM01 Quick start

VERSION

5.0

DATE

29 Sep 2023

REVISION

5.0

DOWNLOAD (ZIP) 2.6 MB

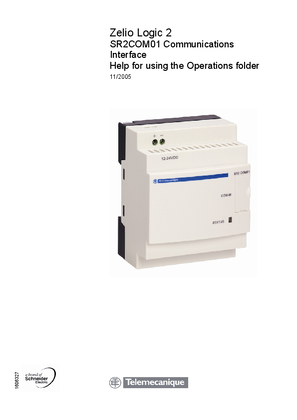

SR2COM01 Communications Interface, Help for using the Operations folder
