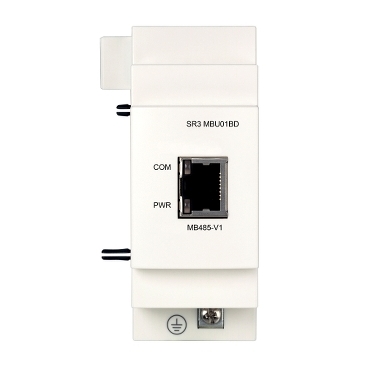

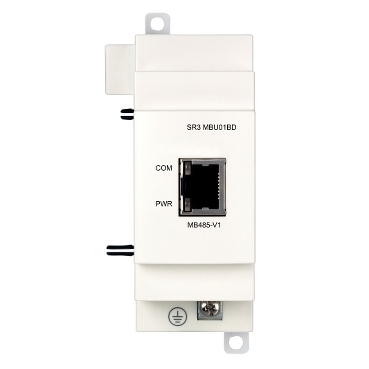

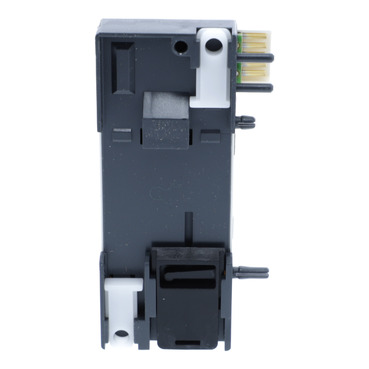

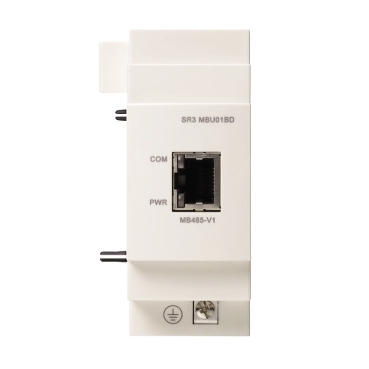

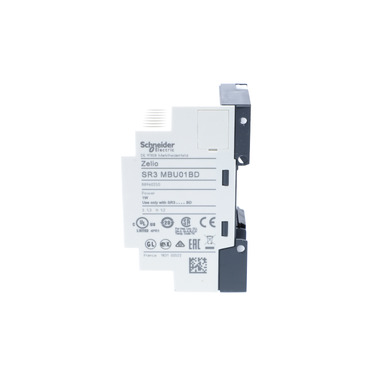

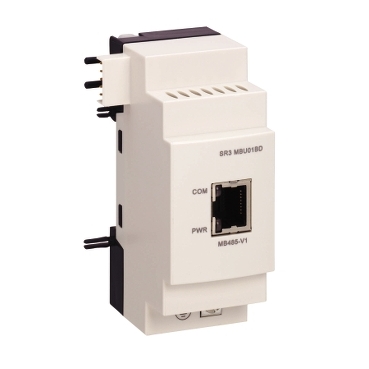

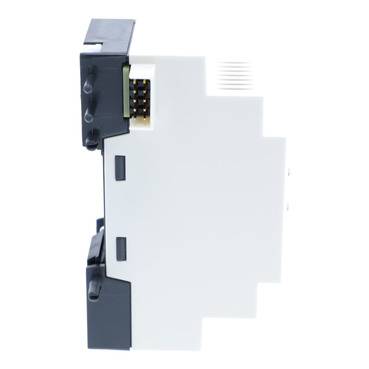

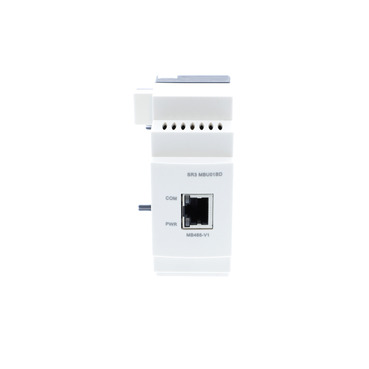

Zelio Logic Modbus slave communication module network for SR3 24V DC smart relay

Item Number: SR3MBU01BD

1 PCE 0

Where To Buy

Datasheet

Download

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	3389110840339	-

Specifications

Design

Range of product	Zelio Logic
Product or component type	Modbus slave communication module
Product compatibility	all modules with 24 V supply SR3 B...BD
Warranty	18 months

Physical

Communication port protocol	Modbus
Connections - terminals	screw terminals, 1 x 0.25...1 x 2.5 mm² (24 AWG...14 AWG) semi-solid screw terminals, 1 x 0.25...1 x 2.5 mm² (24 AWG...14 AWG) solid screw terminals, 2 x 0.25...2 x 1.5 mm² (23 AWG...16 AWG) solid screw terminals, 1 x 0.25...1 x 2.5 mm² (24 AWG...14 AWG) flexible with cable end screw terminals, 2 x 0.25...2 x 0.75 mm² (24 AWG...18 AWG) flexible with cable end
Local signalling	1 LED for communication 1 LED for power ON
Net weight	0.11 kg
Product certifications	GOST CSA GL C-Tick UL
Standards	IEC 60068-2-27 Ea IEC 61000-4-3 IEC 61000-4-4 level 3 IEC 61000-4-2 level 3 IEC 61000-4-5 IEC 60068-2-6 Fc
Ip degree of protection	IP20 (terminal block) conforming to IEC 60529 IP40 (front panel) conforming to IEC 60529
Environmental characteristic	EMC directive conforming to IEC 61000-6-2 EMC directive conforming to IEC 61000-6-3 EMC directive conforming to IEC 61000-6-4 EMC directive conforming to IEC 61131-2 zone B low voltage directive conforming to IEC 61131-2
Ambient air temperature for operation	-20...40 °C conforming to IEC 60068...2-1 and IEC 60068...2-2 -20...55 °C conforming to IEC 60068...2-1 and IEC 60068...2-2
Ambient air temperature for storage	-40...70 °C
Relative humidity	95 % without condensation or dripping water
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP0604006EN
Eu rohs directive	Compliant By Exemption
California proposition 65	WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Others

Package 1 bare product quantity	1
Package 2 bare product quantity	48
Legacy weee scope	In
Average percentage of recycled plastic content	0 %
	At least in Europe
Warranty duration(in months) bmecat	18
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Wiring mode	2 or 4 wires
Communication port support	RS485
Electrical connection	1 connector RJ45
Transmission frame	RTU ASCII
Transmission rate	1200 bauds 9600 bauds 38400 bauds 19200 bauds 57600 bauds 28800 bauds 2400 bauds 4800 bauds
Parity	no odd even
Number of addresses	1...247
Programming language	FBD ladder
Tightening torque	0.5 N.m
Disturbance radiated/conducted	class B conforming to EN 55022-11 group 1
Pollution degree	2 conforming to IEC 61131-2
Operating altitude	2000 m
Maximum altitude transport	3048 m
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	6.000 cm
Package 1 width	6.500 cm
Package 1 length	11.000 cm
Package 1 weight	102.000 g
Unit type of package 2	S03
Number of units in package 2	48
Package 2 height	30.000 cm
Package 2 width	30.000 cm
Package 2 length	40.000 cm
Package 2 weight	5.470 kg
Green premium status for reporting	Green Premium product
Total lifecycle carbon footprint	55 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	12.4274594595
Carbon footprint of the manufacturing phase [a1 to a3]	12 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.0135472703
Carbon footprint of the distribution phase [a4]	0 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.0000657073
Carbon footprint of the installation phase [a5]	0 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	42.92
Carbon footprint of the use phase [b2, b3, b4, b6]	43 kg CO2 eq.
Sustainable packaging	Yes
Carbon footprint of the end-of-life phase [c1 to c4]	0.0879701351
Carbon footprint of the end-of-life phase [c1 to c4]	0.1 kg CO2 eq.
Pvc free	Yes
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	55.4490425722
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	Yes
Packaging without single use plastic	Yes
Scip number	ab7a5df6-4d23-4fb1-96de-7c15d64130aa
Pvc free	Yes
End of life manual availability	ENVEOLI0604006EN
Take-back	No
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Warranty (in months)	18
