Zelio Logic GSM modem interface for communication interface SR2COM01

Home ProductsIndustrialZelio LogicGSM modem interface

Zelio Logic GSM modem interface for communication interface SR2COM01

Item Number: SR2MOD02

This Zelio Logic SR2 modem interface brings GSM connectivity to your Zelio Logic relay. It provides wireless communications available directly through GSM network, a simple SIM card is enough to get.

Where To Buy

Datasheet

PDF datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

Zelio Logic

Product or component type

GSM modem

Warranty

18 months

Physical

Function available

  • send alarm/receive instruction
  • send alarm to e-mail address
  • transfer program
  • update firmware monitoring

Connections - terminals

  • screw terminals, 1 x 0.25...1 x 2.5 mm² (AWG 24...AWG 14) flexible with cable end
  • screw terminals, 2 x 0.25...2 x 0.75 mm² (AWG 24...AWG 18) flexible with cable end
  • screw terminals, 1 x 0.25...1 x 2.5 mm² (AWG 24...AWG 14) semi-solid
  • screw terminals, 1 x 0.25...1 x 2.5 mm² (AWG 24...AWG 14) solid
  • screw terminals, 2 x 0.25...2 x 1.5 mm² (AWG 23...AWG 16) solid

Net weight

0.335 kg

Product certifications

  • UL
  • PTCRB
  • GOST
  • CSA
  • IC
  • FCC part 15 standard
  • C-Tick

Standards

  • EN/IEC 60068-2-6 Fc
  • EN/IEC 60068-2-32

Ip degree of protection

IP31 conforming to IEC 60529

Environmental characteristic

  • low voltage directive conforming to EN/IEC 60950-1
  • R and TTE directive conforming to ETSI EN 301419-1
  • R and TTE directive conforming to ETSI EN 301 489-7
  • R and TTE directive conforming to ETSI EN 301 511
  • EMC directive conforming to ETSI EN 301 489-1

Ambient air temperature for operation

  • -20...55 °C conforming to IEC 60068...2-1
  • -20...55 °C conforming to IEC 60068...2-2

Ambient air temperature for storage

-40...70 °C

Relative humidity

  • 0...95 % at 55 °C without condensation
  • 0...95 % without condensation, during storage

Mercury free

Yes

Rohs exemption information

Yes

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Reach regulation

Reference contains Substances of Very High Concern above the threshold

China rohs regulation

X

California proposition 65

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Others

Legacy weee scope

In

Package 1 bare product quantity

1

At least in Europe

Weee label

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Type of modem

type quad band 900/1800 MHz, 850/1900 MHz

Data backed up

flash memory

Kit composition

  • GSM modem
  • fixing on DIN rail (assembled with the GSM modem)
  • 1 supply cable
  • 1 antenna with cable
  • 2 lugs for plate mounting

Number of messages

28

Electrical data recording

  • telephone/e-mail
  • discrete and digital value
  • date and time

[us] rated supply voltage

12...24 V DC

Supply voltage limits

5.5...32 V

Maximum supply current

  • 165 mA at 12 V
  • 87 A at 24 V
  • 2100 mA at 5.5 V

Power dissipation in w

2.1 W

Associated fuse rating

2.5 A

Electrical connection

  • 1 cable Com-M Com-M specific to Zelio RS232 serial, specific Zelio communication protocol for link with the modem, AT commands
  • 1 antenna with cable
  • 1 cable
  • 1 cable Com-Z Com-Z specific to Zelio, specific Zelio communication protocol for Zelio Logic smart relays SR.B..... and SR2 E..... Version (>= V3.1)
  • supply cable

Cable length

  • 1.5 m supply cable
  • 2.5 m antenna with cable

Insulation

  • 1780 V optocoupler, connector type: Com-Z specific to Zelio
  • by the cable SR2 CBL07, connector type: Com-M specific to Zelio

Tightening torque

0.5 N.m

Electromagnetic compatibility

conducted and radiated emissions class B group 1 conforming to EN 55022-11

Pollution degree

2 conforming to EN/IEC 61131-2

Operating altitude

2000 m

Maximum altitude transport

3048 m

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

7.5 cm

Package 1 width

7.5 cm

Package 1 length

14.7 cm

Package 1 weight

318.0 g

Unit type of package 2

S03

Number of units in package 2

20

Package 2 height

30.0 cm

Package 2 width

30.0 cm

Package 2 length

40.0 cm

Package 2 weight

6.895 kg

Sustainable packaging

No

Pvc free

Yes

Product contributes to saved and avoided emissions

No

Scip number

ea60bac0-7fe0-45c4-aa54-fd3c05e810a2

Pvc free

Yes

Weee label

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Warranty (in months)

18
Show all specifications

Documents & downloads

hide show
Filter items

  • All

  • Technical Data Catalogues

  • Installation Instruction

  • Operating Manuals

  • eTechPub

  • Declaration of Conformity

  • Declaration of Conformity (Sustainability)

Important: Some software files may need a mySchneider or Club login to download.
Catalog Zelio Logic Smart relays for simple automation systems from 10 to 40 IOs_English_January 2022
ZIP

Catalog Zelio Logic Smart relays for simple automation systems from 10 to 40 IOs_English_January 2022

VERSION

4.0

DATE

23 Sep 2025

REVISION

4.0

DOWNLOAD (ZIP) 9 MB
SR2COM01 Modem communication interface RTC/GSM
ZIP

SR2COM01 Modem communication interface RTC/GSM

VERSION

6.0

DATE

29 Sep 2023

REVISION

6.0

DOWNLOAD (ZIP) 1.7 MB
SR2COM01 Quick start
ZIP

SR2COM01 Quick start

VERSION

5.0

DATE

29 Sep 2023

REVISION

5.0

DOWNLOAD (ZIP) 2.6 MB

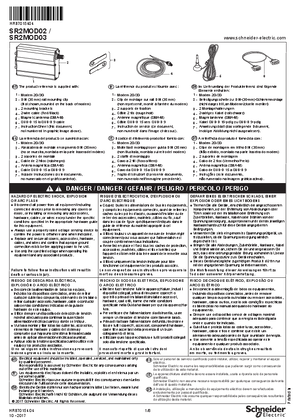

SR2MOD02, SR2MOD03 GSM Modem, Instruction Sheet
ZIP

SR2MOD02, SR2MOD03 GSM Modem, Instruction Sheet

VERSION

3.0

DATE

29 Sep 2023

REVISION

3.0

DOWNLOAD (ZIP) 3 MB

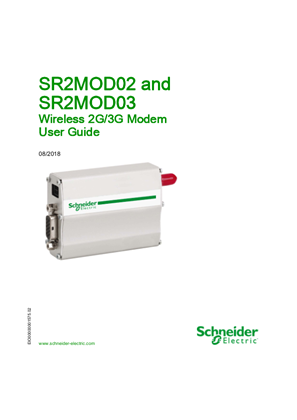

SR2MOD02 and SR2MOD03 Wireless 2G/3G Modem, User Guide
ZIP

SR2MOD02 and SR2MOD03 Wireless 2G/3G Modem, User Guide

VERSION

3.0

DATE

02 Aug 2022

REVISION

3.0

DOWNLOAD (ZIP) 2 MB
English
ZIP

English

VERSION

1.1

DATE

23 Oct 2024

REVISION

1.1

DOWNLOAD (ZIP) 857.1 KB

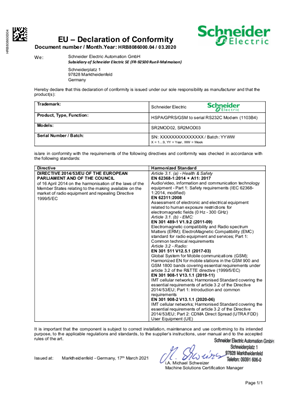

Zelio Modem SR2MOD EU Declaration of Conformity
