Zelio Logic Ethernet communication interface for SR3 24V DC smart relay

Home ProductsIndustrialZelio LogicEthernet communication interface

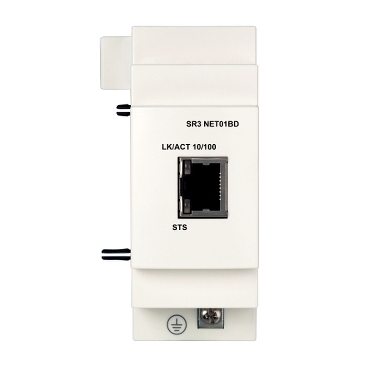

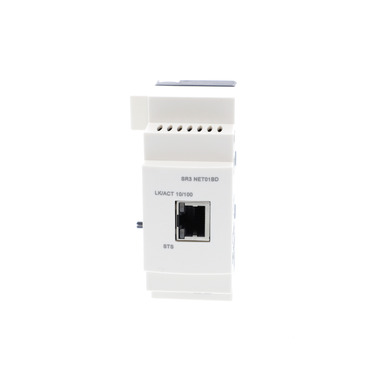

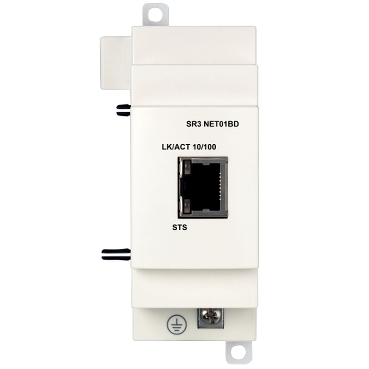

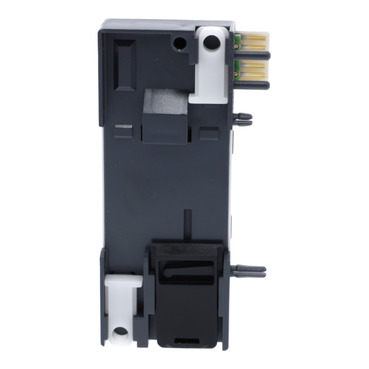

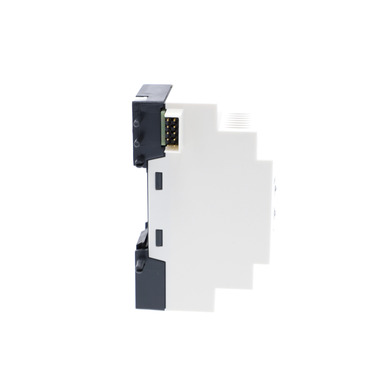

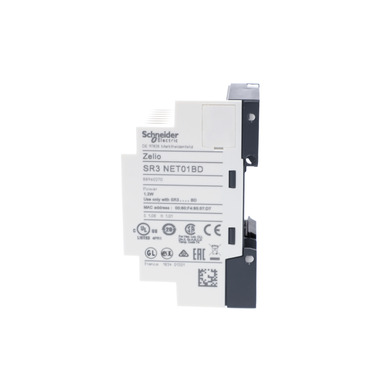

Zelio Logic Ethernet communication interface for SR3 24V DC smart relay

Item Number: SR3NET01BD

Where To Buy

Datasheet

PDF datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

Zelio Logic

Product or component type

Ethernet communication module

Product compatibility

all modules with 24 V supply SR3 B...BD

Warranty

18 months

Physical

Communication port protocol

Ethernet

Connections - terminals

  • screw terminals, 1 x 0.25...1 x 2.5 mm² (AWG 24...AWG 14) semi-solid
  • screw terminals, 1 x 0.25...1 x 2.5 mm² (AWG 24...AWG 14) solid
  • screw terminals, 2 x 0.25...2 x 1.5 mm² (AWG 23...AWG 16) solid
  • screw terminals, 1 x 0.25...1 x 2.5 mm² (AWG 24...AWG 14) flexible with cable end
  • screw terminals, 2 x 0.25...2 x 0.75 mm² (AWG 24...AWG 18) flexible with cable end

Local signalling

  • 1 LED for communication (LK/ACT 10/100)
  • 1 LED for status (STS)

Net weight

0.11 kg

Product certifications

  • CSA
  • C-Tick
  • GOST
  • UL

Standards

  • IEC 61000-4-4 level 3
  • IEC 61000-4-5
  • IEC 61000-4-2 level 3
  • IEC 61000-4-3
  • IEC 60068-2-6 Fc
  • IEC 60068-2-27 Ea

Ip degree of protection

  • IP20 (terminal block) conforming to IEC 60529
  • IP40 (front panel) conforming to IEC 60529

Environmental characteristic

  • EMC directive conforming to IEC 61000-6-2
  • EMC directive conforming to IEC 61000-6-3
  • EMC directive conforming to IEC 61000-6-4
  • EMC directive conforming to IEC 61131-2 zone B
  • low voltage directive conforming to IEC 61131-2

Ambient air temperature for operation

  • -20...40 °C conforming to IEC 60068...2-1 and IEC 60068...2-2
  • -20...55 °C conforming to IEC 60068...2-1 and IEC 60068...2-2

Ambient air temperature for storage

-40...70 °C

Relative humidity

95 % without condensation or dripping water

Mercury free

Yes

Rohs exemption information

Yes

Environmental disclosure

ENVPEP060406EN

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Reach regulation

Reference contains Substances of Very High Concern above the threshold

China rohs regulation

X

California proposition 65

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Others

Package 2 bare product quantity

48

Package 1 bare product quantity

1

Legacy weee scope

In

Average percentage of recycled plastic content

0 %

At least in Europe

Weee label

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Communication port support

10/100BASE-T

Electrical connection

1 connector RJ45

Programming language

FBD

Tightening torque

0.5 N.m

Disturbance radiated/conducted

class B conforming to EN 55022-11 group 1

Pollution degree

2 conforming to IEC 61131-2

Operating altitude

2000 m

Maximum altitude transport

3048 m

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

6.000 cm

Package 1 width

6.500 cm

Package 1 length

11.000 cm

Package 1 weight

109.000 g

Unit type of package 2

S03

Number of units in package 2

48

Package 2 height

30.000 cm

Package 2 width

30.000 cm

Package 2 length

40.000 cm

Package 2 weight

5.780 kg

Green premium status for reporting

Green Premium product

Total lifecycle carbon footprint

53 kg CO2 eq.

Carbon footprint of the manufacturing phase [a1 to a3]

13.353223732530523

Carbon footprint of the manufacturing phase [a1 to a3]

13 kg CO2 eq.

Carbon footprint of the distribution phase [a4]

0.21640017251386132

Carbon footprint of the distribution phase [a4]

0.2 kg CO2 eq.

Carbon footprint of the installation phase [a5]

0.020484049479738815

Carbon footprint of the installation phase [a5]

0 kg CO2 eq.

Carbon footprint of the use phase [b2, b3, b4, b6]

39.04842877176597

Carbon footprint of the use phase [b2, b3, b4, b6]

39 kg CO2 eq.

Sustainable packaging

Yes

Carbon footprint of the end-of-life phase [c1 to c4]

0.2729731163828099

Carbon footprint of the end-of-life phase [c1 to c4]

0.3 kg CO2 eq.

Pvc free

Yes

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A

Total lifecycle carbon footprint

52.9115098426729

Average percentage of recycled metal content

0 %

Packaging made with recycled cardboard

Yes

Packaging without single use plastic

Yes

Scip number

ab7a5df6-4d23-4fb1-96de-7c15d64130aa

Pvc free

Yes

End of life manual availability

ENVEOLI0604006EN

Take-back

No

Weee label

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Warranty (in months)

18
Show all specifications

Documents & downloads

hide show
Filter items

  • All

  • Technical Data Catalogues

  • End of Life Manual

  • Environmental Disclosure

  • Installation Instruction

  • Operating Manuals

  • Certificates (MSDS)

  • Declaration of Conformity

  • eTechPub

  • Declaration of Conformity (Sustainability)

Important: Some software files may need a mySchneider or Club login to download.
Catalog Zelio Logic Smart relays for simple automation systems from 10 to 40 IOs_English_January 2022
ZIP

Catalog Zelio Logic Smart relays for simple automation systems from 10 to 40 IOs_English_January 2022

VERSION

4.0

DATE

23 Sep 2025

REVISION

4.0

DOWNLOAD (ZIP) 9 MB
Zelio Logic Smart Relays
ZIP

Zelio Logic Smart Relays

VERSION

3.0

DATE

20 Nov 2024

REVISION

3.0

DOWNLOAD (ZIP) 264.6 KB
Zelio Logic Smart Relays
ZIP

Zelio Logic Smart Relays

VERSION

4.0

DATE

20 Nov 2024

REVISION

4.0

DOWNLOAD (ZIP) 348.5 KB

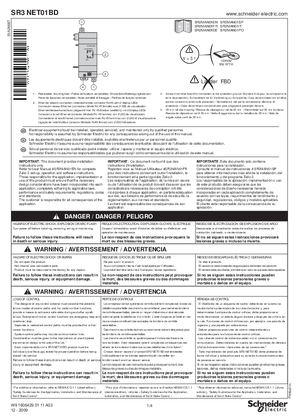

SR3NETO1BD Ethernet server communication module
