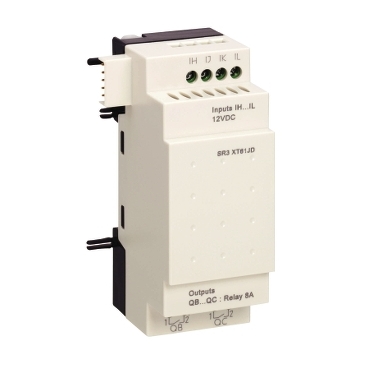

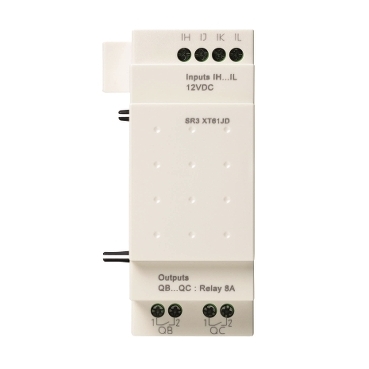

Zelio Logic Discrete I/O extension module 6 I/O, 12 V DC

Item Number: SR3XT61JD

1 PCE 0

Where To Buy

Datasheet

Download

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	3389119203937	-

Specifications

Design

Range of product	Zelio Logic
Product or component type	discrete I/O extension module
Warranty	18 months

Physical

Backup time	10 years at 25 °C
Electrical durability	AC-15: 500000 cycles at 230 V, 0.9 A for relay output conforming to IEC 60947-5-1 AC-12: 500000 cycles at 230 V, 1.5 A for relay output conforming to IEC 60947-5-1 DC-13: 500000 cycles at 24 V, 0.6 A for relay output conforming to IEC 60947-5-1 DC-12: 500000 cycles at 24 V, 1.5 A for relay output conforming to IEC 60947-5-1
Mechanical durability	10000000 cycles for relay output
Connections - terminals	screw terminals, 1 x 0.25...1 x 2.5 mm² (AWG 24...AWG 14) flexible with cable end screw terminals, 2 x 0.25...2 x 0.75 mm² (AWG 24...AWG 18) flexible with cable end screw terminals, 1 x 0.2...1 x 2.5 mm² (AWG 25...AWG 14) semi-solid screw terminals, 1 x 0.2...1 x 2.5 mm² (AWG 25...AWG 14) solid screw terminals, 2 x 0.2...2 x 1.5 mm² (AWG 24...AWG 16) solid
Net weight	0.125 kg
Product certifications	C-Tick UL GL CSA GOST
Standards	IEC 61000-4-11 IEC 61000-4-3 IEC 61000-4-12 IEC 60068-2-27 Ea IEC 60068-2-6 Fc IEC 61000-4-2 level 3 IEC 61000-4-4 level 3 IEC 61000-4-5 IEC 61000-4-6 level 3
Ip degree of protection	IP20 (terminal block) conforming to IEC 60529 IP40 (front panel) conforming to IEC 60529
Environmental characteristic	EMC directive conforming to IEC 61000-6-2 EMC directive conforming to IEC 61000-6-3 EMC directive conforming to IEC 61000-6-4 EMC directive conforming to IEC 61131-2 zone B low voltage directive conforming to IEC 61131-2
Ambient air temperature for operation	-20...40 °C in non-ventilated enclosure conforming to IEC 60068...2-1 and IEC 60068...2-2 -20...55 °C conforming to IEC 60068...2-1 and IEC 60068...2-2
Ambient air temperature for storage	-40...70 °C
Relative humidity	95 % without condensation or dripping water
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP2011013EN
Reach regulation	Reference contains Substances of Very High Concern above the threshold
China rohs regulation	X
Eu rohs directive	Compliant By Exemption
California proposition 65	WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Others

Average percentage of recycled plastic content	0 %
Package 2 bare product quantity	48
Package 1 bare product quantity	1
Legacy weee scope	In
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
	At least in Europe
Warranty duration(in months) bmecat	18
Number or control scheme lines	120 with ladder programming
Cycle time	6...90 ms
Clock drift	12 min/year at 0-55 °C
Checks	program memory on each power up
[us] rated supply voltage	12 V DC
Supply voltage limits	10.4...14.4 V
Reverse polarity protection	with
Discrete input number	4 conforming to IEC 61131-2 Type 1
Discrete input type	resistive
Discrete input voltage	12 V DC
Discrete input current	4 mA
Counting frequency	1 kHz for discrete input
Voltage state 1 guaranteed	>= 7 V for IB...IG used as discrete input circuit >= 5.6 V for I1...IA and IH...IR discrete input circuit
Voltage state 0 guaranteed	<= 3 V for IB...IG used as discrete input circuit <= 2.4 V for I1...IA and IH...IR discrete input circuit
Current state 1 guaranteed	>= 2 mA (I1...IA and IH...IR discrete input circuit) >= 0.5 mA (IB...IG used as discrete input circuit)
Current state 0 guaranteed	<= 0.2 mA (IB...IG used as discrete input circuit) <= 0.9 mA (I1...IA and IH...IR discrete input circuit)
Input compatibility	3-wire proximity sensors PNP for discrete input
Input impedance	14 kOhm for IB...IG used as discrete input circuit 2.7 kOhm for I1...IA and IH...IR discrete input circuit
Number of outputs	2 relay
Output voltage limits	24...250 V AC (relay output) 5...30 V DC (relay output)
Contacts type and composition	NO for relay output
Output thermal current	8 A for all 2 outputs for relay output
Switching capacity in ma	>= 10 mA at 12 V (relay output)
Operating rate in hz	0.1 Hz (at Ie) for relay output 10 Hz (no load) for relay output
[uimp] rated impulse withstand voltage	4 kV conforming to EN/IEC 60947-1 and EN/IEC 60664-1
Response time	10 ms (from state 0 to state 1) for relay output 5 ms (from state 1 to state 0) for relay output
Tightening torque	0.5 N.m
Overvoltage category	III conforming to IEC 60664-1
Disturbance radiated/conducted	class B conforming to EN 55022-11 group 1
Pollution degree	2 conforming to IEC 61131-2
Operating altitude	2000 m
Maximum altitude transport	3048 m
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	5.900 cm
Package 1 width	6.500 cm
Package 1 length	10.900 cm
Package 1 weight	117.000 g
Unit type of package 2	S03
Number of units in package 2	48
Package 2 height	30.000 cm
Package 2 width	30.000 cm
Package 2 length	40.000 cm
Package 2 weight	6.125 kg
Green premium status for reporting	Green Premium product
Total lifecycle carbon footprint	79 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	14.7196617647
Carbon footprint of the manufacturing phase [a1 to a3]	15 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.0148377059
Carbon footprint of the distribution phase [a4]	0 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.0008484294
Carbon footprint of the installation phase [a5]	0 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	64.38
Carbon footprint of the use phase [b2, b3, b4, b6]	64 kg CO2 eq.
Sustainable packaging	Yes
Carbon footprint of the end-of-life phase [c1 to c4]	0.0908195588
Carbon footprint of the end-of-life phase [c1 to c4]	0.1 kg CO2 eq.
Pvc free	Yes
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	79.2061674588
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	Yes
Packaging without single use plastic	Yes
Scip number	ab7a5df6-4d23-4fb1-96de-7c15d64130aa
China rohs label	5
Pvc free	Yes
End of life manual availability	ENVEOLI2011013EN
Take-back	No
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Warranty (in months)	18
