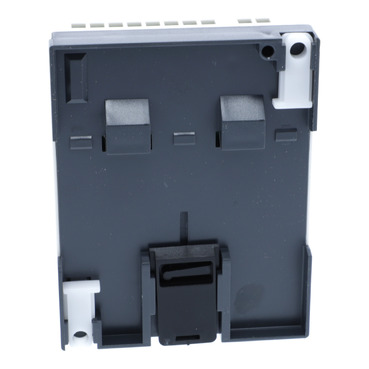

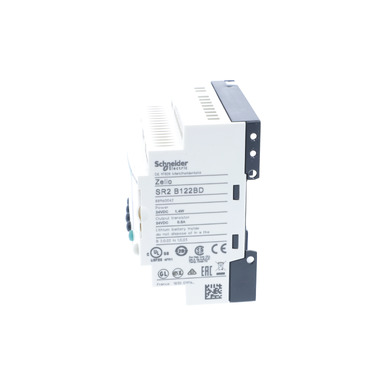

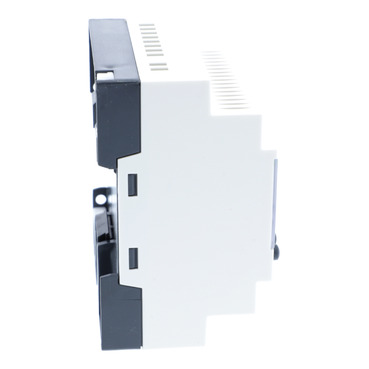

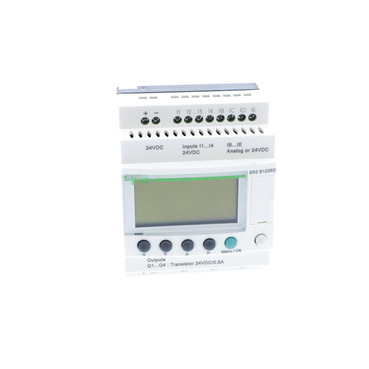

Zelio Logic Compact smart relay 12 I/O, 24V DC, clock, display

Item Number: SR2B122BD

1 PCE 0

Where To Buy

Datasheet

Download

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	3389110547610	-

Specifications

Design

Range of product

Zelio Logic

Product or component type

compact smart relay

Warranty

18 months

Physical

Backup time

10 years at 25 °C

Operating distance

10 m between stations, with screened cable (sensor not isolated) for analogue input circuit

Connections - terminals

screw terminals, 1 x 0.2...1 x 2.5 mm² (AWG 25...AWG 14) semi-solid
screw terminals, 1 x 0.2...1 x 2.5 mm² (AWG 25...AWG 14) solid
screw terminals, 1 x 0.25...1 x 2.5 mm² (AWG 24...AWG 14) flexible with cable end
screw terminals, 2 x 0.2...2 x 1.5 mm² (AWG 24...AWG 16) solid
screw terminals, 2 x 0.25...2 x 0.75 mm² (AWG 24...AWG 18) flexible with cable end

Net weight

0.22 kg

Product certifications

C-Tick
UL
GL
CSA
GOST

Standards

IEC 60068-2-6 Fc
IEC 61000-4-12
IEC 60068-2-27 Ea
IEC 61000-4-6 level 3
IEC 61000-4-4 level 3
IEC 61000-4-5
IEC 61000-4-11
IEC 61000-4-3
IEC 61000-4-2 level 3

Ip degree of protection

IP20 (terminal block) conforming to IEC 60529
IP40 (front panel) conforming to IEC 60529

Environmental characteristic

EMC directive conforming to IEC 61000-6-2
EMC directive conforming to IEC 61000-6-3
EMC directive conforming to IEC 61000-6-4
EMC directive conforming to IEC 61131-2 zone B
low voltage directive conforming to IEC 61131-2

Ambient air temperature for operation

-20...40 °C in non-ventilated enclosure conforming to IEC 60068...2-1 and IEC 60068...2-2
-20...55 °C conforming to IEC 60068...2-1 and IEC 60068...2-2

Ambient air temperature for storage

-40...70 °C

Relative humidity

95 % without condensation or dripping water

Mercury free

Yes

Rohs exemption information

Yes

Environmental disclosure

ENVPEP060406EN

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Reach regulation

Reference contains Substances of Very High Concern above the threshold

China rohs regulation

California proposition 65

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Others

Average percentage of recycled plastic content

0 %

Package 2 bare product quantity

Package 1 bare product quantity

Legacy weee scope

At least in Europe

Weee label

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Local display

with

Number or control scheme lines

0...240 with ladder programming
0...500 with FBD programming

Cycle time

6...90 ms

Clock drift

12 min/year at 0-55 °C
6 s/month at 25-25 °C

Checks

program memory on each power up

[us] rated supply voltage

24 V DC

Supply voltage limits

19.2...30 V

Maximum supply current

100 mA (without extension)

Power dissipation in w

3 W without extension

Reverse polarity protection

with

Discrete input number

8 conforming to IEC 61131-2 Type 1

Discrete input type

resistive

Discrete input voltage

24 V DC

Discrete input current

4 mA

Counting frequency

1 kHz for discrete input

Voltage state 1 guaranteed

>= 15 V for I1...IA and IH...IR discrete input circuit
>= 15 V for IB...IG used as discrete input circuit

Voltage state 0 guaranteed

<= 5 V for I1...IA and IH...IR discrete input circuit
<= 5 V for IB...IG used as discrete input circuit

Current state 1 guaranteed

>= 1.2 mA (IB...IG used as discrete input circuit)
>= 2.2 mA (I1...IA and IH...IR discrete input circuit)

Current state 0 guaranteed

<= 0.75 mA (I1...IA and IH...IR discrete input circuit)

Input compatibility

3-wire proximity sensors PNP for discrete input

Analogue input number

Analogue input type

common mode

Analogue input range

0...24 V
0...10 V

Temperature probe type

NTC 10k at 25 °C
NTC 1000k at 25 °C
KTY81 210/220/221/222/250
Pt 500

Maximum permissible voltage

30 V for analogue input circuit

Analogue input resolution

8 bits

Lsb value

39 mV for analogue input circuit

Conversion time

smart relay cycle time for analogue input circuit

Conversion error

+/- 5 % at 25 °C for analogue input circuit
+/- 6.2 % at 55 °C for analogue input circuit

Repeat accuracy

+/- 2 % at 55 °C for analogue input circuit

Input impedance

12 kOhm for IB...IG used as analogue input circuit
12 kOhm for IB...IG used as discrete input circuit
7.4 kOhm for I1...IA and IH...IR discrete input circuit

Number of outputs

4 transistor

Output voltage

24 V transistor output

Output voltage limits

19.2...30 V DC (transistor output)

Load current

0.5...0.625 A transistor output

[ures] residual voltage

2 V at state 1 transistor output

Overload protection

with overload protection for transistor output

Short-circuit protection

with transistor output

Overvoltage protection

with overvoltage protection for transistor output

Clock

with

Response time

<= 1 ms (from state 0 to state 1) for transistor output
<= 1 ms (from state 1 to state 0) for transistor output

Tightening torque

0.5 N.m

Overvoltage category

III conforming to IEC 60664-1

Immunity to microbreaks

1 ms

Disturbance radiated/conducted

class B conforming to EN 55022-11 group 1

Pollution degree

2 conforming to IEC 61131-2

Operating altitude

2000 m

Maximum altitude transport

3048 m

Unit type of package 1

PCE

Number of units in package 1

Package 1 height

6.900 cm

Package 1 width

9.000 cm

Package 1 length

10.000 cm

Package 1 weight

208.000 g

Unit type of package 2

S03

Number of units in package 2

Package 2 height

30.000 cm

Package 2 width

30.000 cm

Package 2 length

40.000 cm

Package 2 weight

6.720 kg

Green premium status for reporting

Green Premium product

Total lifecycle carbon footprint

72 kg CO2 eq.

Carbon footprint of the manufacturing phase [a1 to a3]

25.481381067581182

Carbon footprint of the manufacturing phase [a1 to a3]

25 kg CO2 eq.

Carbon footprint of the distribution phase [a4]

0.4129471181915885

Carbon footprint of the distribution phase [a4]

0.4 kg CO2 eq.

Carbon footprint of the installation phase [a5]

0.03908882836500618

Carbon footprint of the installation phase [a5]

0 kg CO2 eq.

Carbon footprint of the use phase [b2, b3, b4, b6]

45.556500233726965

Carbon footprint of the use phase [b2, b3, b4, b6]

46 kg CO2 eq.

Sustainable packaging

Yes

Carbon footprint of the end-of-life phase [c1 to c4]

0.5209028275928849

Carbon footprint of the end-of-life phase [c1 to c4]

0.5 kg CO2 eq.

Pvc free

Yes

Take-back

Product contributes to saved and avoided emissions

Total lifecycle carbon footprint

72.01082007545763

Average percentage of recycled metal content

0 %

Packaging made with recycled cardboard

Yes

Packaging without single use plastic

Yes

Scip number

eee2fc35-1620-4b70-b1d5-206e9240044e

Pvc free

Yes

End of life manual availability

ENVEOLI0604006EN

Take-back

Weee label

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Warranty (in months)
