Thalassa Wall mounting lugs Thalassa PLS, Stainless Steel, Set of 4

Item Number: NSYPF27X

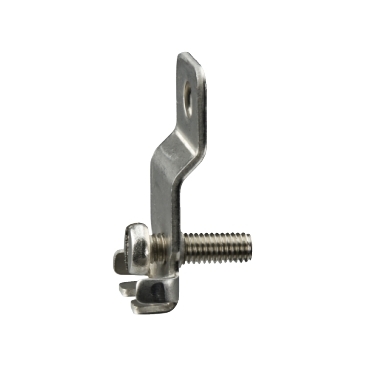

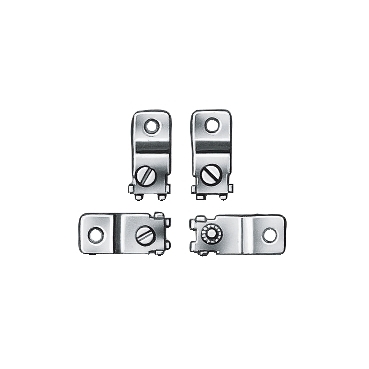

Thalassa PLS Stainless steel wall mounting lugs for PLS box. W100XD100 mm. Multi-purpose application. Fixing mode by screwed - from the outside location. Mounting location on top and bottom, on rear of the enclosure. 4 lugs. Made in stainless steel.

Where To Buy

Datasheet

PDF datasheet

Download

Product Dimensions

Width icon

Width100 mm

Height icon

Height0 mm

Depth icon

Depth100 mm

See full specifications

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range

PanelSeT

Product destination

box

Product or component type

wall fixing support

Device application

multi-purpose

Colour

stainless steel

Surface finish

zinc coated

Warranty

18 months

Physical

Mounting support

lug

Range compatibility

PanelSeT PLS

Quantity per set

set of 4

Fixing mode

screwed - from the outside location

Height

0 mm

Width

100 mm

Depth

100 mm

Reach free of svhc

Yes

Toxic heavy metal free

Yes

Mercury free

Yes

Rohs exemption information

Yes

Environmental disclosure

ENVPEP1107004EN

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Reach regulation

Free of Substances of Very High Concern above the threshold

Reach regulation

Free of Substances of Very High Concern above the threshold

China rohs regulation

Product out of China RoHS scope

Eu rohs directive

Compliant

China rohs regulation

Pro-active China RoHS declaration (out of China RoHS legal scope)

Material

Device composition

  • fixing elements
  • 4 lug

Material

stainless steel

Others

Life cycle assessment data

No

If one of the deliverables is not relevant please give the reason

Accessory

Legacy weee scope

Out

Package 1 bare product quantity

1

Average percentage of recycled plastic content

0 %

At least in Europe

Warranty duration(in months) bmecat

18

Weee label

No

Product specific application

for modular equipment

Accessory / separate part category

fixing accessory

Enclosure nominal dimensions

-

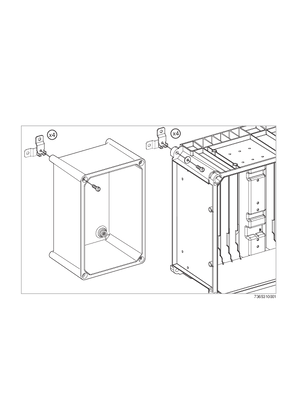

Mounting location

top and bottom, on rear of the enclosure

Installation accessory type

wall-mounting

Permanent permissible load

0 kg

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

2.000 cm

Package 1 width

12.000 cm

Package 1 length

8.000 cm

Package 1 weight

88.000 g

Green premium status for reporting

Green Premium product

Sustainable packaging

No

Energy efficiency optimized

False

F-gas free

N/A

Updatability

N/A

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A

Average percentage of recycled metal content

0 %

Packaging made with recycled cardboard

No

Packaging without single use plastic

No

China rohs label

1

End of life manual availability

N/A

Take-back

No

Warranty (in months)

18
Show all specifications
