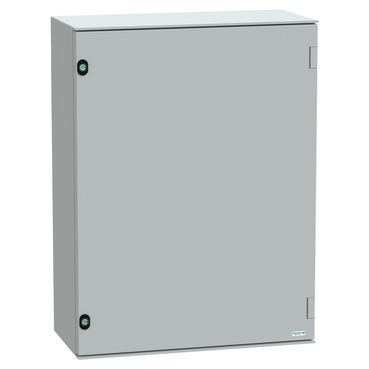

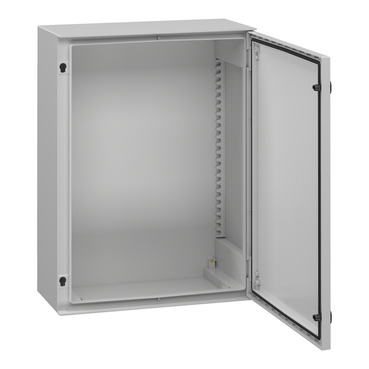

Thalassa Wall mounted polyester enclosure Thalassa PLM, plain door, 847x636x300mm, IP66, IK10, RAL 7035

Item Number: NSYPLM86G

1 PCE 0

Where To Buy

Datasheet

Download

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	3606480776755	-

Specifications

Design

Range	PanelSeT
Device application	multi-purpose
Product or component type	compact enclosure
Colour	grey (RAL 7035)
Warranty	18 months

Physical

Standards	IEC 62208 NEMA classification 4X NEMA classification 13
Product certifications	UL
Electrical insulation class	class II
Ip degree of protection	IP66 conforming to IEC 60529
Ik degree of protection	IK10 conforming to IEC 62262
Ambient air temperature for operation	-40...80 °C
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP2405006_V1
Reach regulation	Reference contains Substances of Very High Concern above the threshold
China rohs regulation	X
Eu rohs directive	Compliant By Exemption

Material

Device composition	1 body 1 door 2 lock
Material	polyester reinforced with fibreglass

Others

Average percentage of recycled plastic content	37 %
Package 2 bare product quantity	4
Package 1 bare product quantity	1
Warranty duration(in months) bmecat	18
Weee label	No
Legacy weee scope	Out
	At least in Europe
Device short name	PLM
Enclosure nominal height	847 mm
Enclosure nominal width	636 mm
Enclosure nominal depth	300 mm
Enclosure mounting	wall mounted
Door type	plain
Lock type	3 mm double-bar lock
Number of locks	2
Mounting plate description	without mounting plate
Accessibility for operation	front
Removable parts	door by hinges
Fire resistance	960 °C conforming to IEC 62208
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	33.000 cm
Package 1 width	65.500 cm
Package 1 length	92.500 cm
Package 1 weight	16.800 kg
Unit type of package 2	PAM
Number of units in package 2	4
Package 2 height	122.200 cm
Package 2 width	100.000 cm
Package 2 length	120.000 cm
Package 2 weight	81.200 kg
Green premium status for reporting	Green Premium product
Total lifecycle carbon footprint	131 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	59.38740676444834
Carbon footprint of the manufacturing phase [a1 to a3]	59 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	33.35342108470521
Carbon footprint of the distribution phase [a4]	33 kg CO2 eq.
Carbon footprint of the installation phase [a5]	4.0108145937036666
Carbon footprint of the installation phase [a5]	4 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	0
Carbon footprint of the use phase [b2, b3, b4, b6]	0 kg CO2 eq.
Sustainable packaging	No
Carbon footprint of the end-of-life phase [c1 to c4]	34.17772745428518
Carbon footprint of the end-of-life phase [c1 to c4]	34 kg CO2 eq.
Pvc free	Yes
Silicone-free	Yes
Energy efficiency optimized	False
F-gas free	N/A
Updatability	N/A
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	130.9293698971424
Average percentage of recycled plastic content	37 %
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	Yes
Packaging without single use plastic	No
Scip number	99f2be40-a7ec-45c9-92ab-ac3b5680e562
China rohs label	7
Pvc free	Yes
Silicone-free	Yes
End of life manual availability	N/A
Take-back	No
Warranty (in months)	18
