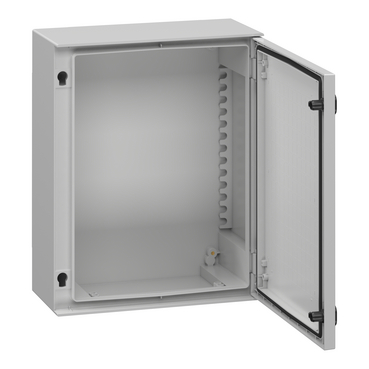

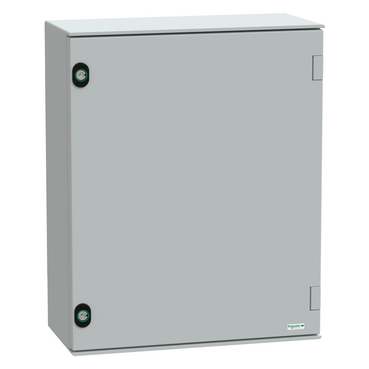

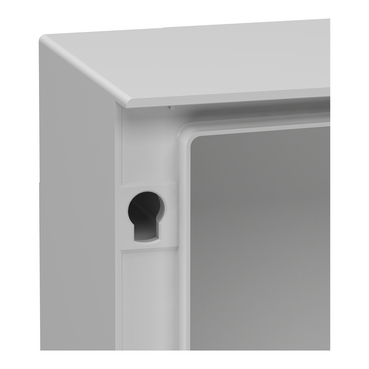

Thalassa Wall mounted polyester enclosure Thalassa PLM, plain door, 530x430x200mm, IP66, IK10, RAL 7035

Item Number: NSYPLM54G

1 PCE 0

Where To Buy

Datasheet

Download

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	3606480776571	-

Specifications

Design

Range	PanelSeT
Device application	multi-purpose
Product or component type	compact enclosure
Colour	grey (RAL 7035)
Warranty	18 months

Physical

Standards	IEC 62208 NEMA classification 13 NEMA classification 4X
Product certifications	UL
Electrical insulation class	class II
Ip degree of protection	IP66 conforming to IEC 60529
Ik degree of protection	IK10 conforming to IEC 62262
Ambient air temperature for operation	-40...80 °C
Mercury free	Yes
Rohs exemption information	Yes

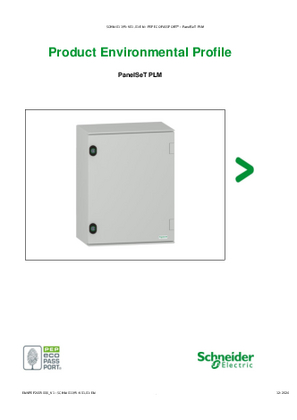

Environmental disclosure	ENVPEP2405006_V1
Reach regulation	Reference contains Substances of Very High Concern above the threshold
China rohs regulation	X
Eu rohs directive	Compliant By Exemption

Material

Device composition	1 body 1 door 2 lock
Material	polyester reinforced with fibreglass

Others

Legacy weee scope	Out
	At least in Europe
Average percentage of recycled plastic content	37 %
Package 2 bare product quantity	20
Package 1 bare product quantity	1
Warranty duration(in months) bmecat	18
Weee label	No
Device short name	PLM
Enclosure nominal height	530 mm
Enclosure nominal width	430 mm
Enclosure nominal depth	200 mm
Enclosure mounting	wall mounted
Door type	plain

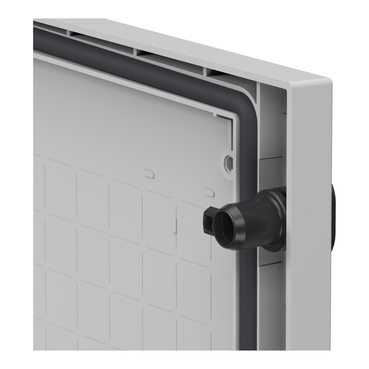

Lock type	3 mm double-bar lock
Number of locks	2
Mounting plate description	without mounting plate
Accessibility for operation	front
Removable parts	door by hinges
Fire resistance	960 °C conforming to IEC 62208
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	22.500 cm
Package 1 width	45.500 cm
Package 1 length	59.000 cm
Package 1 weight	7.200 kg
Unit type of package 2	PAM
Number of units in package 2	20
Package 2 height	129.000 cm
Package 2 width	100.000 cm
Package 2 length	120.000 cm
Package 2 weight	159.000 kg
Green premium status for reporting	Green Premium product
Total lifecycle carbon footprint	56 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	25.45174575619215
Carbon footprint of the manufacturing phase [a1 to a3]	25 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	14.29432332201652
Carbon footprint of the distribution phase [a4]	14 kg CO2 eq.
Carbon footprint of the installation phase [a5]	1.7189205401587142
Carbon footprint of the installation phase [a5]	2 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	0
Carbon footprint of the use phase [b2, b3, b4, b6]	0 kg CO2 eq.
Sustainable packaging	No
Carbon footprint of the end-of-life phase [c1 to c4]	14.647597480407937
Carbon footprint of the end-of-life phase [c1 to c4]	15 kg CO2 eq.
Pvc free	Yes
Silicone-free	Yes
Energy efficiency optimized	False
F-gas free	N/A
Updatability	N/A
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	56.11258709877532
Average percentage of recycled plastic content	37 %
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	Yes
Packaging without single use plastic	No
Scip number	2afadc3c-d04d-4184-9d1f-3abc2fc1a548
China rohs label	7
Pvc free	Yes
Silicone-free	Yes
End of life manual availability	N/A
Take-back	No
Warranty (in months)	18

Show all specifications

Documents & downloads

All
CAD Files and Packs
Environmental Disclosure
Installation Instruction
Technical illustration
Declaration of Conformity
Certificates (MSDS)
Declaration of Conformity (Sustainability)

Important: Some software files may need a mySchneider or Club login to download.

ZIP

PanelSeT PLM WM PLM plain 43x20x53mm - Image - 3D CAD

VERSION

1.0

DATE

25 Apr 2025

REVISION

1.0

DOWNLOAD (ZIP) 2.7 MB

ZIP

PanelSeT PLM

VERSION

1.0

DATE

25 Feb 2026

REVISION

1.0

DOWNLOAD (ZIP) 356.9 KB

ZIP

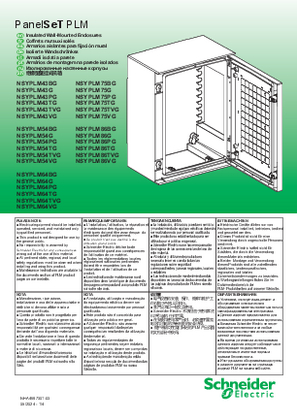

PanelSeT PLM - Insulated Wall-Mounted Enclosures NSYPLM43/54/64/75/86 - Instruction Sheet

VERSION

1.0

DATE

19 Dec 2024

REVISION

1.0

DOWNLOAD (ZIP) 2.6 MB

ZIP

PanelSeT PLM - WM PLM plain 43x20x53mm - Dimensions

VERSION

1.0

DATE

08 Apr 2025

REVISION

1.0

DOWNLOAD (ZIP) 3.8 MB

ZIP

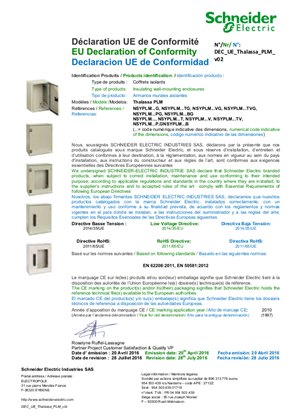

UE_DEC_OF_CONF_THALASSA_PLM
