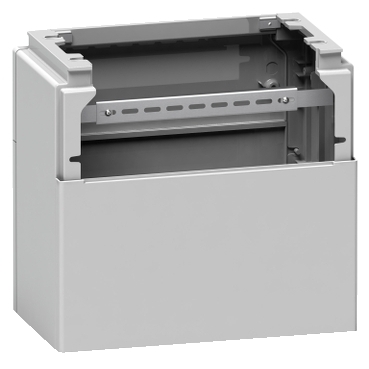

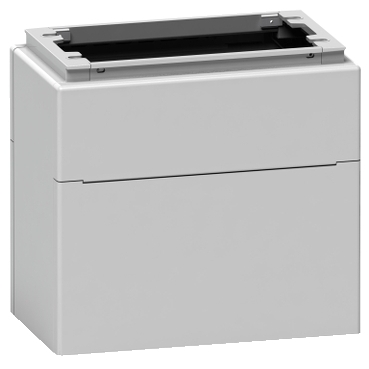

Thalassa Polyester glassreinforced plinth for enclosure PLAZ(T)53 front opening IP44-IK10 RAL7035
Item Number: NSYZZ553G

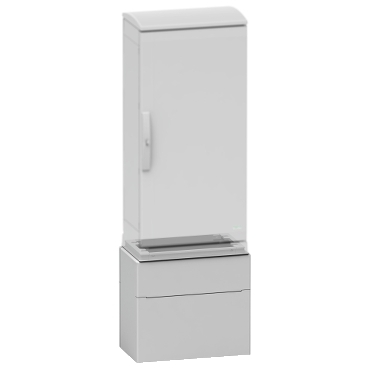

Plinth to be used with Thalassa PLA enclosures The plinth is to be used in multi-purpose applications The width is 535mm The height is 500mm The depth is 310mm The kit is made of fixing elements, 2 front panels and 2 side parts The product is made of grey Material : Plastic (RAL 7035) Ingress protection rating is IP44 Mechanical protection rating is IK10
Specifications
Design
| Range | PanelSeT |
|---|---|
| Product or component type | plinth |
| Device application | multi-purpose |
| Colour | plinth: grey (RAL 7035) |
| Warranty | 18 months |
Physical
| Range compatibility | PanelSeT PLA |
|---|---|
| Fixing mode | by screws - on side parts location |
| Height | 500 mm |
| Width | 535 mm |
| Depth | 310 mm |
| Ip degree of protection | IP44 |
| Ik degree of protection | IK10 |
| Mercury free | Yes |
| Rohs exemption information | Yes |
| Environmental disclosure | ENVPEP1109021EN |
| Reach regulation | Reference contains Substances of Very High Concern above the threshold |
| China rohs regulation | X |
| Eu rohs directive | Compliant By Exemption |
Material
| Device composition |
|
|---|
Documents & downloads
-
All
-
CAD Files and Packs
-
Environmental Disclosure
-

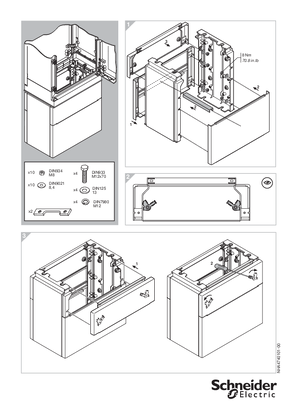

Installation Instruction
-
