Thalassa Polyamid wall mounting lugs for PLM32, set of 4

Home ProductsIndustrialThalassaPolyamid wall mounting lugs

Thalassa Polyamid wall mounting lugs for PLM32, set of 4

Item Number: NSYPFPLM32G

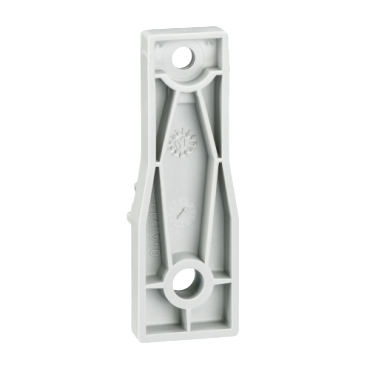

Set of 4 polyamide wall mounting lugs for Thalassa PLM32. This accessory have multi-purpose application : top, bottom and rear mounting are possible. Permanent permissible load is 10 kg vertical and horizontal position. The lugs are made from polyamide 6 with 30 % fiber glass.. The color is grey RAL 7035. Fixings are delivered with the lugs.

Where To Buy

Datasheet

PDF datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range

PanelSeT

Product or component type

wall fixing support

Device application

multi-purpose

Colour

grey (RAL 7035)

Warranty

18 months

Physical

Range compatibility

PanelSeT PLM

Fixing mode

screwed - from the outside location

Length

160 mm

Height

310 mm

Width

215 mm

Mercury free

Yes

Rohs exemption information

Yes

Environmental disclosure

ENVPEP110118EN

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Reach regulation

Reference contains Substances of Very High Concern above the threshold

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Material

Device composition

  • fixing screws
  • 4 lug

Material

polyamide 6 with 30 % fibre glass

Others

Life cycle assessment data

No

If one of the deliverables is not relevant please give the reason

Accessory

Legacy weee scope

Out

Package 1 bare product quantity

1

Package 2 bare product quantity

50

Package 3 bare product quantity

3000

Weee label

No

At least in Europe

Average percentage of recycled plastic content

0 %

Accessory / separate part category

fixing accessory

Enclosure nominal dimensions

-

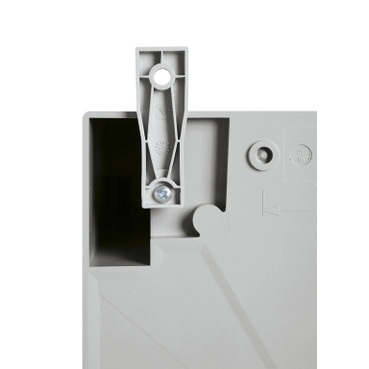

Mounting location

top and bottom, on rear of the enclosure

Permanent permissible load

  • 100 kg horizontal position
  • 200 kg vertical position

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

2.000 cm

Package 1 width

10.000 cm

Package 1 length

12.000 cm

Package 1 weight

12.000 g

Unit type of package 2

CAR

Number of units in package 2

50

Package 2 height

23.000 cm

Package 2 width

19.000 cm

Package 2 length

32.000 cm

Package 2 weight

648.000 g

Unit type of package 3

PAM

Number of units in package 3

3000

Package 3 height

105.000 cm

Package 3 width

100.000 cm

Package 3 length

120.000 cm

Package 3 weight

56.000 kg

Green premium status for reporting

Green Premium product

Sustainable packaging

No

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A

Average percentage of recycled metal content

0 %

Packaging made with recycled cardboard

No

Packaging without single use plastic

No

Scip number

2afadc3c-d04d-4184-9d1f-3abc2fc1a548

End of life manual availability

N/A

Take-back

No

Warranty (in months)

18
