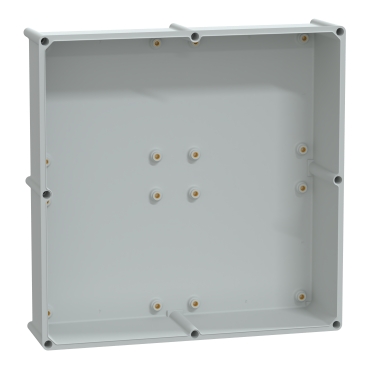

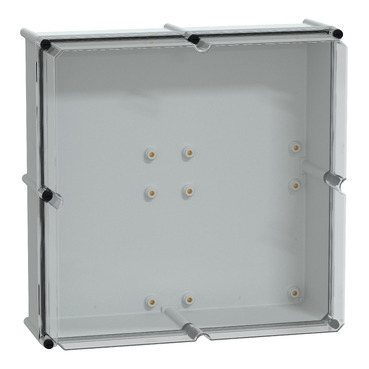

Thalassa PLS box polyester rear, transparent PC cover IP66 54x54x23cm
Item Number: NSYPLS5454AG
Thalassa PLS box polyester rear with transparent PC cover. 540 x 540 x 230 mm. Insulating modular box. One piece moulded body. Wall mounted. High transparent cover, cover locking screw removable. Polyester reinforced with fibreglass rear, polycarbonate cover. Grey RAL 7035. IP65, IK09, NEMA (13,4X) 960°C fire resistance. Insulation Class II.
Datasheet
Specifications
Design
| Range | PanelSeT |
|---|---|
| Device application | multi-purpose |
| Product or component type | insulating modular box |
| Colour | body: grey (RAL 7035) |
| Warranty | 18 months |
Physical
| Standards |
|
|---|---|
| Product certifications | UL |
| Electrical insulation class | class II |
| Ip degree of protection | IP66 conforming to IEC 60529 |
| Ik degree of protection | IK09 conforming to IEC 62262 |
| Ambient air temperature for storage | -30...70 °C |
| Mercury free | Yes |
| Rohs exemption information | Yes |
| Environmental disclosure | ENVPEP1107004EN |
| Reach regulation | Reference contains Substances of Very High Concern above the threshold |
| China rohs regulation | X |
| Eu rohs directive | Compliant By Exemption |
| California proposition 65 | WARNING: This product can expose you to chemicals including: Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
Material
| Device composition |
|
|---|---|
| Material |
|
