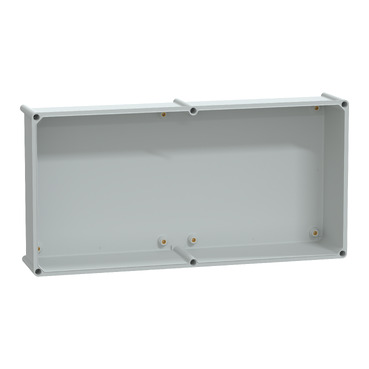

Thalassa PLS box polyester rear, transparent PC cover IP66 36x72x23cm

Item Number: NSYPLS3672AG

1 PCE 0

Thalassa PLS box polyester rear with transparent PC cover. 360 x 720 x 230 mm. Insulating modular box. One piece moulded body. Wall mounted. High transparent cover, cover locking screw removable. Polyester reinforced with fibreglass rear, polycarbonate cover. Grey RAL 7035. IP65, IK09, NEMA (13,4X) 960°C fire resistance. Insulation Class II.

Where To Buy

Datasheet

Download

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	3606480777011	-

Specifications

Design

Range	PanelSeT
Device application	multi-purpose
Product or component type	insulating modular box
Colour	body: grey (RAL 7035)
Warranty	18 months

Physical

Standards	NEMA classification 13 NEMA 4X IEC 62208
Product certifications	UL
Electrical insulation class	class II
Ip degree of protection	IP66 conforming to IEC 60529
Ik degree of protection	IK09 conforming to IEC 62262
Ambient air temperature for storage	-30...70 °C
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP1107004EN
Reach regulation	Reference contains Substances of Very High Concern above the threshold
China rohs regulation	X
Eu rohs directive	Compliant By Exemption
California proposition 65	WARNING: This product can expose you to chemicals including: Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Material

Device composition	1 cover: on enclosure 1 rear part: on enclosure locking screws
Material	cover: polycarbonate rear: polyester reinforced with fibreglass

Others

Average percentage of recycled plastic content	0 %
Package 2 bare product quantity	20
Package 1 bare product quantity	1
Legacy weee scope	Out
	At least in Europe
Warranty duration(in months) bmecat	18
Weee label	No
Product name	PanelSeT PLS
Device short name	PLS
Enclosure nominal height	360 mm
Enclosure nominal width	720 mm
Enclosure nominal depth	230 mm
Enclosure mounting	wall mounted
Body type	one piece moulded
Type of front cover	high transparent cover
Lock type	slot screw
Removable parts	cover locking screw
Fire resistance	960 °C conforming to IEC 62208
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	74.000 cm
Package 1 width	28.000 cm
Package 1 length	26.000 cm
Package 1 weight	5.510 kg
Unit type of package 2	PAM
Number of units in package 2	20
Package 2 height	167.000 cm
Package 2 width	100.000 cm
Package 2 length	120.000 cm
Package 2 weight	123.000 kg
Green premium status for reporting	Green Premium product
Total lifecycle carbon footprint	56 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	32.252375456105156
Carbon footprint of the manufacturing phase [a1 to a3]	32 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	10.93912798670987
Carbon footprint of the distribution phase [a4]	11 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.7182201145553729
Carbon footprint of the installation phase [a5]	0.7 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	0
Carbon footprint of the use phase [b2, b3, b4, b6]	0 kg CO2 eq.
Sustainable packaging	No
Carbon footprint of the end-of-life phase [c1 to c4]	11.84413983699751
Carbon footprint of the end-of-life phase [c1 to c4]	12 kg CO2 eq.
Energy efficiency optimized	False
F-gas free	N/A
Updatability	N/A
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	55.75386339436791
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	No
Packaging without single use plastic	No
Scip number	a18cb304-12b9-4d34-8ea6-7f2f757726a8
China rohs label	7
End of life manual availability	N/A
Take-back	No
Warranty (in months)	18

Show all specifications
