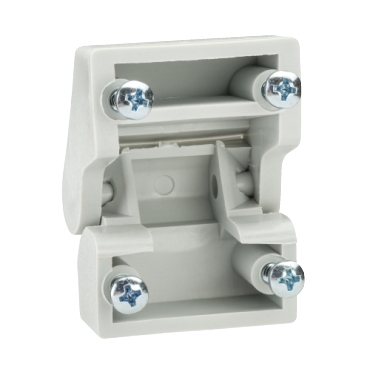

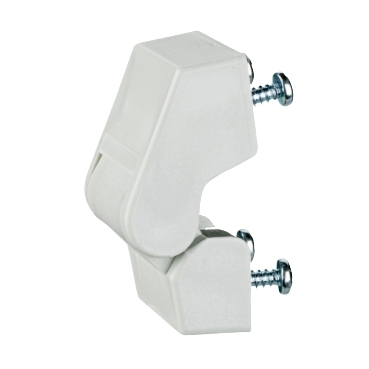

Thalassa Plastic external hinges for PLS box, Set of 2

Item Number: NSYBE27G

1 PCE 0

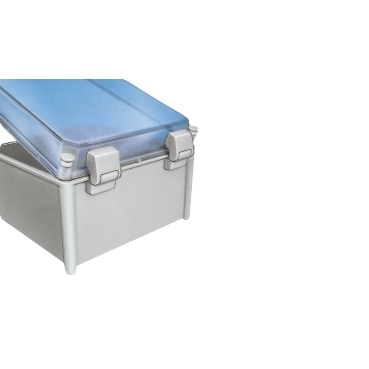

Thalassa PLS external hinges for PLS box. Multi-purpose application. Fixing mode by element - between rear and cover location. Set of 2 plastic. Made in plastic.

Where To Buy

Datasheet

Download

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	3606480773709	-

Specifications

Design

Range	PanelSeT
Product or component type	hinge
Device application	multi-purpose
Colour	grey (RAL 7035)
Warranty	18 months

Physical

Range compatibility	PanelSeT PLS modular boxes
Quantity per set	set of 2
Fixing mode	by fixing element - between rear and cover location
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP1109021EN
Eu rohs directive	Compliant By Exemption
California proposition 65	WARNING: This product can expose you to chemicals including: Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Material

Device composition	fixing elements 2 x hinge
Material	plastic

Others

	At least in Europe
Warranty duration(in months) bmecat	18
Average percentage of recycled plastic content	0 %
Package 2 bare product quantity	1600
Package 1 bare product quantity	2
Legacy weee scope	Out
Weee label	No
Enclosure nominal dimensions	-
Operating angle	180 °
Opening mechanism	external
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	2.500 cm
Package 1 width	10.000 cm
Package 1 length	10.000 cm
Package 1 weight	71.000 g
Unit type of package 2	PAM
Number of units in package 2	800
Package 2 height	100.000 cm
Package 2 width	100.000 cm
Package 2 length	120.000 cm
Package 2 weight	150.000 kg
Green premium status for reporting	Green Premium product
Sustainable packaging	No
Energy efficiency optimized	False
F-gas free	N/A
Updatability	N/A
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	No
Packaging without single use plastic	No
Scip number	a18cb304-12b9-4d34-8ea6-7f2f757726a8
End of life manual availability	N/A
Take-back	No
Warranty (in months)	18

Show all specifications

Documents & downloads

All
CAD Files and Packs
Environmental Disclosure
Installation Instruction
Declaration of Conformity (Sustainability)

Important: Some software files may need a mySchneider or Club login to download.

Colour ()

Thalassa Plastic external hinges for PLS box, Set of 2

Item Number: NSYBE27G

Colour ()

Datasheet

Barcode

Specifications

Documents & downloads

All

CAD Files and Packs

Environmental Disclosure

Installation Instruction

Declaration of Conformity (Sustainability)

PanelSeT PLS - NSYBE27G - Set of 2 plastic external hinges for PLS box - 3D CAD

Thalassa Accessories - Plinths Polyester

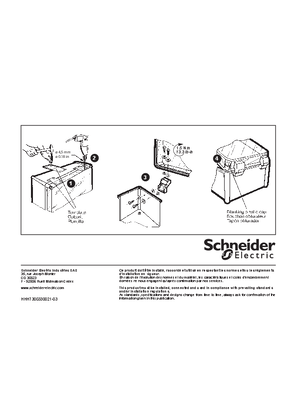

PanelSeT PLS - External hinges PLS - Instruction sheet
