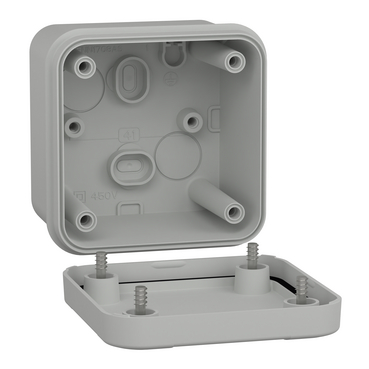

Thalassa PC box IP66 IK08 RAL7035 Int.H65W65D45 Ext.H74W74D56 opaque PC cover H10
Item Number: NSYTBP775
Specifications
Design
| Range | PanelSeT |
|---|---|
| Device application | multi-purpose |
| Product or component type | industrial box |
| Colour | grey (RAL 7035) |
| Warranty | 18 months |
Physical
| Height | 74 mm |
|---|---|
| Width | 74 mm |
| Depth | 54 mm |
| Quantity per set | set of 5 |
| Standards |
|
| Product certifications |
|
| Electrical insulation class | class II |
| Net weight | 0.076 kg |
| Ip degree of protection | IP66 conforming to NEMA 4.4X |
| Ik degree of protection | IK08 conforming to IEC 62262 |
| Ambient air temperature for storage | -15...60 °C |
| Ambient air temperature for operation | -25...80 °C |
| Reach free of svhc | Yes |
| Toxic heavy metal free | Yes |
| Mercury free | Yes |
| Rohs exemption information | Yes |
| Environmental disclosure | ENVPEP2012016EN |
| Reach regulation | Free of Substances of Very High Concern above the threshold |
| China rohs regulation | Product out of China RoHS scope |
| Eu rohs directive | Compliant |
Material
| Device composition |
|
|---|---|
| Material | polycarbonate |
