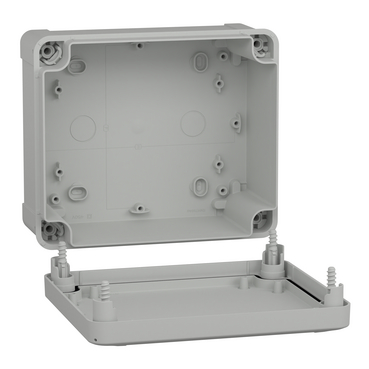

Thalassa, PC box, IP66 IK08 RAL7035 Int.H175W150D80 Ext.H193W164D87 Opaque PC cover H20

Thalassa, PC box, IP66 IK08 RAL7035 Int.H175W150D80 Ext.H193W164D87 Opaque PC cover H20

Item Number: NSYTBP19168

Datasheet

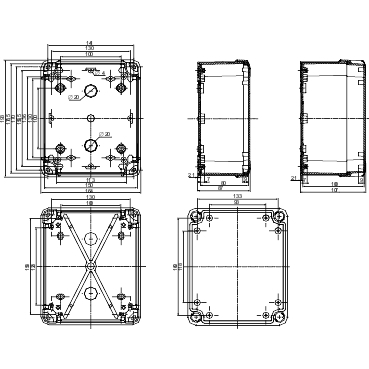

Product Dimensions

Width icon

Width164 mm

Height icon

Height192 mm

Depth icon

Depth87 mm

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range

Thalassa

Device application

multi-purpose

Product or component type

industrial box

Colour

grey (RAL 7035)

Warranty

18 months

Physical

Height

192 mm

Width

164 mm

Depth

87 mm

Standards

IEC 62208|UL 508 A

Product certifications

TÜV|UL

Electrical insulation class

class II

Net weight

0.45 kg

Ip degree of protection

IP66 conforming to NEMA 4.4X

Ik degree of protection

IK08 conforming to IEC 62262

Ambient air temperature for storage

-15...60 °C

Ambient air temperature for operation

-25...80 °C

Reach regulation

Free of Substances of Very High Concern above the threshold

Reach free of svhc

Yes

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Toxic heavy metal free

Yes

Mercury free

Yes

China rohs regulation

 Pro-active China RoHS declaration (out of China RoHS legal scope)

Rohs exemption information

Yes

Environmental disclosure

ENVPEP2012016EN

Circularity profile

ENVEOLI2012016EN

Material

Device composition

1 body|1 cover|4 cover screw

Material

polycarbonate

Others

Package 3 bare product quantity

240

Package 2 bare product quantity

20

Package 1 bare product quantity

1

Product name

Thalassa TBP

Internal height

175 mm

Internal width

150 mm

Internal depth

80 mm

Enclosure mounting

wall mounted

Body type

one piece moulded

Type of front cover

low plain cover

Cover fixing

plastic screws

Lock type

captive screw flat outside sealed area

Removable parts

cover by captive screws

Mounting location

outdoor (with canopy or shelter and anticondensation valve)

Fire resistance

960 °C

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

10.000 cm

Package 1 width

17.000 cm

Package 1 length

20.500 cm

Package 1 weight

503.000 g

Unit type of package 2

CAR

Number of units in package 2

20

Package 2 height

40.500 cm

Package 2 width

40.500 cm

Package 2 length

60.500 cm

Package 2 weight

10.800 kg

Unit type of package 3

P12

Number of units in package 3

240

Package 3 height

135.000 cm

Package 3 width

80.000 cm

Package 3 length

120.000 cm

Package 3 weight

141.000 kg

Green premium status for reporting

Green Premium product

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A
