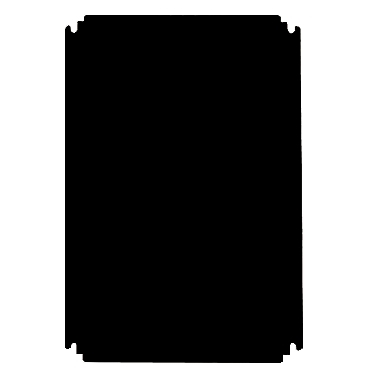

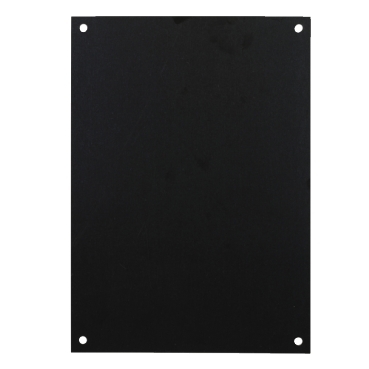

Thalassa Insulating bakelite mounting plate for PLS box 18x27cm

Home ProductsIndustrialThalassaInsulating bakelite mounting plate

Thalassa Insulating bakelite mounting plate for PLS box 18x27cm

Item Number: NSYPMB1827

Thalassa PLS insulating bakelite mounting plate. For boxes H 180 x W 270 mm. Multi-purpose application. Mounting location on back inserts (fixing by screw type M6). Insulating mounting plate. 150 Kg permanent permissible load. Bakelite. Black RAL 9005.

Where To Buy

Datasheet

PDF datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range

Thalassa

Product or component type

mounting plate

Device application

multi-purpose

Colour

black (RAL 9005)

Surface finish

matt

Warranty

18 months

Physical

Range compatibility

Thalassa Thalassa PLS

Quantity per set

set of 1

Fixing mode

by screws - screw type M6 - on back inserts location

Height

nominal: 180 mm

Width

nominal: 270 mm

Reach free of svhc

Yes

Mercury free

Yes

Rohs exemption information

Yes

Environmental disclosure

ENVPEP110704EN

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Material

Device composition

1 mounting plate

Material

bakelite

Others

Legacy weee scope

Out

Weee label

No

At least in Europe

Package 1 bare product quantity

1

Accessory / separate part category

mounting accessory

Enclosure nominal dimensions

-

Mounting location

back inserts

Mounting plate description

insulating

Permanent permissible load

150 kg

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

0.5 cm

Package 1 width

13.5 cm

Package 1 length

22.5 cm

Package 1 weight

177 g

Sustainable packaging

No

Coverage

Core product

Warranty (in months)

18
Show all specifications
