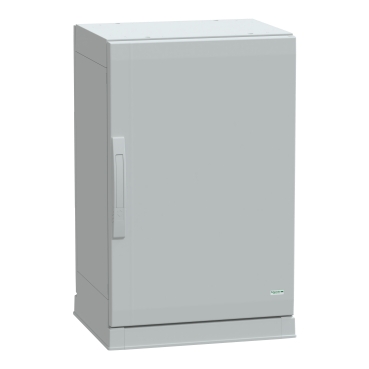

Thalassa Floor standing polyester enclosure Thalassa PLA, plain door, open bottom, 750x500x420mm, IP54, IK10
Item Number: NSYPLAZ754G
Datasheet
Specifications
Design
| Range | PanelSeT |
|---|---|
| Device application | multi-purpose |
| Product or component type | suitable enclosure |
| Colour | grey (RAL 7035) |
| Warranty | 18 months |
Physical
| Standards | IEC 62208 |
|---|---|
| Product certifications | Veritas |
| Electrical insulation class | class II |
| Ip degree of protection | IP54 conforming to IEC 60529 (plinth type open bottom) |
| Ik degree of protection | IK10 conforming to IEC 62262 (plain door) |
| Ambient air temperature for storage | -35...90 °C |
| Mercury free | Yes |
| Rohs exemption information | Yes |
| Environmental disclosure | ENVPEP1105005EN |
| Reach regulation | Reference contains Substances of Very High Concern above the threshold |
| China rohs regulation | X |
| Eu rohs directive | Compliant By Exemption |
| California proposition 65 | WARNING: This product can expose you to chemicals including: Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
Material
| Device composition |
|
|---|---|
| Material | polyester reinforced with fibreglass |
