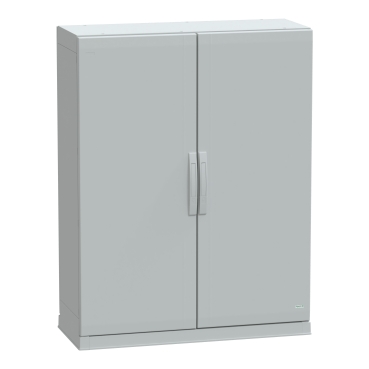

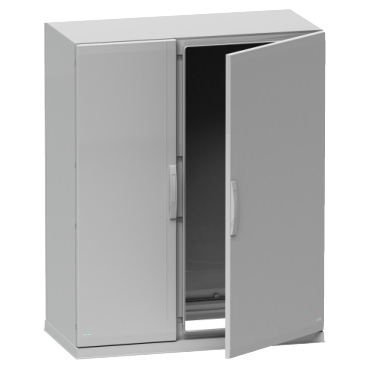

Thalassa Floor standing polyester enclosure Thalassa PLA, plain door, open bottom, 1250x1000x420mm, IP54, IK10

Item Number: NSYPLAZ12104G

1 PCE 0

Where To Buy

Datasheet

Download

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	3606480775642	-

Specifications

Design

Range	PanelSeT
Device application	multi-purpose
Product or component type	suitable enclosure
Colour	grey (RAL 7035)
Warranty	18 months

Physical

Standards	IEC 62208
Product certifications	Veritas
Electrical insulation class	class II
Ip degree of protection	IP54 conforming to IEC 60529 (plinth type open bottom)
Ik degree of protection	IK10 conforming to IEC 62262 (plain door)
Ambient air temperature for storage	-35...90 °C
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP1105005EN
Reach regulation	Reference contains Substances of Very High Concern above the threshold
China rohs regulation	X
Eu rohs directive	Compliant By Exemption
California proposition 65	WARNING: This product can expose you to chemicals including: Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Material

Device composition	1 top part 1 bottom part 2 side part 2 door 2 rear panel 1 plinth
Material	polyester reinforced with fibreglass

Others

Legacy weee scope	Out
Package 1 bare product quantity	1
Package 2 bare product quantity	2
Average percentage of recycled plastic content	0 %
	At least in Europe
Warranty duration(in months) bmecat	18
Weee label	No
Product name	PanelSeT PLA
Device short name	PLAZ
Enclosure nominal height	1250 mm
Enclosure nominal width	1000 mm
Enclosure nominal depth	420 mm
Enclosure mounting	floor-standing
Body type	sealed top and open bottom part assembled with side parts
Door type	plain front
Number of doors	2 door(s)
Door opening side	right and left (120 °)
Lock type	4 points lock, handle with 5 mm double bar insert
Accessibility for operation	rear bottom front
Removable parts	door by hinges rear panel by fixing element
Fire resistance	960 °C conforming to IEC 62208
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	47.500 cm
Package 1 width	103.000 cm
Package 1 length	130.000 cm
Package 1 weight	53.000 kg
Unit type of package 2	PAM
Number of units in package 2	2
Package 2 height	146.000 cm
Package 2 width	100.000 cm
Package 2 length	120.000 cm
Package 2 weight	119.000 kg
Green premium status for reporting	Green Premium product
Total lifecycle carbon footprint	412 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	192.54118011294494
Carbon footprint of the manufacturing phase [a1 to a3]	193 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	105.22210223151055
Carbon footprint of the distribution phase [a4]	105 kg CO2 eq.
Carbon footprint of the installation phase [a5]	17.854347119462357
Carbon footprint of the installation phase [a5]	18 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	0
Carbon footprint of the use phase [b2, b3, b4, b6]	0 kg CO2 eq.
Sustainable packaging	No
Carbon footprint of the end-of-life phase [c1 to c4]	96.65059477882315
Carbon footprint of the end-of-life phase [c1 to c4]	97 kg CO2 eq.
Energy efficiency optimized	False
F-gas free	N/A
Updatability	N/A
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	412.268224242741
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	No
Packaging without single use plastic	No
Scip number	1341ad4e-77b9-40e3-bab0-32043fbc5959
China rohs label	7
End of life manual availability	N/A
Take-back	No
Warranty (in months)	18

Show all specifications

Documents & downloads

All
CAD Files and Packs
Environmental Disclosure
Installation Instruction
Technical illustration
Certificates (MSDS)
Declaration of Conformity (Sustainability)

Important: Some software files may need a mySchneider or Club login to download.

ZIP

PanelSeT PLA - Polyester encl. PLAZ version with open bottom part H1200xW1000xD420 - 3D CAD

VERSION

1.0

DATE

03 Jan 2025

REVISION

1.0

DOWNLOAD (ZIP) 8 MB

ZIP

PanelSeT PLA - Floor standing enclosure polyester 1250x1000x420 - 2D CAD

VERSION

1.0

DATE

02 Jan 2025

REVISION

1.0

DOWNLOAD (ZIP) 4.7 MB

ZIP

PEP-PanelSeT PLA

VERSION

1.0

DATE

01 Dec 2025

REVISION

1.0

DOWNLOAD (ZIP) 395.7 KB

ZIP

PanelSeT PLA PLAT PLAZT PLAZ - Polyester Floor Standing Enclosure - Instruction sheet

VERSION

2.0

DATE

07 Jan 2025

REVISION

2.0

DOWNLOAD (ZIP) 2.1 MB

ZIP

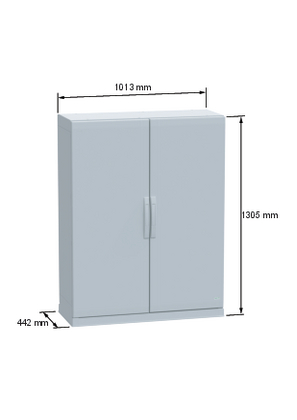

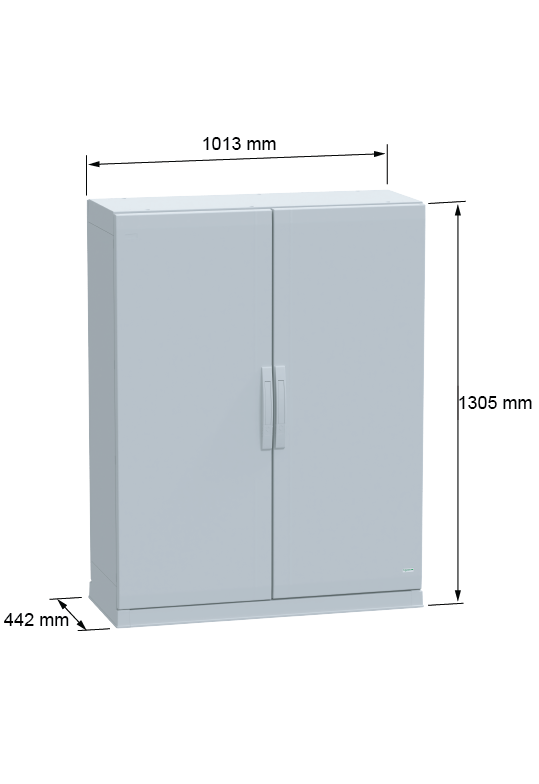

Floor standing enclosure - NSYPLAZ12104G - Image with dimensions
