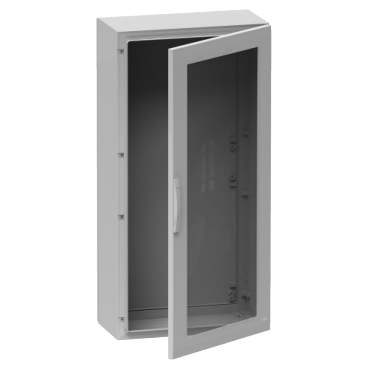

Thalassa Floor standing polyester enclosure Thalassa PLA, glazed door, completely sealed, 1500x750x320mm, IP65, IK08

Item Number: NSYPLA1573TG

1 PCE 0

Where To Buy

Datasheet

Download

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	3606480774805	-

Specifications

Design

Range	PanelSeT
Device application	multi-purpose
Product or component type	suitable enclosure
Colour	grey (RAL 7035)
Warranty	18 months

Physical

Standards	UL 508 A IEC 62208
Product certifications	DNV Marine UL/cUL listed Veritas
Electrical insulation class	class II
Ip degree of protection	IP65 conforming to IEC 60529 (completely sealed)
Ik degree of protection	IK08 conforming to IEC 62262 (glazed door)
Ambient air temperature for storage	-35...90 °C
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP1105005EN
Reach regulation	Reference contains Substances of Very High Concern above the threshold
China rohs regulation	X
Eu rohs directive	Compliant By Exemption
California proposition 65	WARNING: This product can expose you to chemicals including: Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Material

Device composition	1 top part 1 bottom part 2 side part 1 rear panel 1 door
Material	polyester reinforced with fibreglass

Others

Legacy weee scope	Out
Average percentage of recycled plastic content	0 %
Package 2 bare product quantity	3
Package 1 bare product quantity	1
	At least in Europe
Warranty duration(in months) bmecat	18
Weee label	No
Product name	PanelSeT PLA
Device short name	PLA
Enclosure nominal height	1500 mm
Enclosure nominal width	750 mm
Enclosure nominal depth	320 mm
Enclosure mounting	floor-standing
Body type	sealed top and bottom part assembled with side parts
Door type	transparent front
Number of doors	1 door(s)
Door opening side	reversible (120 °)
Lock type	4 points lock, 5 mm double-bar
Accessibility for operation	front rear
Removable parts	door by hinges rear panel by fixing element
Nema degree of protection	NEMA 3R NEMA 3 NEMA 3X NEMA 13 NEMA 1 NEMA 12 NEMA 3S NEMA 5 NEMA 2
Fire resistance	960 °C conforming to IEC 62208
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	38.000 cm
Package 1 width	79.000 cm
Package 1 length	152.000 cm
Package 1 weight	44.500 kg
Unit type of package 2	PAM
Number of units in package 2	3
Package 2 height	168.000 cm
Package 2 width	100.000 cm
Package 2 length	120.000 cm
Package 2 weight	152.000 kg
Green premium status for reporting	Green Premium product
Total lifecycle carbon footprint	346 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	161.66193424577452
Carbon footprint of the manufacturing phase [a1 to a3]	162 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	88.34685942079659
Carbon footprint of the distribution phase [a4]	88 kg CO2 eq.
Carbon footprint of the installation phase [a5]	14.990914090869339
Carbon footprint of the installation phase [a5]	15 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	0
Carbon footprint of the use phase [b2, b3, b4, b6]	0 kg CO2 eq.
Sustainable packaging	No
Carbon footprint of the end-of-life phase [c1 to c4]	81.15002769165339
Carbon footprint of the end-of-life phase [c1 to c4]	81 kg CO2 eq.
Energy efficiency optimized	False
F-gas free	N/A
Updatability	N/A
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	346.14973544909384
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	No
Packaging without single use plastic	No
Scip number	1341ad4e-77b9-40e3-bab0-32043fbc5959
China rohs label	7
End of life manual availability	N/A
Take-back	No
Warranty (in months)	18
