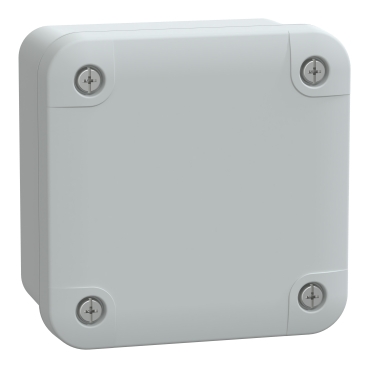

Thalassa ABS box IP66 IK07 RAL7035 Int.H80W80D65 Ext.H89W89D51 Opaque cover H10
Item Number: NSYTBS885
Specifications
Design
| Range | PanelSeT |
|---|---|
| Device application | multi-purpose |
| Product or component type | industrial box |
| Colour | grey (RAL 7035) |
| Warranty | 18 months |
Physical
| Height | 89 mm |
|---|---|
| Width | 89 mm |
| Depth | 54 mm |
| Quantity per set | set of 5 |
| Standards | IEC 62208 |
| Product certifications | TÜV |
| Electrical insulation class | class II |
| Ip degree of protection | IP66 conforming to NEMA 4.4X |
| Ik degree of protection | IK07 conforming to IEC 62262 |
| Ambient air temperature for storage | -15...40 °C |
| Ambient air temperature for operation | -25...60 °C |
| Net weight | 0.096 kg |
| Reach free of svhc | Yes |
| Toxic heavy metal free | Yes |
| Mercury free | Yes |
| Rohs exemption information | Yes |
| Environmental disclosure | ENVPEP2312020EN |
| Reach regulation | Free of Substances of Very High Concern above the threshold |
| China rohs regulation | Product out of China RoHS scope |
| Eu rohs directive | Compliant |
Material
| Device composition |
|
|---|---|
| Material | ABS with 45% of post-industrial recycled content |
