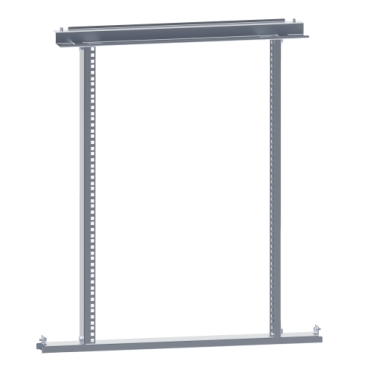

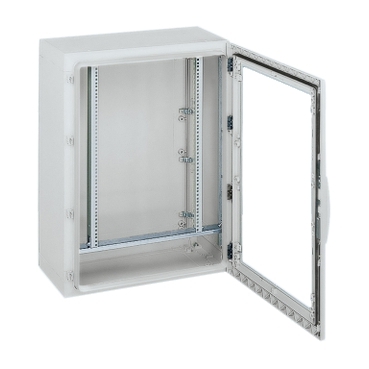

Thalassa 19" fixed chassis 17U for PLA enclosure H1000xW750mm

Item Number: NSYBRF17PLAG

1 PCE 0

Where To Buy

Datasheet

Download

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	3606485405506	-

Specifications

Design

Range	PanelSeT
Product or component type	19" rack
Device application	multi-purpose
Surface finish	epoxy-polyester powder
Colour	grey (RAL 7035)
Warranty	18 months

Physical

Range compatibility	PanelSeT PLA
Quantity per set	set of 1
Fixing mode	by fixing element
Height	nominal: 1000 mm
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP1109021EN
Eu rohs directive	Compliant By Exemption

Material

Device composition	fixing elements 2 19" uprights
Material	sheet steel

Others

Life cycle assessment data	No
If one of the deliverables is not relevant please give the reason	Accessory
Average percentage of recycled plastic content	0 %
Package 2 bare product quantity	30
Package 1 bare product quantity	1
Legacy weee scope	Out
	At least in Europe
Warranty duration(in months) bmecat	18
Weee label	No
Accessory / separate part category	mounting accessory
Enclosure nominal dimensions	-
Rack type	fixed
Mounting location	front of enclosure
Number of units 19"	17
Lock type	lock 5 mm double bar
Permanent permissible load	3 kg per unit
Thickness	2 mm
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	10.000 cm
Package 1 width	11.500 cm
Package 1 length	82.500 cm
Package 1 weight	4.694 kg
Unit type of package 2	PAM
Number of units in package 2	30
Package 2 height	48.000 cm
Package 2 width	100.000 cm
Package 2 length	120.000 cm
Package 2 weight	153.000 kg
Green premium status for reporting	Green Premium product
Sustainable packaging	No
F-gas free	N/A
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	No
Packaging without single use plastic	No
Scip number	2afadc3c-d04d-4184-9d1f-3abc2fc1a548
End of life manual availability	N/A
Take-back	No
Warranty (in months)	18

Show all specifications

Documents & downloads

All
CAD Files and Packs
Environmental Disclosure
Installation Instruction
Declaration of Conformity (Sustainability)

Important: Some software files may need a mySchneider or Club login to download.

ZIP

PanelSeT PLA - 19 inches fixed chassis 17u (PLA10x7) grey RAL 7035 - 3D CAD

VERSION

1.0

DATE

03 Jan 2025

REVISION

1.0

DOWNLOAD (ZIP) 3 MB

ZIP

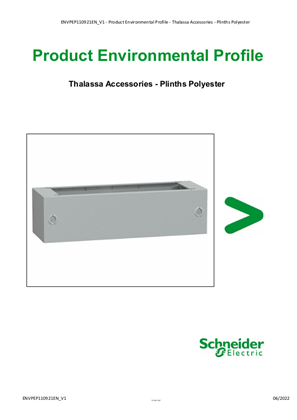

Thalassa Accessories - Plinths Polyester

VERSION

1.0

DATE

01 Dec 2025

REVISION

1.0

DOWNLOAD (ZIP) 333.1 KB

ZIP

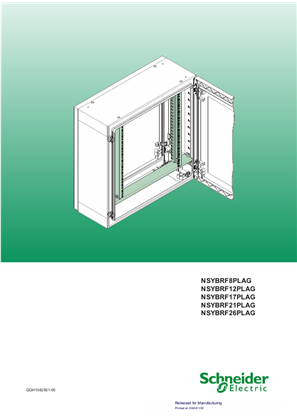

PanelSeT PLA - 19" fixed chassis for PLA enclosures - Instruction sheet
