TeSys D Time delay Auxiliary Contact Block TeSys Deca, 1NO + 1NC, off delay 1-30s, front, screw clamp terminals
Item Number: LADR2
TeSys Deca time delay auxiliary contact block, for contactors LC1D, LC1F and control relays CAD. It provides 1NO+1NC contacts rated up to 10A 690V AC, Off-delay setting range 1-30s, connection by screw clamp terminals. Clip-on front mounting, it procures high reliability and durability. Multi standards certified (IEC, UL, CSA, CCC, EAC),
Specifications
Design
Range
- TeSys
- TeSys Deca
Range of product
Product or component type
Physical
Range compatibility
- TeSys Deca CAD
- TeSys Deca LC1D
- TeSys F LC1F
- TeSys F CR1F
[ue] rated operational voltage
[ie] rated operational current
- 6 A at 120 V AC-15
- 1.04 A at 690 V AC-15
- 0.55 A at 125 V DC-13
- 0.1 A at 600 V DC-13
Standards
- EN/IEC 60947-5-1
- UL 60947-5-1
- CSA C22.2 No 60947-5-1
- GB/T 14048.5
- EN 50012
- IEC 60335-1:Clause 30.2
- IEC 60335-2-40:Annex JJ
- UL 60335-2-40:Annex JJ
Product certifications
- IECEE CB Scheme
- UL
- CSA
- CCC
- EAC
- UKCA
Protection type
Mechanical durability
Insulation resistance
Connections - terminals
- screw clamp terminals 1 cable(s) 1-2.5 mm²flexible with cable end
- screw clamp terminals 1 cable(s) 1-2.5 mm²flexible without cable end
- screw clamp terminals 2 cable(s) 1-2.5 mm²flexible with cable end
- screw clamp terminals 2 cable(s) 1-2.5 mm²flexible without cable end
- screw clamp terminals 1 cable(s) 1-2.5 mm²rigid
- screw clamp terminals 2 cable(s) 1-2.5 mm²rigid
- screw clamp terminals
Height
Width
Depth
Environmental characteristic
Ip degree of protection
Ambient air temperature for storage
Ambient air temperature for operation
Reach regulation
Eu rohs directive
Mercury free
Rohs exemption information
China rohs regulation
Environmental disclosure
Circularity profile
California proposition 65
Others
Life cycle assessment data
Substance regulation data deliverable
Package 1 bare product quantity
Product name
Mounting location
Pole contact composition
Auxiliary contacts operation
Timer type
Time delay range
[ui] rated insulation voltage
- 690 V conforming to IEC 60947-5-1
- 600 V conforming to UL 60947-5-1
- 600 V conforming to CSA C22.2 No 60947-5-1
[ith] conventional free air thermal current
Irms rated making capacity
- 140 A at <= 690 V AC conforming to IEC 60947-5-1
- 250 A at <= 690 V DC conforming to IEC 60947-5-1
Permissible short-time rating
- 100 A 60 °C 1 s
- 120 A 60 °C 500 ms
- 140 A 60 °C 100 ms
Minimum switching current
Minimum switching voltage
Non-overlap time
- 1.5 ms on de-energisation no overlap between NC and NO contact
- 1.5 ms on energisation no overlap between NC and NO contact
Tightening torque
- 1.7 N.m - with screwdriver flat Ø 6 mm
- 1.7 N.m - with screwdriver Philips No 2
- 1.7 N.m - with screwdriver pozidriv No 2
Shielding continuity terminal
Protective treatment
Operating altitude
Unit type of package 1
Number of units in package 1
Package 1 height
Package 1 width
Package 1 length
Package 1 weight
Unit type of package 2
Number of units in package 2
Package 2 height
Package 2 width
Package 2 length
Package 2 weight
Unit type of package 3
Number of units in package 3
Package 3 height
Package 3 width
Package 3 length
Package 3 weight
Green premium status for reporting
Packaging made with recycled cardboard
Packaging without single use plastic
Scip number
Sustainable packaging
Weee
Pvc free
Pvc free
F-gas usage performance
Take-back
Take-back
Product contributes to saved and avoided emissions
Removable battery
Carbon footprint (kg.eq.co2 per cr, total life cycle)
Global warming ; total life cycle
Minimum percentage of recycled plastic content
Documents & downloads
hide show-
All
-
CAD Files and Packs
-
Technical Data Catalogues
-
Environmental Disclosure
-
Installation Instruction
-

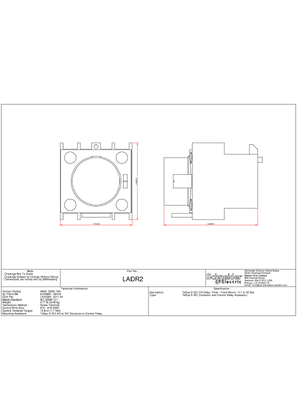

Technical Drawing
-
Certificates (MSDS)
-
Declaration of Conformity
-
eTechPub
LC1D 9 to 38 A AC/DC contactors with screw clamp terminals - Instruction Sheet
VERSION
4.1
DATE
14 Jun 2024
REVISION
4.1
T02EN13, T02FN13, T02GN13, T02HN13, T02JN13 Size 3 to 7 NEMA Rated Contactors Installation Instructions
VERSION
1.0
DATE
01 Mar 2024
REVISION
1.0
CCC_TeSys Deca_LADR, LADS, LADT, LAETSD
VERSION
1.0
DATE
12 Dec 2024
REVISION
1.0
DNV Type Approval Certificate_TeSys D_LC1D09-38&LC2D09-38&LC1D098-128&LC1DT20-25&LC2DT20-25&LC1D188-258&LC1DT32-DT40&LC2DT32-DT40&CAD&LAD
VERSION
1.0
DATE
16 Aug 2024
REVISION
1.0
EU RO MR Type Approval Certificate_TeSys D_LC1D09-38&LC2D09-38&LC1D098-128&LC1DT20-25&LC2DT20-25&LC1D188-258&LC1DT32-DT40&LC2DT32-DT40&CAD&LAD
VERSION
1.0
DATE
16 Aug 2024
REVISION
1.0
CB Certificate TeSys D -LAD-R-S-T_LAETSD_Chasseneuil
VERSION
1.0
DATE
03 Apr 2023
REVISION
1.0
UL Certificate E164353 NKCR Auxiliary Devices
VERSION
1.0
DATE
06 Oct 2022
REVISION
1.0
CSA Certificate_ TeSys D_LADT_LADR_LADS
VERSION
1.0
DATE
06 Oct 2022
REVISION
1.0
Frequently Asked Questions
Will the LAD** time delay auxiliary contact module fit the D2 series pre-Tesys contactors?
Hide ShowCan new accessories be used on older style contactors
Product Line:
IEC contactors and starters
Environment:
Pre-Tesys Contactors
Cause:
Identifying product compatibility
Resolution:
Yes, all front mount D2 and Tesys series auxiliary modules are backward forward compatible.
What is replacement for LA3D22A65?
Hide ShowThe replacement for LA3D22A65 is LADR2
Features and benefits:
• 1 NO + 1 NC contact poles.
• Mechanical durability of 5 Mcycles.
• A minimum switching current of 5 mA.
• On delay timer type with a time delay range of 1 to 30 seconds functionality. Signal the contactor when you need to.
• 690 V AC 25...400Hz (rated operational voltage).
• Easy plug & play style front mounting capability.
• 18-month manufacturer warranty with Schneider Electric.
• Schneider Green Premium product - easily recyclable and disposed of. Built with sustainability in mind to have the least impact on the environment where possible.
Fits to all Tesys D contactors and control Relays.
