TeSys LR.D Thermal Overload Relays TeSys Deca, 110...140A, class 10A, lug clamps

Home ProductsIndustrialTeSysThermal Overload Relays

TeSys LR.D Thermal Overload Relays TeSys Deca, 110...140A, class 10A, lug clamps

Item Number: LRD4369

Where To Buy

Datasheet

PDF datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range

TeSys

Product or component type

differential thermal overload relay

Product compatibility

LC1D150

Warranty

18 months

Physical

Mounting support

  • plate, with specific accessories
  • rail, with specific accessories
  • under contactor

[ue] rated operational voltage

1000 V AC 0...400 Hz for power circuit conforming to IEC 60947-4-1

Control type

  • red push-button: stop
  • blue push-button: reset

Connections - terminals

  • power circuit: screw clamp terminals 1 cable(s) 4-35 mm² flexible with cable end
  • control circuit: screw clamp terminals 2 cable(s) 1-2.5 mm² flexible without cable end
  • control circuit: screw clamp terminals 2 cable(s) 1-2.5 mm² flexible with cable end
  • control circuit: screw clamp terminals 2 cable(s) 1-2.5 mm² solid without cable end
  • power circuit: screw clamp terminals 1 cable(s) 4-50 mm² flexible without cable end
  • power circuit: screw clamp terminals 1 cable(s) 4-50 mm² solid without cable end

Depth

132 mm

Net weight

0.9 kg

Climatic withstand

conforming to IACS E10

Ip degree of protection

IP20 conforming to IEC 60529

Ambient air temperature for operation

-20...60 °C without derating conforming to IEC 60947...4-1

Ambient air temperature for storage

-60...70 °C

Standards

  • EN/IEC 60947-4-1
  • EN/IEC 60947-5-1
  • GB/T 14048.4
  • GB/T 14048.5
  • EN 50495

Product certifications

  • IEC
  • CCC
  • EAC
  • ATEX INERIS

Reach free of svhc

Yes

Toxic heavy metal free

Yes

Mercury free

Yes

Rohs exemption information

Yes

Environmental disclosure

ENVPEP110101EN

Eu rohs directive

Compliant

Reach regulation

Free of Substances of Very High Concern above the threshold

China rohs regulation

 Pro-active China RoHS declaration (out of China RoHS legal scope)

California proposition 65

WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov

Others

Life cycle assessment data

Yes

Substance regulation data deliverable

Yes

Package 1 bare product quantity

1

Average percentage of recycled plastic content

0 %

Legacy weee scope

In

At least in Europe

Weee label

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Product name

  • TeSys LRD
  • TeSys Deca

Device short name

LRD

Relay application

motor protection

Network type

  • DC
  • AC

Thermal overload class

class 10A conforming to IEC 60947-4-1

Thermal protection adjustment range

110...140 A

[ui] rated insulation voltage

power circuit: 1000 V conforming to IEC 60947-4-1

Network frequency

0...400 Hz

Tripping threshold

1.14 +/- 0.06 Ir conforming to IEC 60947-4-1

Auxiliary contact composition

1 NO + 1 NC

[ith] conventional free air thermal current

5 A for signalling circuit

Permissible current

  • 0.06 A at 440 V DC-13 for signalling circuit
  • 0.12 A at 600 V AC-15 for signalling circuit

Associated fuse rating

  • 4 A gG for signalling circuit
  • 4 A BS for signalling circuit

[uimp] rated impulse withstand voltage

6 kV conforming to IEC 60947-1

Phase failure sensitivity

tripping current 130 % of Ir on two phase, the last one at 0

Temperature compensation

-20...60 °C

Tightening torque

  • control circuit: 1.7 N.m - on screw clamp terminals
  • power circuit: 9 N.m - on screw clamp terminals

Compatibility code

LRD

Flame retardance

V1 conforming to UL 94

Mechanical robustness

  • vibrations: 6 Gn conforming to IEC 60068-2-6
  • shocks: 15 Gn for 11 ms conforming to IEC 60068-2-7

Dielectric strength

2.2 kV at 50 Hz conforming to IEC 60947-1

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

13.800 cm

Package 1 width

10.500 cm

Package 1 length

15.500 cm

Package 1 weight

833.000 g

Unit type of package 2

S03

Number of units in package 2

10

Package 2 height

30.000 cm

Package 2 width

30.000 cm

Package 2 length

40.000 cm

Package 2 weight

8.835 kg

Unit type of package 3

P06

Number of units in package 3

80

Package 3 height

75.000 cm

Package 3 width

60.000 cm

Package 3 length

80.000 cm

Package 3 weight

77.680 kg

Green premium status for reporting

Green Premium product

Total lifecycle carbon footprint

8 kg CO2 eq.

Carbon footprint of the manufacturing phase [a1 to a3]

4.305506594796376

Carbon footprint of the manufacturing phase [a1 to a3]

4 kg CO2 eq.

Carbon footprint of the distribution phase [a4]

0.16290861781894878

Carbon footprint of the distribution phase [a4]

0.2 kg CO2 eq.

Carbon footprint of the installation phase [a5]

0.08722167141519573

Carbon footprint of the installation phase [a5]

0.1 kg CO2 eq.

Carbon footprint of the use phase [b2, b3, b4, b6]

1.8963357840065684

Carbon footprint of the use phase [b2, b3, b4, b6]

2 kg CO2 eq.

Sustainable packaging

Yes

Carbon footprint of the end-of-life phase [c1 to c4]

1.2779284715732444

Carbon footprint of the end-of-life phase [c1 to c4]

1 kg CO2 eq.

F-gas free

N/A

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A

Total lifecycle carbon footprint

7.729901139610334

Average percentage of recycled metal content

0 %

Packaging made with recycled cardboard

Yes

Packaging without single use plastic

Yes

End of life manual availability

ENVEOLI1101001

Take-back

No

Weee label

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Warranty (in months)

18
Show all specifications

Documents & downloads

hide show
Filter items

  • All

  • Product Brochures

  • CAD Files and Packs

  • Technical Data Catalogues

  • Environmental Disclosure

  • End of Life Manual

  • Installation Instruction

  • Certificates (MSDS)

  • Declaration of Conformity (Sustainability)

Important: Some software files may need a mySchneider or Club login to download.
Innovative energy-efficient solutions to power containerships owned by Hamburg Sud
ZIP

Innovative energy-efficient solutions to power containerships owned by Hamburg Sud

VERSION

1.0

DATE

27 Aug 2024

REVISION

1.0

DOWNLOAD (ZIP) 516.3 KB
TeSys LR.D - Thermal overload relays - 80...140 A - class 10A - 3D CAD
ZIP

TeSys LR.D - Thermal overload relays - 80...140 A - class 10A - 3D CAD

VERSION

1.0

DATE

21 Feb 2022

REVISION

1.0

DOWNLOAD (ZIP) 933.4 KB
TeSys - Catalog 2025 - Innovative and connected solutions for motor starters
ZIP

TeSys - Catalog 2025 - Innovative and connected solutions for motor starters

VERSION

16.0

DATE

30 Jul 2025

REVISION

16.0

DOWNLOAD (ZIP) 83.4 MB
TeSys Catalogue - 2022 - Chapter B11 - Overload relays TeSys LRK, Deca, Giga, RM1, LT3
ZIP

TeSys Catalogue - 2022 - Chapter B11 - Overload relays TeSys LRK, Deca, Giga, RM1, LT3

VERSION

9.0

DATE

21 Feb 2024

REVISION

9.0

DOWNLOAD (ZIP) 5.6 MB
thermal overload relays, TeSys Deca, 110-140A, lug clamps
ZIP

thermal overload relays, TeSys Deca, 110-140A, lug clamps

VERSION

4.0

DATE

29 Jul 2024

REVISION

4.0

DOWNLOAD (ZIP) 388.3 KB
thermal overload relays, TeSys Deca, 110-140A, lug clamps
ZIP

thermal overload relays, TeSys Deca, 110-140A, lug clamps

VERSION

2.0

DATE

29 Jul 2024

REVISION

2.0

DOWNLOAD (ZIP) 314.4 KB
LC2-K contactor - Instruction Sheet
ZIP

LC2-K contactor - Instruction Sheet

VERSION

3.0

DATE

29 Sep 2023

REVISION

3.0

DOWNLOAD (ZIP) 590.9 KB
LRD33, LRD43 - Thermal overload relays 18.5 to 75 kW - Instruction Sheet
ZIP

LRD33, LRD43 - Thermal overload relays 18.5 to 75 kW - Instruction Sheet

VERSION

3.1

DATE

19 Jun 2022

REVISION

3.1

DOWNLOAD (ZIP) 2.2 MB
TeSys Protect - Deca Overload Relays (25 to 140 A) - Use in Explosive Atmospheres
ZIP

TeSys Protect - Deca Overload Relays (25 to 140 A) - Use in Explosive Atmospheres

VERSION

3.0

DATE

03 Jan 2022

REVISION

3.0

DOWNLOAD (ZIP) 1.6 MB

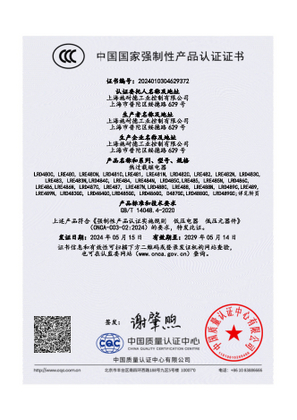

CCC_EaSy TeSys_LRE480-489&LRE480-489N&LRD480-489C
ZIP

CCC_EaSy TeSys_LRE480-489&LRE480-489N&LRD480-489C

VERSION

1.0

DATE

02 Apr 2025

REVISION

1.0

DOWNLOAD (ZIP) 2 MB

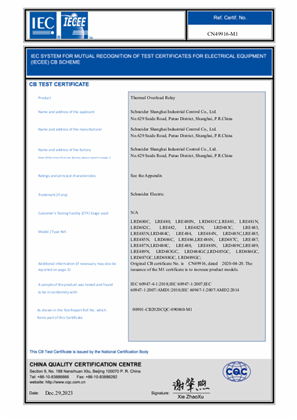

CB Certificate Easy TeSys _LRE480-489&LRE480-489N&LRD480-489C
