TeSys LR9 Thermal Overload Relays remote electrical tripping, 24V DC/AC

Home ProductsIndustrialTeSysThermal Overload Relays

TeSys LR9 Thermal Overload Relays remote electrical tripping, 24V DC/AC

Item Number: LA7D03B

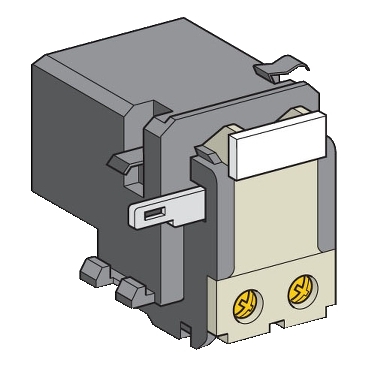

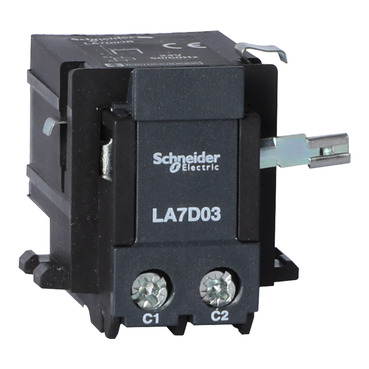

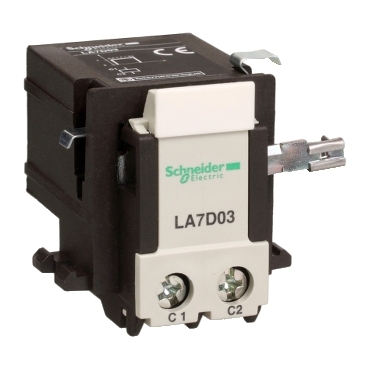

TeSys LRD remote control device for thermal overload relays LRD15../LR2D/LR3D15../LR3D35../LR3D33../LRD33../LRD43../LR3D43.. It provides a 24V AC/DC control circuit to perform a remote tripping and electrical reset.

Where To Buy

Datasheet

PDF datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range

TeSys

Product or component type

electrical remote tripping

Product compatibility

  • LRD15..
  • LR2D
  • LR3D15..
  • LR3D35..
  • LR3D33..
  • LRD33..
  • LRD43..
  • LR3D43..

Warranty

18 months

Physical

Net weight

0.09 kg

Reach free of svhc

Yes

Toxic heavy metal free

Yes

Mercury free

Yes

Rohs exemption information

Yes

Eu rohs directive

Compliant

Reach regulation

Free of Substances of Very High Concern above the threshold

China rohs regulation

 Pro-active China RoHS declaration (out of China RoHS legal scope)

Others

Life cycle assessment data

No

If one of the deliverables is not relevant please give the reason

Accessory

Substance regulation data deliverable

Yes

At least in Europe

Average percentage of recycled plastic content

0 %

Package 1 bare product quantity

1

Legacy weee scope

In

Weee label

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Device short name

LA7D

Accessory / separate part category

electrical accessory

[uc] control circuit voltage

  • 24 V AC 50/60 Hz
  • 24 V DC

Maximum inrush power in va

100 VA

Inrush power in w

0...100 W

Compatibility code

LA7D

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

5.0 cm

Package 1 width

4.8 cm

Package 1 length

4.8 cm

Package 1 weight

109.0 g

Unit type of package 2

S01

Number of units in package 2

32

Package 2 height

15.0 cm

Package 2 width

15.0 cm

Package 2 length

40.0 cm

Package 2 weight

3.668 kg

Sustainable packaging

Yes

F-gas free

N/A

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A

Average percentage of recycled metal content

0 %

Packaging made with recycled cardboard

Yes

Packaging without single use plastic

Yes

Take-back

No

Weee label

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Warranty (in months)

18
Show all specifications

Documents & downloads

hide show
Filter items

  • All

  • CAD Files and Packs

  • Technical Data Catalogues

  • Installation Instruction

  • Declaration of Conformity

  • Certificates (MSDS)

  • Declaration of Conformity (Sustainability)

Important: Some software files may need a mySchneider or Club login to download.
TeSys LR9 - TeSys D thermal overload relays - remote electrical tripping - 3D CAD
ZIP

TeSys LR9 - TeSys D thermal overload relays - remote electrical tripping - 3D CAD

VERSION

1.0

DATE

18 Feb 2022

REVISION

1.0

DOWNLOAD (ZIP) 442.1 KB
TeSys - Catalog 2025 - Innovative and connected solutions for motor starters
ZIP

TeSys - Catalog 2025 - Innovative and connected solutions for motor starters

VERSION

16.0

DATE

30 Jul 2025

REVISION

16.0

DOWNLOAD (ZIP) 83.4 MB

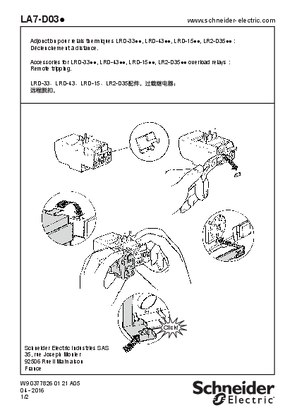

LA7-D03. Remote tripping for overload relays
ZIP

LA7-D03. Remote tripping for overload relays

VERSION

1.3

DATE

29 Sep 2023

REVISION

1.3

DOWNLOAD (ZIP) 558.7 KB

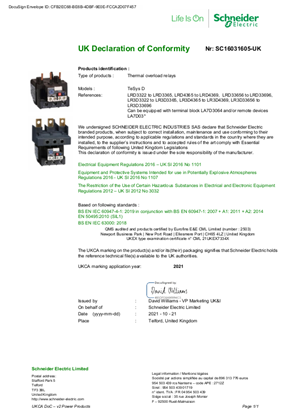

UKCA Declaration TeSysD_LRD33-43_LR3D33-43
ZIP

UKCA Declaration TeSysD_LRD33-43_LR3D33-43

VERSION

1.0

DATE

02 Apr 2025

REVISION

1.0

DOWNLOAD (ZIP) 465.8 KB
EU Declaration SC16031605C TeSys LRD33/LRD43
ZIP

EU Declaration SC16031605C TeSys LRD33/LRD43

VERSION

1.0

DATE

02 Apr 2025

REVISION

1.0

DOWNLOAD (ZIP) 466.7 KB

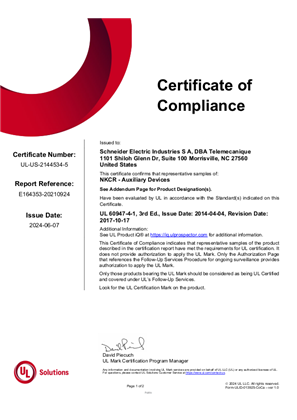

UL_Certificate_TeSys D_LA7D03
