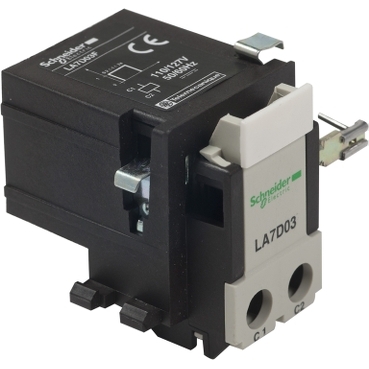

TeSys LR9 Thermal Overload Relays remote electrical tripping, 110 V DC/AC

Item Number: LA7D03F

1 PCE 0

TeSys LRD remote control device for thermal overload relays LRD43../LR3D15../LR2D../LRD33../LRD43../LR3D35.. It provides a 110V AC/DC control circuit to perform a remote tripping and electrical reset.

Where To Buy

Datasheet

Download

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	3389110055122	-

Specifications

Design

Range	TeSys
Product or component type	electrical remote tripping
Product compatibility	LRD43.. LR3D15.. LR2D LRD33.. LR3D43.. LR3D35.. LRD15.. LR3D33..
Warranty	18 months

Physical

Net weight	0.09 kg
Reach free of svhc	Yes
Toxic heavy metal free	Yes
Mercury free	Yes
Rohs exemption information	Yes
Eu rohs directive	Compliant

Others

Life cycle assessment data	No
If one of the deliverables is not relevant please give the reason	Accessory
Substance regulation data deliverable	Yes
Legacy weee scope	In
	At least in Europe
Warranty duration(in months) bmecat	18
Average percentage of recycled plastic content	0 %
Package 2 bare product quantity	32
Package 1 bare product quantity	1
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Device short name	LA7D
Accessory / separate part category	electrical accessory
[uc] control circuit voltage	110 V AC 50/60 Hz 110 V DC
Maximum inrush power in va	100 VA
Inrush power in w	0...100 W
Compatibility code	LA7D
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	4.700 cm
Package 1 width	4.800 cm
Package 1 length	5.200 cm
Package 1 weight	106.000 g
Unit type of package 2	S01
Number of units in package 2	32
Package 2 height	15.000 cm
Package 2 width	15.000 cm
Package 2 length	40.000 cm
Package 2 weight	3.589 kg
Sustainable packaging	Yes
Energy efficiency optimized	False
F-gas free	N/A
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	Yes
Packaging without single use plastic	Yes
Take-back	No
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Warranty (in months)	18
