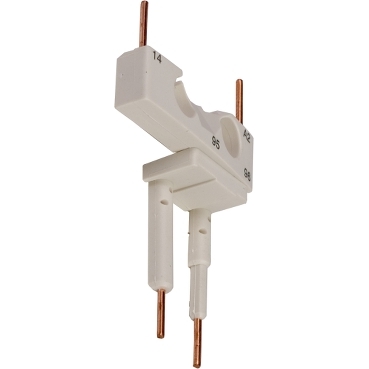

TeSys LR97D Thermal Overload Relays pre-wiring kit of NC contact

Home ProductsIndustrialTeSysThermal Overload Relays

TeSys LR97D Thermal Overload Relays pre-wiring kit of NC contact

Item Number: LAD7C1

1 PCE 0

Datasheet

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	BAG	3389110347081	-

Specifications

Design

Range	TeSys
Product or component type	pre-wired connector
Product compatibility	LR3D01...D35 LC1D09...D18 LRD01...35
Warranty	18 months

Physical

Net weight	0.002 kg
Quantity per set	set of 10
Reach free of svhc	Yes
Toxic heavy metal free	Yes
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP1501004EN
Reach regulation	Free of Substances of Very High Concern above the threshold
China rohs regulation	Product out of China RoHS scope
Eu rohs directive	Compliant

Others

Life cycle assessment data	No
If one of the deliverables is not relevant please give the reason	acc
Package 1 bare product quantity	1
Package 2 bare product quantity	10
Package 3 bare product quantity	100
Average percentage of recycled plastic content	0 %
Legacy weee scope	In
Substance regulation data deliverable	Yes
	At least in Europe
Warranty duration(in months) bmecat	18
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Device short name	LAD
Accessory / separate part category	connection accessory
Compatibility code	LAD
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	1.000 cm
Package 1 width	6.500 cm
Package 1 length	4.000 cm
Package 1 weight	4.000 g
Unit type of package 2	BB1
Number of units in package 2	10
Package 2 height	5.000 cm
Package 2 width	8.000 cm
Package 2 length	16.500 cm
Package 2 weight	67.000 g
Unit type of package 3	S02
Number of units in package 3	100
Package 3 height	15 cm
Package 3 width	30 cm
Package 3 length	40 cm
Package 3 weight	1.079 kg
Sustainable packaging	No
Energy efficiency optimized	False
F-gas free	N/A
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	Yes
Packaging without single use plastic	Yes
China rohs label	1
Take-back	No
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Warranty (in months)	18

Show all specifications
