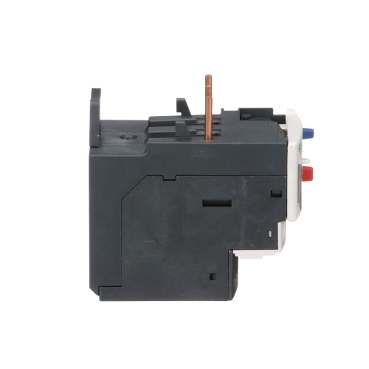

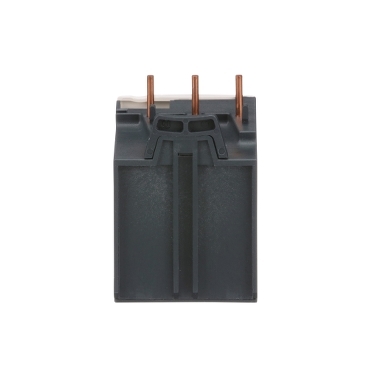

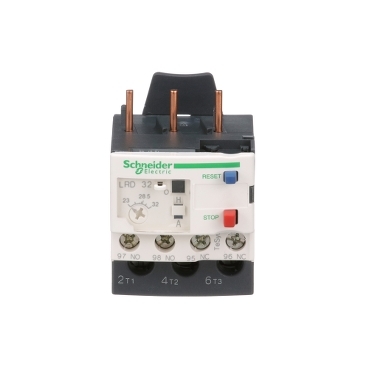

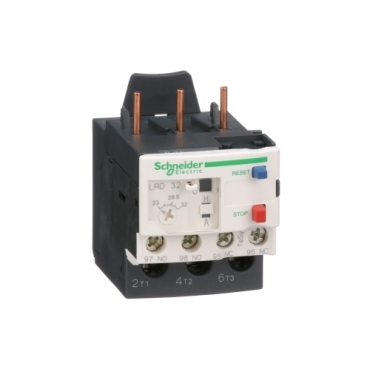

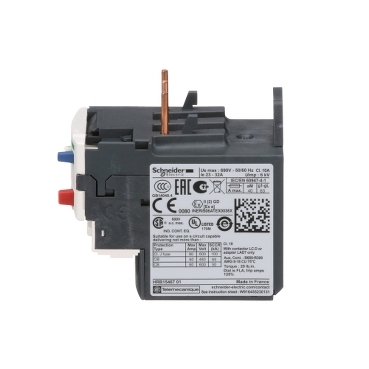

TeSys LR.D Thermal overload relay TeSys Deca, 690VAC, 23 to 32A, 1NO+1NC, class 10A, screw clamp

Item Number: LRD32

1 PCE 0

Where To Buy

Datasheet

Download

Product Dimensions

Width45 mm

Height66 mm

Depth70 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	3389110346855	-

Specifications

Design

Range	TeSys TeSys Deca
Product or component type	differential thermal overload relay
Product compatibility	LC1D32 LC1D25 LC1D38
Warranty	18 months

Physical

Mounting support	plate, with specific accessories rail, with specific accessories under contactor
[ue] rated operational voltage	690 V AC 0...400 Hz for power circuit conforming to IEC 60947-4-1
Control type	red push-button: stop blue push-button: reset
Connections - terminals	control circuit: screw clamp terminals 2 cable(s) 1-2.5 mm² flexible without cable end control circuit: screw clamp terminals 2 cable(s) 1-2.5 mm² flexible with cable end control circuit: screw clamp terminals 2 cable(s) 1-2.5 mm² solid power circuit: screw clamp terminals 1 cable(s) 1.5-10 mm² flexible without cable end power circuit: screw clamp terminals 1 cable(s) 1-6 mm² flexible with cable end power circuit: screw clamp terminals 1 cable(s) 1.5-10 mm² solid
Height	66 mm
Width	45 mm
Depth	70 mm
Net weight	0.124 kg
Climatic withstand	conforming to IACS E10
Ip degree of protection	IP20 conforming to IEC 60529
Ambient air temperature for operation	-20...60 °C without derating conforming to IEC 60947...4-1
Ambient air temperature for storage	-60...70 °C
Standards	EN/IEC 60947-4-1 EN/IEC 60947-5-1 UL 60947-4-1 UL 60947-5-1 CSA C22.2 No 60947-4-1 CSA C22.2 No 60947-5-1 GB/T 14048.4 GB/T 14048.5 EN 50495
Product certifications	IEC UL CSA CCC EAC BV RINA DNV-GL LROS (Lloyds register of shipping) ATEX INERIS UKCA
Reach free of svhc	Yes
Toxic heavy metal free	Yes
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP0802006EN
Reach regulation	Free of Substances of Very High Concern above the threshold
China rohs regulation	Product out of China RoHS scope
Eu rohs directive	Compliant
California proposition 65	WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov

Others

Life cycle assessment data	Yes
Substance regulation data deliverable	Yes
Legacy weee scope	In
Average percentage of recycled plastic content	0 %
Package 3 bare product quantity	384
Package 2 bare product quantity	24
Package 1 bare product quantity	1
	At least in Europe
Warranty duration(in months) bmecat	18
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Product name	TeSys LRD TeSys Deca
Device short name	LRD
Relay application	motor protection
Network type	AC DC
Thermal overload class	class 10A conforming to IEC 60947-4-1
Thermal protection adjustment range	23...32 A
[ui] rated insulation voltage	power circuit: 600 V conforming to CSA power circuit: 600 V conforming to UL power circuit: 690 V conforming to IEC 60947-4-1
Network frequency	0...400 Hz
Tripping threshold	1.14 +/- 0.06 Ir conforming to IEC 60947-4-1
Auxiliary contact composition	1 NO + 1 NC
[ith] conventional free air thermal current	5 A for signalling circuit
Permissible current	1.5 A at 240 V AC-15 for signalling circuit 0.1 A at 250 V DC-13 for signalling circuit
Associated fuse rating	4 A gG for signalling circuit 4 A BS for signalling circuit
[uimp] rated impulse withstand voltage	6 kV
Phase failure sensitivity	tripping current 130 % of Ir on two phase, the last one at 0
Temperature compensation	-20...60 °C
Tightening torque	control circuit: 1.7 N.m - on screw clamp terminals power circuit: 2.5 N.m - on screw clamp terminals
Compatibility code	LRD
Flame retardance	V1 conforming to UL 94
Mechanical robustness	vibrations: 6 Gn conforming to IEC 60068-2-6 shocks: 15 Gn for 11 ms conforming to IEC 60068-2-7
Dielectric strength	1.89 kV at 50 Hz conforming to IEC 60947-1
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	5.000 cm
Package 1 width	7.800 cm
Package 1 length	8.800 cm
Package 1 weight	142.000 g
Unit type of package 2	S02
Number of units in package 2	24
Package 2 height	15.000 cm
Package 2 width	30.000 cm
Package 2 length	40.000 cm
Package 2 weight	3.720 kg
Unit type of package 3	P06
Number of units in package 3	384
Package 3 height	75.000 cm
Package 3 width	60.000 cm
Package 3 length	80.000 cm
Package 3 weight	67.520 kg
Green premium status for reporting	Green Premium product
Total lifecycle carbon footprint	13 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	1.0267614686619415
Carbon footprint of the manufacturing phase [a1 to a3]	1 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.024163479198025903
Carbon footprint of the distribution phase [a4]	0 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.01635889814277638
Carbon footprint of the installation phase [a5]	0 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	11.633004615445152
Carbon footprint of the use phase [b2, b3, b4, b6]	12 kg CO2 eq.
Sustainable packaging	No
Carbon footprint of the end-of-life phase [c1 to c4]	0.21678519324421383
Carbon footprint of the end-of-life phase [c1 to c4]	0.2 kg CO2 eq.
F-gas free	N/A
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	12.917073654692109
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	Yes
Packaging without single use plastic	Yes
Scip number	224fb0ea-2bc1-482e-b6b4-c1bdd9779659
China rohs label	1
End of life manual availability	ENVEOLI0802006
Take-back	No
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Warranty (in months)	18
