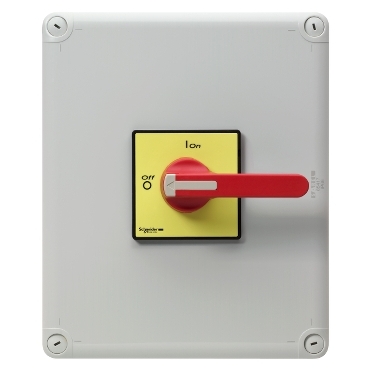

TeSys Mini-Vario TeSys Vario enclosed emergency switch disconnector, 140A, IP65, long handle

Item Number: VCF6GEN

1 PCE 0

Where To Buy

Datasheet

Download

Product Dimensions

Width241 mm

Height291 mm

Depth191 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	3389119413220	-

Specifications

Design

Range	TeSys
Product or component type	enclosed emergency stop switch disconnector
Warranty	18 months

Physical

Control type	rotary handle
Marking	0 - 1
[ue] rated operational voltage	690 V AC
[ie] rated operational current	83 A (AC-23A) at 400 V
Mechanical durability	30000 cycles
Electrical durability	30000 cycles AC-21 30000 cycles DC-1...5
Environmental characteristic	standard environment
Connections - terminals	screw clamp terminals70-70 mm² - flexible - with cable end screw clamp terminals95-95 mm² - solid
Height	291 mm
Width	241 mm
Depth	191 mm
Net weight	2.19 kg
Standards	IEC 60204 IEC 60947-4-1
Ip degree of protection	IP65 conforming to IEC 60529
Ambient air temperature for operation	-20...50 °C
Toxic heavy metal free	Yes
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP2211019EN
Eu rohs directive	Compliant

Others

Life cycle assessment data	Yes
Substance regulation data deliverable	Yes
Package 1 bare product quantity	1
Legacy weee scope	In
Warranty duration(in months) bmecat	18
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Average percentage of recycled plastic content	0 %
	At least in Europe
Product name	TeSys VARIO
Device short name	VCF
Performance level	high performance
Poles description	3P
Type of operator	long handle
Handle colour	red
Handle front plate colour	yellow
Rotary handle padlocking	1 to 3 padlocks 4-8 mm
[uimp] rated impulse withstand voltage	8 kV
[ithe] conventional enclosed thermal current	140 A
Rated operational power in w	45 kW at 400 V (AC-23) 37 kW at 400 V (AC-3)
Intermittent duty class	30
Making capacity	1750 A at 400 V AC-21A 1750 A at 400 V AC-22A 1750 A at 400 V AC-23A
[icm] rated short-circuit making capacity	2.8 kA at 400 V at Ipeak
[icw] rated short-time withstand current	2100 A at 400 V duration: 1 s
Rated conditional short-circuit current	10 kA at 400 V - associated fuse 200 A aM 10 kA at 400 V - associated fuse 200 A gG
Breaking capacity	1400 A at 400 V (AC-21A) 1400 A at 400 V (AC-22A) 1400 A at 400 V (AC-23A)
Suitability for isolation	yes
Tightening torque	22.6...22.6 N.m - on screw clamp terminals
Fire resistance	960 °C conforming to IEC 60595-2-1
Base dimension	90 x 90 mm
Compatibility code	enclosed switch disconnector
Protective treatment	TC
Mechanical robustness	vibrations 10...150 Hz (1 gn) conforming to IEC 60068-2-6 shocks 11 ms (30 Gn) conforming to IEC 60068-2-27
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	30.000 cm
Package 1 width	20.500 cm
Package 1 length	30.000 cm
Package 1 weight	2.908 kg
Unit type of package 2	S04
Number of units in package 2	2
Package 2 height	30.000 cm
Package 2 width	40.000 cm
Package 2 length	60.000 cm
Package 2 weight	6.577 kg
Unit type of package 3	P06
Number of units in package 3	8
Package 3 height	75.000 cm
Package 3 width	60.000 cm
Package 3 length	80.000 cm
Package 3 weight	38.788 kg
Green premium status for reporting	Green Premium product
Total lifecycle carbon footprint	36 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	15.295403997641744
Carbon footprint of the manufacturing phase [a1 to a3]	15 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.5666725605472526
Carbon footprint of the distribution phase [a4]	0.6 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.4598569820366918
Carbon footprint of the installation phase [a5]	0.5 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	13.432378470046519
Carbon footprint of the use phase [b2, b3, b4, b6]	13 kg CO2 eq.
Sustainable packaging	Yes
Carbon footprint of the end-of-life phase [c1 to c4]	6.362882000417492
Carbon footprint of the end-of-life phase [c1 to c4]	6 kg CO2 eq.
Energy efficiency optimized	False
F-gas free	N/A
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	36.117194010689694
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	Yes
Packaging without single use plastic	Yes
Scip number	9ea58720-3cf9-4883-9af8-9d64d3981af2
End of life manual availability	N/A
Take-back	No
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Warranty (in months)	18
