TeSys D TeSys Deca & TeSys U Terminal Block 3P, for GV1L3

Home ProductsIndustrialTeSysTeSys Deca & TeSys U Terminal Block

TeSys D TeSys Deca & TeSys U Terminal Block 3P, for GV1L3

Item Number: GV2G05

TeSys GV terminal block, 3 phases, 63A/690V, to supply busbar sets GV2G. To be mounted next to the devices connected by the busbar sets, on the same DIN rail, and connected by one of the busbar outlets. It can be fitted with a current limiter GV1L3 for all parallel motor starters (to be ordered separately). Connection to the supply cable by screw connectors.

Where To Buy

Datasheet

PDF datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

  • TeSys U
  • TeSys K
  • TeSys GV2
  • TeSys Deca

Range

Linergy

Product or component type

terminal block

Warranty

18 months

Physical

Range compatibility

  • TeSys GV2
  • TeSys Deca
  • TeSys K
  • TeSys U

[ie] rated operational current

63 A

Ip degree of protection

IP20 conforming to IEC 60529

Connections - terminals

  • screw clamp terminals 1 solid AWG 4
  • screw clamp terminals 1 cable(s) 1.5-16 mm² flexible with cable end
  • screw clamp terminals 1 cable(s) 1.5-16 mm² flexible without cable end
  • screw clamp terminals 1 cable(s) 1.5-25 mm² solid
  • screw clamp terminals 2 cable(s) 1.5-4 mm² flexible with cable end
  • screw clamp terminals 2 cable(s) 1.5-6 mm² solid
  • screw clamp terminals 2 cable(s) 2.5-4 mm² flexible without cable end
  • screw clamp terminals 1 flexible AWG 4

Net weight

0.115 kg

Reach free of svhc

Yes

Toxic heavy metal free

Yes

Mercury free

Yes

Rohs exemption information

Yes

Environmental disclosure

ENVPEP2207006

Eu rohs directive

Compliant

Reach regulation

Free of Substances of Very High Concern above the threshold

China rohs regulation

 Pro-active China RoHS declaration (out of China RoHS legal scope)

Others

Life cycle assessment data

No

If one of the deliverables is not relevant please give the reason

Accessory

Substance regulation data deliverable

Yes

Legacy weee scope

In

Package 1 bare product quantity

1

Package 2 bare product quantity

40

Package 3 bare product quantity

640

Average percentage of recycled plastic content

0 %

At least in Europe

Weee label

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Product name

FT

Device short name

GV2G

Accessory / separate part category

connection accessory

Poles description

3P

Mounting location

35 mm DIN rail

[ui] rated insulation voltage

690 V conforming to IEC 60947-1

Tightening torque

  • 1.7...1.7 N.m - on screw clamp terminals
  • 2.2.2 N.m - on connector

Compatibility code

GV2G

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

5.500 cm

Package 1 width

6.000 cm

Package 1 length

7.000 cm

Package 1 weight

120.000 g

Unit type of package 2

S02

Number of units in package 2

40

Package 2 height

15.000 cm

Package 2 width

30.000 cm

Package 2 length

40.000 cm

Package 2 weight

5.009 kg

Unit type of package 3

P06

Number of units in package 3

640

Package 3 height

75.000 cm

Package 3 width

60.000 cm

Package 3 length

80.000 cm

Package 3 weight

93.220 kg

Green premium status for reporting

Green Premium product

Sustainable packaging

No

F-gas free

N/A

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A

Average percentage of recycled metal content

0 %

Packaging made with recycled cardboard

Yes

Packaging without single use plastic

No

End of life manual availability

ENVEOLI2207006

Take-back

No

Weee label

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Warranty (in months)

18
Show all specifications

Documents & downloads

hide show
Filter items

  • All

  • CAD Files and Packs

  • Technical Data Catalogues

  • Data Bulletin

  • End of Life Manual

  • Environmental Disclosure

  • Installation Instruction

  • Technical Drawing

  • Certificates (MSDS)

  • Declaration of Conformity (Sustainability)

Important: Some software files may need a mySchneider or Club login to download.
TeSys D - TERMINAL BLOCK FOR GV1 L3 - 3D CAD
ZIP

TeSys D - TERMINAL BLOCK FOR GV1 L3 - 3D CAD

VERSION

1.0

DATE

03 Mar 2022

REVISION

1.0

DOWNLOAD (ZIP) 586.8 KB
Linergy - Distribution and Connection Systems - English
ZIP

Linergy - Distribution and Connection Systems - English

VERSION

6.1

DATE

15 Sep 2025

REVISION

6.1

DOWNLOAD (ZIP) 45.9 MB
TeSys - Catalog 2025 - Innovative and connected solutions for motor starters
ZIP

TeSys - Catalog 2025 - Innovative and connected solutions for motor starters

VERSION

16.0

DATE

30 Jul 2025

REVISION

16.0

DOWNLOAD (ZIP) 83.4 MB
Discover catalog for Altivar 32 Variable Speed Drives
ZIP

Discover catalog for Altivar 32 Variable Speed Drives

VERSION

4.0

DATE

29 Sep 2023

REVISION

4.0

DOWNLOAD (ZIP) 4 MB
Motor Control Solutions for the North American Market Data Bulletin
ZIP

Motor Control Solutions for the North American Market Data Bulletin

VERSION

5.0

DATE

10 Mar 2025

REVISION

5.0

DOWNLOAD (ZIP) 75.3 MB
TeSys Deca - auxiliary contact block (GV)
ZIP

TeSys Deca - auxiliary contact block (GV)

VERSION

2.0

DATE

26 Dec 2024

REVISION

2.0

DOWNLOAD (ZIP) 616.7 KB
TeSys Deca - auxiliary contact block (GV)
ZIP

TeSys Deca - auxiliary contact block (GV)

VERSION

2.0

DATE

26 Dec 2024

REVISION

2.0

DOWNLOAD (ZIP) 624.7 KB
GV2 ME.. Motor circuit-breakers - IS on the box - Instruction Sheet
ZIP

GV2 ME.. Motor circuit-breakers - IS on the box - Instruction Sheet

VERSION

3.0

DATE

19 Dec 2024

REVISION

3.0

DOWNLOAD (ZIP) 1.3 MB
LAD-311 Motor starter components - TeSys Quickfit Power
ZIP

LAD-311 Motor starter components - TeSys Quickfit Power

VERSION

3.3

DATE

30 May 2024

REVISION

3.3

DOWNLOAD (ZIP) 8.9 MB
GV2LE / GV2RT Circuit breakers - Instruction sheet
ZIP

GV2LE / GV2RT Circuit breakers - Instruction sheet

VERSION

2.0

DATE

21 Dec 2022

REVISION

2.0

DOWNLOAD (ZIP) 784.2 KB

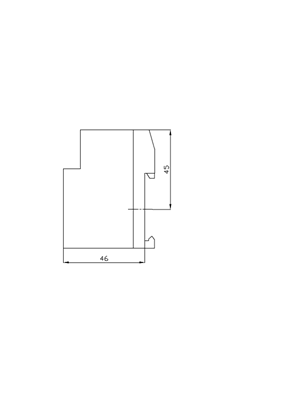

Terminal block for supply to one or more GV2G busbar sets Technical drawings
