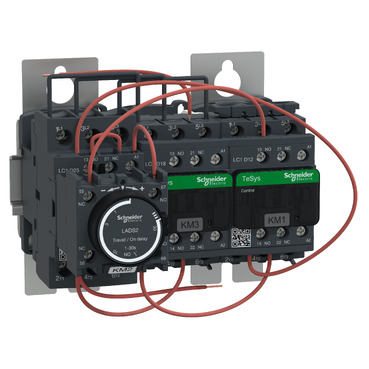

TeSys D TeSys Deca Star Delta Starter , 3 x 3P (3 NO) , 18 A , 24V AC coil

Item Number: LC3D18AB7

1 PCE 0

Where To Buy

Datasheet

Download

Product Dimensions

Width144 mm

Height124 mm

Depth143 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	CAR	3389110546064	-

Specifications

Design

Range of product	TeSys Deca
Range	TeSys TeSys Deca
Product or component type	star delta starter
Warranty	18 months

Physical

Device presentation	pre-wired
[ue] rated operational voltage	power circuit: <= 690 V AC 25...400 Hz
[ie] rated operational current	18 A (at <60 °C) at <= 440 V AC AC-3 for power circuit
Electrical durability	1.65 Mcycles 18 A AC-3 at Ue <= 440 V
Provided equipment	protective cover
Mounting support	plate
Standards	IEC 60947-5-1 EN 60947-5-1 UL 508 CSA C22.2 No 14 IEC 60947-4-1 EN 60947-4-1 IEC 60335-1
Product certifications	BV CSA RINA GOST UL GL LROS (Lloyds register of shipping) DNV CCC
Connections - terminals	control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible without cable end control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: flexible without cable end control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible with cable end control circuit: screw clamp terminals 2 1-2.5 mm² - cable stiffness: flexible with cable end control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: solid without cable end control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: solid without cable end power circuit: screw clamp terminals 1 1.5-6 mm² - cable stiffness: flexible without cable end power circuit: screw clamp terminals 2 1.5-6 mm² - cable stiffness: flexible without cable end power circuit: screw clamp terminals 1 1-6 mm² - cable stiffness: flexible with cable end power circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: flexible with cable end power circuit: screw clamp terminals 1 1.5-6 mm² - cable stiffness: solid without cable end power circuit: screw clamp terminals 2 1.5-6 mm² - cable stiffness: solid without cable end
Width	144 mm
Height	124 mm
Depth	143 mm
Net weight	1.73 kg
Insulation resistance	> 10 MOhm for signalling circuit
Ip degree of protection	IP20 front face conforming to IEC 60529
Climatic withstand	conforming to IACS E10 conforming to IEC 60947-1 Annex Q category D
Ambient air temperature for storage	-60...80 °C
Ambient air temperature for operation	-40...70 °C at Uc
Reach free of svhc	Yes
Toxic heavy metal free	Yes
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP1501004EN
Reach regulation	Free of Substances of Very High Concern above the threshold
China rohs regulation	Product out of China RoHS scope
Eu rohs directive	Compliant

Others

Package 1 bare product quantity	1
Legacy weee scope	In
Substance regulation data deliverable	Yes
Life cycle assessment data	Yes
	At least in Europe
Package 2 bare product quantity	27
Average percentage of recycled plastic content	0 %
Warranty duration(in months) bmecat	18
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Product name	TeSys Deca
Device short name	LC3D
Contactor application	motor control
Utilisation category	AC-3
Poles description	3 x 3P
Pole contact composition	3 x 3 NO
Motor power kw	11 kW at 220/230 V AC 50/60 Hz 22 kW at 415 V AC 50/60 Hz 22 kW at 440 V AC 50/60 Hz 18.5 kW at 380/400 V AC 50/60 Hz
Control circuit type	AC at 50/60 Hz
[uc] control circuit voltage	24 V AC 50/60 Hz
Auxiliary contact composition	1 NC for KM1 star contactor
[uimp] rated impulse withstand voltage	6 kV conforming to IEC 60947
Overvoltage category	III
[ui] rated insulation voltage	power circuit: 690 V conforming to IEC 60947-4-1 power circuit: 600 V CSA certified power circuit: 600 V UL certified signalling circuit: 690 V conforming to IEC 60947-1 signalling circuit: 600 V CSA certified signalling circuit: 600 V UL certified
Interlocking type	mechanical
Tightening torque	power circuit: 1.7 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mm power circuit: 1.7 N.m - on screw clamp terminals - with screwdriver Philips No 2 control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mm control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver Philips No 2 power circuit: 1.7 N.m - on screw clamp terminals - with screwdriver pozidriv No 2 control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver pozidriv No 2
Maximum operating rate	30 cyc/h 60 °C
Starting time	30 s
Coil technology	without built-in suppressor module
Control circuit voltage limits	drop-out: 0.3...0.6 Uc at 50/60 Hz (at <60 °C) operational: 0.8...1.1 Uc at 50 Hz (at <60 °C) operational: 0.85...1.1 Uc at 60 Hz (at <60 °C)
Inrush power in va	70 VA 60 Hz cos phi 0.75 (at 20 °C) 70 VA 50 Hz cos phi 0.75 (at 20 °C)
Hold-in power consumption in va	7.5...7.5 VA 60 Hz cos phi 0.3 (at 20 °C) 7 VA 50 Hz cos phi 0.3 (at 20 °C)
Heat dissipation	2...3 W at 50/60 Hz
Auxiliary contacts type	mechanically linked conforming to IEC 60947-5-1 3 x 1 NO + 1 NC mirror contact conforming to IEC 60947-4-1 3 x 1 NC
Signalling circuit frequency	25...400 Hz
Minimum switching current	5 mA for signalling circuit
Switching voltage	17 V for signalling circuit
Non-overlap time	1.5 ms on de-energisation between NC and NO contact 1.5 ms on energisation between NC and NO contact
Power range	7...11 kW at 200...240 V 3 phases 15...25 kW at 380...440 V 3 phases
Motor starter type	star delta starter
Contactor coil voltage	24 V AC standard
Protective treatment	TH conforming to IEC 60068-2-30
Pollution degree	3
Operating altitude	3000 m without derating
Fire resistance	850 °C conforming to IEC 60695-2-1
Flame retardance	V1 conforming to UL 94
Mechanical robustness	vibrations contactor open: 2 Gn, 5...300 Hz vibrations contactor closed: 4 Gn, 5...300 Hz shocks contactor open: 10 Gn for 11 ms shocks contactor closed: 15 Gn for 11 ms
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	17.500 cm
Package 1 width	16.000 cm
Package 1 length	23.000 cm
Package 1 weight	1.764 kg
Unit type of package 2	P06
Number of units in package 2	27
Package 2 height	75.000 cm
Package 2 width	60.000 cm
Package 2 length	80.000 cm
Package 2 weight	60.500 kg
Green premium status for reporting	Green Premium product
Total lifecycle carbon footprint	82 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	7.174421690467103
Carbon footprint of the manufacturing phase [a1 to a3]	7 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.801846545118481
Carbon footprint of the distribution phase [a4]	0.8 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.2825730234170404
Carbon footprint of the installation phase [a5]	0.3 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	73.27533756924
Carbon footprint of the use phase [b2, b3, b4, b6]	73 kg CO2 eq.
Sustainable packaging	No
Pvc free	Yes
F-gas free	N/A
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	81.53417882824262
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	Yes
Packaging without single use plastic	Yes
China rohs label	1
Pvc free	Yes
End of life manual availability	ENVEOLI1501004
Take-back	No
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Warranty (in months)	18

Show all specifications

Documents & downloads

All
CAD Files and Packs
Technical Data Catalogues
Environmental Disclosure
End of Life Manual
Installation Instruction
eTechPub
Declaration of Conformity
Certificates (MSDS)
Declaration of Conformity (Sustainability)

Important: Some software files may need a mySchneider or Club login to download.

ZIP

TeSys D - TeSys S.D 1S ON PLATE230V50/60STAR DELTA - 3D CAD

VERSION

1.0

DATE

08 Aug 2024

REVISION

1.0

DOWNLOAD (ZIP) 11.8 MB

ZIP

TeSys - Catalog 2026 - Innovative and connected solutions for motor starters

VERSION

17.0

DATE

11 May 2026

REVISION

17.0

DOWNLOAD (ZIP) 51 MB

ZIP

TeSys Deca Contactor 3P 09A AC

VERSION

4.0

DATE

18 May 2026

REVISION

4.0

DOWNLOAD (ZIP) 373.5 KB

ZIP

TeSys Deca Contactor 3P 09A AC

VERSION

3.0

DATE

16 Apr 2026

REVISION

3.0

DOWNLOAD (ZIP) 313.3 KB

ZIP

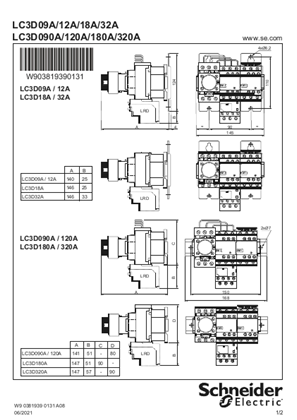

Star delta starters LC3D... - Instruction sheet

VERSION

3.0

DATE

18 Aug 2023

REVISION

3.0

DOWNLOAD (ZIP) 804.3 KB

ZIP

BU_AUT_664_EPDS_V1_EN - POC for TeSys Motor Control

VERSION

2.0

DATE

25 Oct 2024

REVISION

2.0

DOWNLOAD (ZIP) 346.4 KB

ZIP

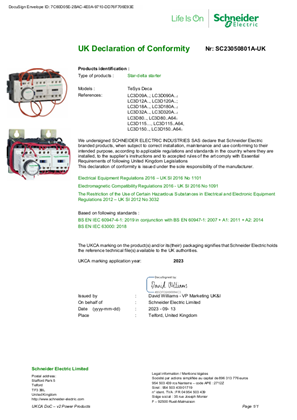

UKCA Declaration TeSys D_LC3D09-32&LC3D80&LC3D115-150

VERSION

1.0

DATE

08 Oct 2023

REVISION

1.0

DOWNLOAD (ZIP) 437 KB

ZIP

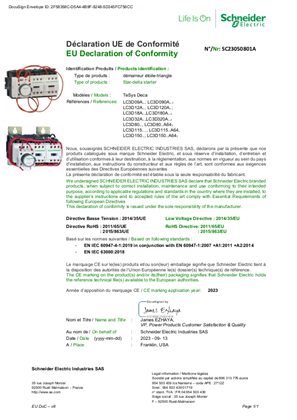

EU Declaration TeSys D_LC3D09-32&LC3D80&LC3D115-150

VERSION

1.0

DATE

08 Oct 2023

REVISION

1.0

DOWNLOAD (ZIP) 540.6 KB

ZIP

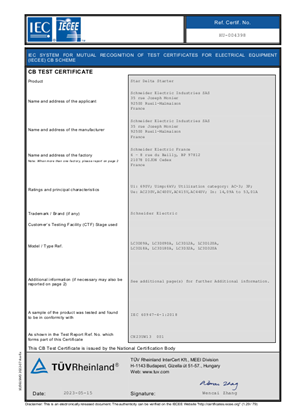

CB_Certificate_TeSys D_LC3D09-32
