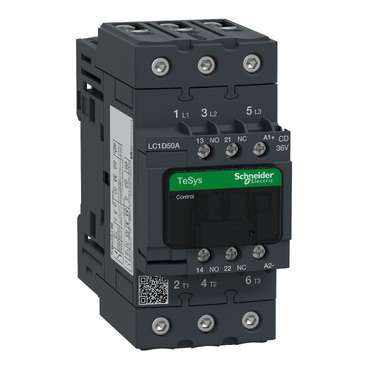

TeSys D TeSys Deca Contactor 3P(3NO),AC-3/AC-3e,<=440V 50A,36V DC standard coil

Item Number: LC1D50ACD

1 PCE 0

Where To Buy

Datasheet

Download

Product Dimensions

Width55 mm

Height122 mm

Depth120 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	CAR	3389118327610	-

Specifications

Design

Range	TeSys TeSys Deca
Range of product	TeSys Deca
Product or component type	contactor
Warranty	18 months

Physical

[ue] rated operational voltage	power circuit: <= 690 V AC 25...400 Hz power circuit: <= 300 V DC
[ie] rated operational current	50 A (at <60 °C) at <= 440 V AC AC-3 for power circuit 80 A (at <60 °C) at <= 440 V AC AC-1 for power circuit 50 A (at <60 °C) at <= 440 V AC AC-3e for power circuit
Mechanical durability	10 Mcycles
Electrical durability	1.45 Mcycles 50 A AC-3 at Ue <= 440 V 0.5 Mcycles 80 A AC-1 at Ue <= 440 V 1.45 Mcycles 50 A AC-3e at Ue <= 440 V
Connections - terminals	control circuit: screw clamp terminals 2 1-2.5 mm² - cable stiffness: flexible with cable end control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible without cable end control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: flexible without cable end control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible with cable end control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: solid without cable end control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: solid without cable end power circuit: EverLink BTR screw connectors 1 1-35 mm² - cable stiffness: flexible without cable end power circuit: EverLink BTR screw connectors 2 1-25 mm² - cable stiffness: flexible without cable end power circuit: EverLink BTR screw connectors 1 1-35 mm² - cable stiffness: flexible with cable end power circuit: EverLink BTR screw connectors 2 1-25 mm² - cable stiffness: flexible with cable end power circuit: EverLink BTR screw connectors 1 1-35 mm² - cable stiffness: solid without cable end power circuit: EverLink BTR screw connectors 2 1-25 mm² - cable stiffness: solid without cable end
Insulation resistance	> 10 MOhm for signalling circuit
Mounting support	rail plate
Connections - terminals	EverLink BTR screw connectors
Standards	EN 60947-4-1 EN 60947-5-1 IEC 60947-4-1 IEC 60947-5-1 CSA C22.2 No 14 UL 60947-4-1 IEC 60335-2-40:Annex JJ UL 60335-2-40:Annex JJ IEC 60335-1:Clause 30.2
Product certifications	CCC UL CB Scheme CSA CE UKCA Marine EAC
Ip degree of protection	IP20 front face conforming to IEC 60529
Climatic withstand	conforming to IACS E10 exposure to damp heat conforming to IEC 60947-1 Annex Q category D exposure to damp heat
Height	122 mm
Width	55 mm
Depth	120 mm
Net weight	0.93 kg
Reach free of svhc	Yes
Toxic heavy metal free	Yes
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP1503009EN
Reach regulation	Free of Substances of Very High Concern above the threshold
China rohs regulation	Product out of China RoHS scope
Eu rohs directive	Compliant
California proposition 65	WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov

Others

Legacy weee scope	In
Substance regulation data deliverable	Yes
Life cycle assessment data	Yes
	At least in Europe
Package 1 bare product quantity	1
Average percentage of recycled plastic content	0 %
Warranty duration(in months) bmecat	18
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Device short name	LC1D
Contactor application	resistive load motor control
Utilisation category	AC-3 AC-3e AC-1 AC-4
Poles description	3P
[uc] control circuit voltage	36 V DC
Motor power kw	15 kW at 220/230 V AC 50/60 Hz (AC-3) 22 kW at 380/400 V AC 50/60 Hz (AC-3) 25 kW at 415 V AC 50/60 Hz (AC-3) 30 kW at 440 V AC 50/60 Hz (AC-3) 30 kW at 500 V AC 50/60 Hz (AC-3) 33 kW at 660/690 V AC 50/60 Hz (AC-3) 15 kW at 220/230 V AC 50/60 Hz (AC-3e) 22 kW at 380/400 V AC 50/60 Hz (AC-3e) 25 kW at 415 V AC 50/60 Hz (AC-3e) 30 kW at 440 V AC 50/60 Hz (AC-3e) 30 kW at 500 V AC 50/60 Hz (AC-3e) 33 kW at 660/690 V AC 50/60 Hz (AC-3e) 11 kW at 400 V AC 50/60 Hz (AC-4)
Motor power hp	3 hp at 115 V AC 50/60 Hz for 1 phase motors 7.5 hp at 230/240 V AC 50/60 Hz for 1 phase motors 15 hp at 200/208 V AC 50/60 Hz for 3 phases motors 15 hp at 230/240 V AC 50/60 Hz for 3 phases motors 40 hp at 460/480 V AC 50/60 Hz for 3 phases motors 40 hp at 575/600 V AC 50/60 Hz for 3 phases motors
Compatibility code	LC1D
Pole contact composition	3 NO
Protective cover	with
[ith] conventional free air thermal current	10 A (at 60 °C) for signalling circuit 80 A (at 60 °C) for power circuit
Irms rated making capacity	140 A AC for signalling circuit conforming to IEC 60947-5-1 250 A DC for signalling circuit conforming to IEC 60947-5-1 900 A at 440 V for power circuit conforming to IEC 60947
Rated breaking capacity	900 A at 440 V for power circuit conforming to IEC 60947
[icw] rated short-time withstand current	400 A 40 °C - 10 s for power circuit 810 A 40 °C - 1 s for power circuit 84 A 40 °C - 10 min for power circuit 208 A 40 °C - 1 min for power circuit 100 A - 1 s for signalling circuit 120 A - 500 ms for signalling circuit 140 A - 100 ms for signalling circuit
Associated fuse rating	10 A gG for signalling circuit conforming to IEC 60947-5-1 100 A gG at <= 690 V coordination type 1 for power circuit 100 A gG at <= 690 V coordination type 2 for power circuit
Average impedance	1.5 mOhm - Ith 80 A 50 Hz for power circuit
Power dissipation per pole	3.7 W AC-3 9.6 W AC-1 3.7 W AC-3e
[ui] rated insulation voltage	power circuit: 600 V CSA certified power circuit: 600 V UL certified signalling circuit: 690 V conforming to IEC 60947-1 signalling circuit: 600 V CSA certified signalling circuit: 600 V UL certified power circuit: 690 V conforming to IEC 60947-4-1
Overvoltage category	III
Pollution degree	3
[uimp] rated impulse withstand voltage	6 kV conforming to IEC 60947
Safety reliability level	B10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1 B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1
Control circuit type	DC standard
Coil technology	built-in bidirectional peak limiting diode suppressor
Control circuit voltage limits	0.1...0.3 Uc (-40-70 °C):drop-out DC 0.75...1.25 Uc (-40-60 °C):operational DC 1...1.25 Uc (60-70 °C):operational DC
Inrush power in w	19 W (at 20 °C)
Hold-in power consumption in w	7.4...7.4 W at 20 °C
Operating time	50 ±15 % ms closing 16...24 ms opening
Time constant	34 ms
Maximum operating rate	3600 cyc/h at 60 °C
Tightening torque	control circuit: 1.7 N.m - on EverLink BTR screw connectors - with screwdriver flat Ø 6 mm control circuit: 1.7 N.m - on EverLink BTR screw connectors - with screwdriver Philips No 2 power circuit: 8 N.m - on EverLink BTR screw connectors - cable 25-35 mm² hexagonal screw head 4 mm power circuit: 5 N.m - on EverLink BTR screw connectors - cable 1-25 mm² hexagonal screw head 4 mm control circuit: 1.7 N.m - on EverLink BTR screw connectors - with screwdriver pozidriv No 2 power circuit: 2.5 N.m - on EverLink BTR screw connectors - with screwdriver pozidriv No 2
Auxiliary contact composition	1 NO + 1 NC
Auxiliary contacts type	type mechanically linked 1 NO + 1 NC conforming to IEC 60947-5-1 type mirror contact 1 NC conforming to IEC 60947-4-1
Signalling circuit frequency	25...400 Hz
Minimum switching voltage	17 V for signalling circuit
Minimum switching current	5 mA for signalling circuit
Non-overlap time	1.5 ms on de-energisation between NC and NO contact 1.5 ms on energisation between NC and NO contact
Contact compatibility	M4
Maximum motor phase current	50 A
[uc] control circuit voltage	36 V
Protective treatment	TH conforming to IEC 60068-2-30
Permissible ambient air temperature around the device	-40...60 °C 60...70 °C with derating
Operating altitude	0...3000 m
Fire resistance	850 °C conforming to IEC 60695-2-1
Mechanical robustness	vibrations contactor open (2 Gn, 5...300 Hz) vibrations contactor closed (4 Gn, 5...300 Hz) shocks contactor closed (15 Gn for 11 ms) shocks contactor open (10 Gn for 11 ms)
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	6.0 cm
Package 1 width	14.0 cm
Package 1 length	15.0 cm
Package 1 weight	850.0 g
Green premium status for reporting	Green Premium product
Total lifecycle carbon footprint	87 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	4.598086506743781
Carbon footprint of the manufacturing phase [a1 to a3]	5 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.43105045489028165
Carbon footprint of the distribution phase [a4]	0.4 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.05614798644146796
Carbon footprint of the installation phase [a5]	0.1 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	80.1695225555932
Carbon footprint of the use phase [b2, b3, b4, b6]	80 kg CO2 eq.
Sustainable packaging	Yes
Carbon footprint of the end-of-life phase [c1 to c4]	1.30645609471181
Carbon footprint of the end-of-life phase [c1 to c4]	1 kg CO2 eq.
Pvc free	Yes
F-gas free	N/A
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	86.56126359838053
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	Yes
Packaging without single use plastic	Yes
China rohs label	1
Pvc free	Yes
End of life manual availability	ENVEOLI1503009EN
Take-back	No
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Warranty (in months)	18
