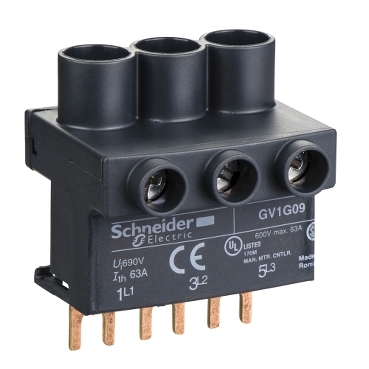

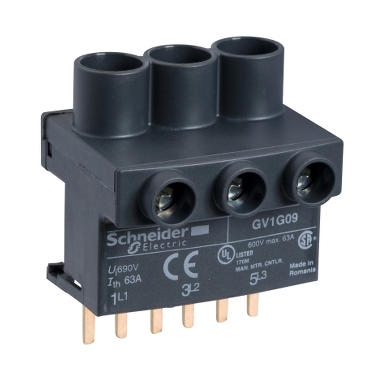

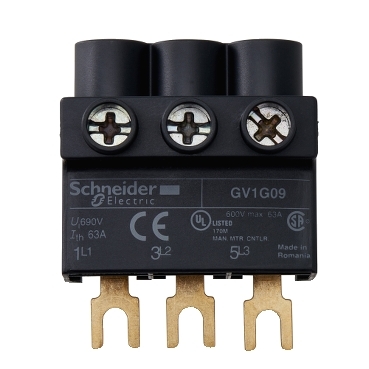

TeSys D Terminal block TeSys Deca & TeSys U, 3P, from the top, for supply to one or more GV2G busbar sets

Item Number: GV1G09

TeSys GV terminal block, 3 phases, 63A/690V, to supply busbar sets GV2G. To be inserted directly on the top terminals of the devices connected by the busbar sets. Connection to the supply cable by screw connectors.

Where To Buy

Datasheet

PDF datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

  • TeSys GV2
  • TeSys U
  • TeSys Deca

Range

Linergy

Product or component type

terminal block

Warranty

18 months

Physical

Range compatibility

  • TeSys GV2
  • TeSys Deca
  • TeSys U
  • TeSys LS1

[ie] rated operational current

63 A

Ip degree of protection

IP20 conforming to IEC 60529

Connections - terminals

  • screw clamp terminals 1 solid AWG 4
  • screw clamp terminals 1 cable(s) 1.5-16 mm² flexible with cable end
  • screw clamp terminals 1 cable(s) 1.5-16 mm² flexible without cable end
  • screw clamp terminals 1 cable(s) 1.5-25 mm² solid
  • screw clamp terminals 2 cable(s) 1.5-4 mm² flexible with cable end
  • screw clamp terminals 2 cable(s) 1.5-6 mm² solid
  • screw clamp terminals 2 cable(s) 1.5-4 mm² flexible without cable end
  • screw clamp terminals 1 flexible AWG 4

Net weight

0.04 kg

Product certifications

  • CE
  • UKCA

Reach free of svhc

Yes

Toxic heavy metal free

Yes

Mercury free

Yes

Rohs exemption information

Yes

Environmental disclosure

ENVPEP2207006

Eu rohs directive

Compliant

Reach regulation

Free of Substances of Very High Concern above the threshold

China rohs regulation

 Pro-active China RoHS declaration (out of China RoHS legal scope)

Others

Life cycle assessment data

No

If one of the deliverables is not relevant please give the reason

Accessory

Substance regulation data deliverable

Yes

Legacy weee scope

In

Package 1 bare product quantity

1

Package 2 bare product quantity

70

Package 3 bare product quantity

1120

Average percentage of recycled plastic content

0 %

At least in Europe

Weee label

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Product name

FT

Device short name

GV1G

Accessory / separate part category

connection accessory

Poles description

3P

Mounting location

top

[ui] rated insulation voltage

690 V conforming to IEC 60947-1

Tightening torque

  • 1.7...1.7 N.m - on screw clamp terminals
  • 2.2.2 N.m - on connector

Compatibility code

GV1G

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

4.500 cm

Package 1 width

6.000 cm

Package 1 length

7.000 cm

Package 1 weight

49.000 g

Unit type of package 2

S02

Number of units in package 2

70

Package 2 height

15.000 cm

Package 2 width

30.000 cm

Package 2 length

40.000 cm

Package 2 weight

3.706 kg

Unit type of package 3

P06

Number of units in package 3

1120

Package 3 height

75.000 cm

Package 3 width

60.000 cm

Package 3 length

80.000 cm

Package 3 weight

69.540 kg

Green premium status for reporting

Green Premium product

Sustainable packaging

No

F-gas free

N/A

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A

Average percentage of recycled metal content

0 %

Packaging made with recycled cardboard

Yes

Packaging without single use plastic

No

End of life manual availability

ENVEOLI2207006

Take-back

No

Weee label

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Warranty (in months)

18
Show all specifications
