TeSys D Terminal block TeSys Deca, Everlink BTR screw connectors, 3P, for Contactors LC1D40A-D80A

Home ProductsIndustrialTeSysTerminal block

TeSys D Terminal block TeSys Deca, Everlink BTR screw connectors, 3P, for Contactors LC1D40A-D80A

Item Number: LAD96560

TeSys Deca terminal block, for mounting on LRD3xx, LR3D3xx thermal overload relays or as replacement part, for 3-pole contactors LC1D40A-D80A. It provides connection by EverLink BTR screw terminals. It ensures an IP20 protection on front.

Where To Buy

Datasheet

PDF datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

TeSys Deca

Range

TeSys

Product or component type

terminal block

Product compatibility

  • LRD3
  • LRD3..L
  • LR3D3
  • LC1D40A...D80A

Warranty

18 months

Physical

Range compatibility

  • TeSys TeSys D
  • TeSys TeSys LRD
  • TeSys TeSys Deca

Connections - terminals

EverLink BTR screw connectors

Net weight

0.087 kg

Reach free of svhc

Yes

Toxic heavy metal free

Yes

Mercury free

Yes

Rohs exemption information

Yes

Eu rohs directive

Compliant

Reach regulation

Free of Substances of Very High Concern above the threshold

China rohs regulation

 Pro-active China RoHS declaration (out of China RoHS legal scope)

California proposition 65

WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov

Others

Life cycle assessment data

No

If one of the deliverables is not relevant please give the reason

ACC

Substance regulation data deliverable

Yes

Legacy weee scope

In

Package 1 bare product quantity

1

Package 2 bare product quantity

5

Package 3 bare product quantity

50

Average percentage of recycled plastic content

0 %

At least in Europe

Weee label

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Device short name

LAD9

Accessory / separate part category

connection accessory

Poles description

3P

Compatibility code

LAD9

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

1.800 cm

Package 1 width

6.200 cm

Package 1 length

5.500 cm

Package 1 weight

86.000 g

Unit type of package 2

BB1

Number of units in package 2

5

Package 2 height

6.400 cm

Package 2 width

7.400 cm

Package 2 length

13.600 cm

Package 2 weight

458.000 g

Unit type of package 3

S01

Number of units in package 3

50

Package 3 height

15.000 cm

Package 3 width

15.000 cm

Package 3 length

40.000 cm

Package 3 weight

4.805 kg

Sustainable packaging

No

F-gas free

N/A

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A

Average percentage of recycled metal content

0 %

Packaging made with recycled cardboard

Yes

Packaging without single use plastic

No

Take-back

No

Weee label

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Warranty (in months)

18
Show all specifications

Documents & downloads

hide show
Filter items

  • All

  • CAD Files and Packs

  • Technical Data Catalogues

  • Installation Instruction

  • Technical Drawing

  • Declaration of Conformity

  • Declaration of Conformity (Sustainability)

Important: Some software files may need a mySchneider or Club login to download.
LAD96560_CAD_DOC
ZIP

LAD96560_CAD_DOC

VERSION

1.0

DATE

29 Sep 2023

REVISION

1.0

DOWNLOAD (ZIP) 168.6 KB
TeSys GV3 - D40A-D65A EVERLINK TERMINAL BLOCK 3P - 3D CAD
ZIP

TeSys GV3 - D40A-D65A EVERLINK TERMINAL BLOCK 3P - 3D CAD

VERSION

1.0

DATE

03 Mar 2022

REVISION

1.0

DOWNLOAD (ZIP) 778.1 KB
TeSys - Catalog 2025 - Innovative and connected solutions for motor starters
ZIP

TeSys - Catalog 2025 - Innovative and connected solutions for motor starters

VERSION

16.0

DATE

30 Jul 2025

REVISION

16.0

DOWNLOAD (ZIP) 83.4 MB
TeSys Catalogue - 2022 - Chapter B11 - Overload relays TeSys LRK, Deca, Giga, RM1, LT3
ZIP

TeSys Catalogue - 2022 - Chapter B11 - Overload relays TeSys LRK, Deca, Giga, RM1, LT3

VERSION

9.0

DATE

21 Feb 2024

REVISION

9.0

DOWNLOAD (ZIP) 5.6 MB
LRD3.., LRD3..3, LRD3..L, LRD3..L3, LR3D3.., LR3D3..3 - Everlink 3-pole thermal overload relays 18.5 to 37 kW - Instruction sheet
ZIP

LRD3.., LRD3..3, LRD3..L, LRD3..L3, LR3D3.., LR3D3..3 - Everlink 3-pole thermal overload relays 18.5 to 37 kW - Instruction sheet

VERSION

2.1

DATE

13 Jul 2022

REVISION

2.1

DOWNLOAD (ZIP) 3.3 MB

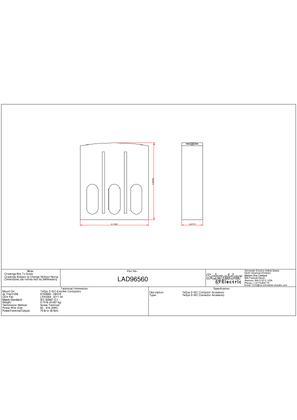

LAD96560_2DSalesDrawing_PDF
