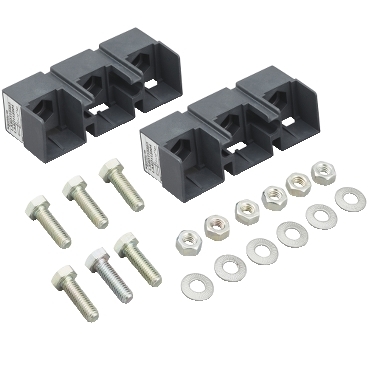

TeSys D Terminal block 3P, Ring lug, for LC1D115 or LC1D150

Home ProductsIndustrialTeSysTerminal block

TeSys D Terminal block 3P, Ring lug, for LC1D115 or LC1D150

Item Number: LA9D115503

This product is TeSys Deca terminal block. It is used for 3P LC1D115 or LC1D150 contactors with ring-lug terminals.

Where To Buy

Datasheet

PDF datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

TeSys Deca

Range

TeSys

Product or component type

terminal block

Product compatibility

  • LC1D150
  • LC1D115

Warranty

18 months

Physical

Range compatibility

  • TeSys TeSys D
  • TeSys TeSys Deca

Connections - terminals

lugs-ring terminals

Net weight

0.3 kg

Quantity per set

2

Reach free of svhc

Yes

Toxic heavy metal free

Yes

Mercury free

Yes

Rohs exemption information

Yes

Environmental disclosure

ENVPEP060301EN

Eu rohs directive

Compliant

Reach regulation

Free of Substances of Very High Concern above the threshold

China rohs regulation

 Pro-active China RoHS declaration (out of China RoHS legal scope)

California proposition 65

WARNING: Cancer - www.P65Warnings.ca.gov

Others

Life cycle assessment data

No

If one of the deliverables is not relevant please give the reason

acc

Substance regulation data deliverable

Yes

Legacy weee scope

Out

Package 1 bare product quantity

1

Average percentage of recycled plastic content

0 %

At least in Europe

Weee label

No

Device short name

LA9D

Accessory / separate part category

connection accessory

Poles description

3P

Compatibility code

LA9D

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

6.300 cm

Package 1 width

11.700 cm

Package 1 length

15.900 cm

Package 1 weight

246.000 g

Green premium status for reporting

Green Premium product

Sustainable packaging

No

F-gas free

N/A

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A

Average percentage of recycled metal content

0 %

Packaging made with recycled cardboard

Yes

Packaging without single use plastic

No

End of life manual availability

ENVEOLI100405EN

Take-back

No

Warranty (in months)

18
Show all specifications
