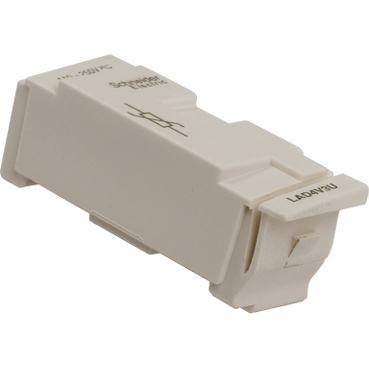

TeSys D Suppressor Module Varistor,110...250V AC/DC

Item Number: LAD4V3U

1 PCE 0

TeSys Deca suppressor module, for LC1D40A-D80A, LC1DT60A-DT80A contactors. To be used with 110-250V AC or DC control circuit voltage, it provides a varistor protection limiting the transient voltage to 2 Uc max. Clip-on front mounting, overall size of the contactor is unchanged.

Where To Buy

Datasheet

Download

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	3389119410229	-
10	CAR	13389119410226	-

Specifications

Design

Range of product	TeSys Deca
Range	TeSys TeSys Deca
Product or component type	suppressor module
Product compatibility	3P LC1D40A...D80A 4P LC1DT60A...DT80A
Warranty	18 months

Physical

Mounting mode	by clips
Net weight	0.02 kg
Standards	IEC 60947-5-1 EN 60947-5-1 CSA C22.2 No 60947-5-1 UL 60947-5-1 GB/T 14048.5
Product certifications	UL CSA
Ip degree of protection	IP2X conforming to IEC 60529
Ambient air temperature for operation	-25...55 °C
Ambient air temperature for storage	-40...80 °C
Reach free of svhc	Yes
Toxic heavy metal free	Yes
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP1112053EN
Reach regulation	Free of Substances of Very High Concern above the threshold
China rohs regulation	Product out of China RoHS scope
Eu rohs directive	Compliant

Others

Package 1 bare product quantity	1
Legacy weee scope	In
Substance regulation data deliverable	Yes
Life cycle assessment data	Yes
Warranty duration(in months) bmecat	18
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Average percentage of recycled plastic content	0 %
	At least in Europe
Device short name	LAD4
Mounting location	side
Suppressor technology	varistor (peak limiting)
[uc] control circuit voltage	110...250 V AC/DC 50/60 Hz
Maximum peak voltage	2 Uc
Compatibility code	LAD4
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	2.0 cm
Package 1 width	2.0 cm
Package 1 length	6.0 cm
Package 1 weight	17.0 g
Unit type of package 2	BB1
Number of units in package 2	10
Package 2 height	6.2 cm
Package 2 width	7.5 cm
Package 2 length	12.0 cm
Package 2 weight	188.0 g
Unit type of package 3	S01
Number of units in package 3	100
Package 3 height	15.0 cm
Package 3 width	15.0 cm
Package 3 length	40.0 cm
Package 3 weight	2.07 kg
Green premium status for reporting	Green Premium product
Total lifecycle carbon footprint	0.2 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	0.18024469820554648
Carbon footprint of the manufacturing phase [a1 to a3]	0.2 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.0023693311582381727
Carbon footprint of the distribution phase [a4]	0 kg CO2 eq.
Sustainable packaging	No
Carbon footprint of the end-of-life phase [c1 to c4]	0.05996247960848286
Carbon footprint of the end-of-life phase [c1 to c4]	0.1 kg CO2 eq.
F-gas free	N/A
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	0.2425765089722675
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	Yes
Packaging without single use plastic	No
China rohs label	1
End of life manual availability	N/A
Take-back	No
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Warranty (in months)	18
