TeSys D Suppressor Module Varistor, 24...48V AC/DC

Home ProductsIndustrialTeSysSuppressor Module

TeSys D Suppressor Module Varistor, 24...48V AC/DC

Item Number: LAD4V3E

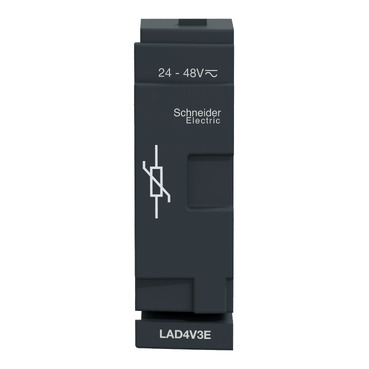

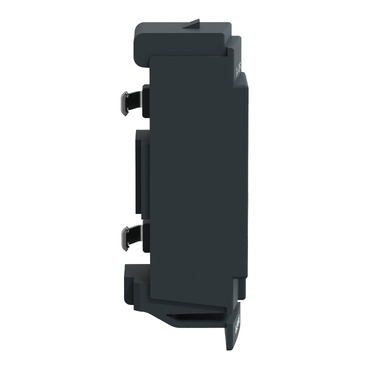

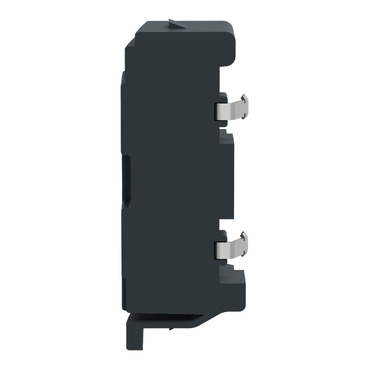

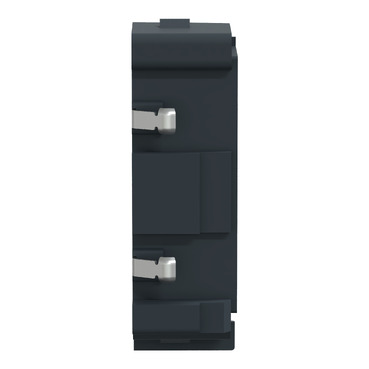

TeSys Deca suppressor module, for LC1D40A-D80A, LC1DT60A-DT80A contactors. To be used with 24-48V AC or DC control circuit voltage, it provides a varistor protection limiting the transient voltage to 2 Uc max. Clip-on front mounting, overall size of the contactor is unchanged.

Where To Buy

Datasheet

PDF datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

TeSys Deca

Range

  • TeSys
  • TeSys Deca

Product or component type

suppressor module

Product compatibility

  • 3P LC1D40A...D80A
  • 4P LC1DT60A...DT80A

Warranty

18 months

Physical

Mounting mode

by clips

Net weight

0.02 kg

Standards

  • IEC 60947-5-1
  • EN 60947-5-1
  • CSA C22.2 No 60947-5-1
  • UL 60947-5-1
  • GB/T 14048.5

Product certifications

  • UL
  • CSA

Ip degree of protection

IP2X conforming to IEC 60529

Ambient air temperature for operation

-25...55 °C

Ambient air temperature for storage

-40...80 °C

Reach free of svhc

Yes

Toxic heavy metal free

Yes

Mercury free

Yes

Rohs exemption information

Yes

Environmental disclosure

ENVPEP111253EN

Eu rohs directive

Compliant

Reach regulation

Free of Substances of Very High Concern above the threshold

China rohs regulation

 Pro-active China RoHS declaration (out of China RoHS legal scope)

Others

Life cycle assessment data

Yes

Substance regulation data deliverable

Yes

Legacy weee scope

In

Package 1 bare product quantity

1

Package 2 bare product quantity

10

Package 3 bare product quantity

100

Average percentage of recycled plastic content

0 %

At least in Europe

Weee label

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Device short name

LAD4

Mounting location

side

Suppressor technology

varistor (peak limiting)

[uc] control circuit voltage

  • 24...48 V AC/DC
  • 50/60 Hz

Maximum peak voltage

2 Uc

Compatibility code

LAD4

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

1.500 cm

Package 1 width

6.000 cm

Package 1 length

8.000 cm

Package 1 weight

17.000 g

Unit type of package 2

BB1

Number of units in package 2

10

Package 2 height

6.500 cm

Package 2 width

7.400 cm

Package 2 length

12.500 cm

Package 2 weight

189.000 g

Unit type of package 3

S01

Number of units in package 3

100

Package 3 height

15.000 cm

Package 3 width

15.000 cm

Package 3 length

40.000 cm

Package 3 weight

2.062 kg

Total lifecycle carbon footprint

0.2 kg CO2 eq.

Carbon footprint of the manufacturing phase [a1 to a3]

0.18024469820554648

Carbon footprint of the manufacturing phase [a1 to a3]

0.2 kg CO2 eq.

Carbon footprint of the distribution phase [a4]

0.0023693311582381727

Carbon footprint of the distribution phase [a4]

0 kg CO2 eq.

Sustainable packaging

No

Carbon footprint of the end-of-life phase [c1 to c4]

0.05996247960848286

Carbon footprint of the end-of-life phase [c1 to c4]

0.1 kg CO2 eq.

F-gas free

N/A

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A

Total lifecycle carbon footprint

0.2425765089722675

Average percentage of recycled metal content

0 %

Packaging made with recycled cardboard

Yes

Packaging without single use plastic

No

End of life manual availability

N/A

Take-back

No

Weee label

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Warranty (in months)

18
Show all specifications
