TeSys D Suppressor Module RC circuit, 110...240V AC

Item Number: LA4DA2U

1 PCE 0

TeSys Deca suppressor module, for LC.D80-D150 (3P), LC.D40-D115 (4P) contactors. To be used with 110-240V AC control circuits, it provides RC protection limiting the transient voltage to 3 Uc max. Mounting on top of contactor, screw fixing and connection on coil terminals.

Where To Buy

Datasheet

Download

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	3389110233063	-

Specifications

Design

Range of product	TeSys Deca
Range	TeSys
Product or component type	suppressor module
Product compatibility	3P LC1D80...D150 4P LC1D80004...D115004 4P LC1D40008...D80008
Warranty	18 months

Physical

Mounting mode	by screws
Net weight	0.018 kg
Standards	IEC 60947-5-1 EN 60947-5-1 UL 60947-5-1 CSA C22.2 No 60947-5-1 GB/T 14048.5
Product certifications	UL CSA
Ip degree of protection	IP2X conforming to IEC 60529
Ambient air temperature for operation	-25...55 °C
Ambient air temperature for storage	-40...80 °C
Reach free of svhc	Yes
Toxic heavy metal free	Yes
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP1112053EN
Reach regulation	Free of Substances of Very High Concern above the threshold
China rohs regulation	Product out of China RoHS scope
Eu rohs directive	Compliant

Others

Life cycle assessment data	Yes
Substance regulation data deliverable	Yes
Legacy weee scope	In
Package 1 bare product quantity	1
	At least in Europe
Average percentage of recycled plastic content	0 %
Package 3 bare product quantity	2496
Package 2 bare product quantity	78
Warranty duration(in months) bmecat	18
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Device short name	LA4D
Mounting location	top
Suppressor technology	RC circuit
[uc] control circuit voltage	110...240 V AC 50/60 Hz
Maximum peak voltage	3 Uc
Compatibility code	LA4D
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	5.000 cm
Package 1 width	4.200 cm
Package 1 length	2.700 cm
Package 1 weight	22.000 g
Unit type of package 2	S01
Number of units in package 2	78
Package 2 height	15.000 cm
Package 2 width	15.000 cm
Package 2 length	40.000 cm
Package 2 weight	1.870 kg
Unit type of package 3	P06
Number of units in package 3	2496
Package 3 height	75.000 cm
Package 3 width	60.000 cm
Package 3 length	80.000 cm
Package 3 weight	70.612 kg
Total lifecycle carbon footprint	0.2 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	0.1622202283849918
Carbon footprint of the manufacturing phase [a1 to a3]	0.2 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.002132398042414355
Carbon footprint of the distribution phase [a4]	0 kg CO2 eq.
Sustainable packaging	No
Carbon footprint of the end-of-life phase [c1 to c4]	0.05396623164763457
Carbon footprint of the end-of-life phase [c1 to c4]	0.1 kg CO2 eq.
F-gas free	N/A
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	0.21831885807504073
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	Yes
Packaging without single use plastic	No
China rohs label	1
End of life manual availability	N/A
Take-back	No
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Warranty (in months)	18

Show all specifications

Documents & downloads

All
CAD Files and Packs
Technical Data Catalogues
Installation Instruction
Environmental Disclosure
Technical Drawing
Declaration of Conformity
Certificates (MSDS)
Declaration of Conformity (Sustainability)

Important: Some software files may need a mySchneider or Club login to download.

Colour ()

TeSys D Suppressor Module RC circuit, 110...240V AC

Item Number: LA4DA2U

Colour ()

Datasheet

Barcode

Specifications

Documents & downloads

All

CAD Files and Packs

Technical Data Catalogues

Installation Instruction

Environmental Disclosure

Technical Drawing

Declaration of Conformity

Certificates (MSDS)

Declaration of Conformity (Sustainability)

Suppressor module - 3D CAD

TeSys - Catalog 2026 - Innovative and connected solutions for motor starters

LA1/LA9,LD5-LB Contactors breakers and reversing contactors breakers

LA1, LB1 Integral 18 contactors breakers

LA9, LA1 Integral 18 contactors breakers

TeSys Deca U-Line Transient Suppressor

Additional contactor accessories Suppressor module - Screwed onto coil - Dimensions - Technical drawing

Additional contactor accessories Suppressor module - Screwed onto coil - Dimensions - Technical drawing

Additional contactor accessories Suppressor module - Screwed onto coil - Dimensions - Technical drawing

EU Declaration TeSys D -LC1D80-95&LC2D80-95

UKCA Declaration TeSysD_LC.D115-150

EU Declaration TeSys D_LC1D115-150 & LC2D115-150

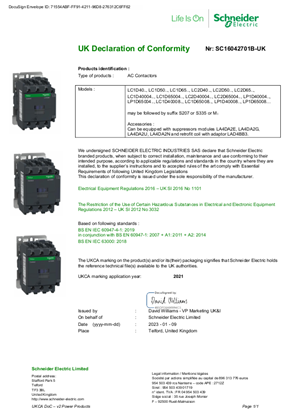

UKCA Declaration TeSysD_LC1D80-95&LC2D80-95

UKCA Declaration TeSysD_LC1D40-65&LC2D40-65

EU Declaration TeSys D_LC1D40-65&LC2D40-65

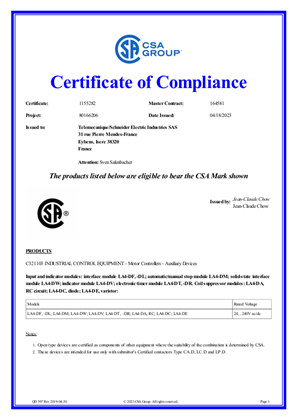

CSA Certificate_ TeSys D_LA4D

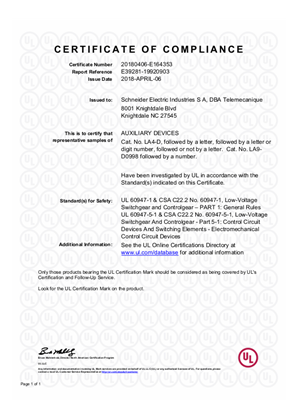

UL_Certificate_TeSys D_LA4D&LA9D
