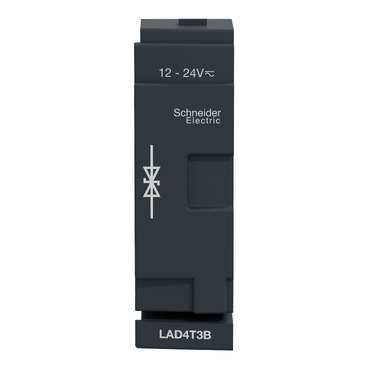

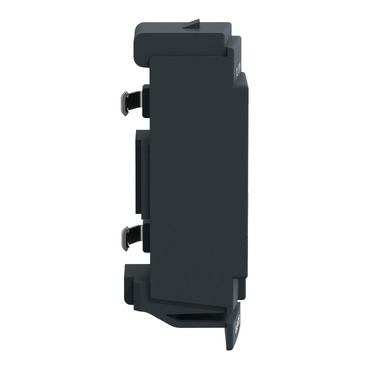

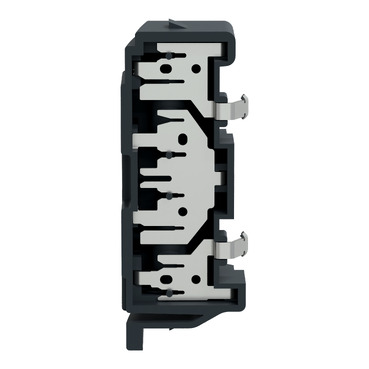

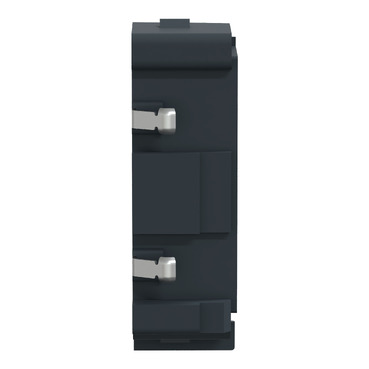

TeSys D Suppressor module Bidirectional peak limiting diode, 24V AC/DC

Item Number: LAD4T3B

1 PCE 0

TeSys Deca suppressor module, for LC1D40A-D80A, LC1DT60A-DT80A contactors. To be used with 12-24V AC or DC control circuit voltage, it provides a bidirectional peak limiting diodes protection limiting the transient voltage to 2 Uc max. Clip-on front mounting, overall size of the contactor is unchanged.

Where To Buy

Datasheet

Download

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	BAG	3389119410243	-
10	CAR	13389119410240	-

Specifications

Design

Range of product	TeSys Deca
Range	TeSys TeSys Deca
Product or component type	suppressor module
Product compatibility	3P LC1D40A...D80A 4P LC1DT60A...DT80A
Warranty	18 months

Physical

Mounting mode	by clips
Net weight	0.02 kg
Standards	IEC 60947-5-1 EN 60947-5-1 CSA C22.2 No 60947-5-1 UL 60947-5-1 GB/T 14048.5
Product certifications	UL CSA
Ip degree of protection	IP2X conforming to IEC 60529
Ambient air temperature for operation	-25...55 °C
Ambient air temperature for storage	-40...80 °C
Reach free of svhc	Yes
Toxic heavy metal free	Yes
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP1112053EN
Reach regulation	Free of Substances of Very High Concern above the threshold
China rohs regulation	Product out of China RoHS scope
Eu rohs directive	Compliant

Others

Life cycle assessment data	Yes
Substance regulation data deliverable	Yes
Legacy weee scope	In
Package 1 bare product quantity	1
Average percentage of recycled plastic content	0 %
	At least in Europe
Package 3 bare product quantity	100
Package 2 bare product quantity	10
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Warranty duration(in months) bmecat	18
Device short name	LAD4
Mounting location	front
Suppressor technology	bidirectional peak limiting diode
[uc] control circuit voltage	12...24 V AC/DC 50/60 Hz
Maximum peak voltage	2 Uc
Compatibility code	LAD4
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	1.500 cm
Package 1 width	5.500 cm
Package 1 length	8.000 cm
Package 1 weight	17.000 g
Unit type of package 2	BB1
Number of units in package 2	10
Package 2 height	6.500 cm
Package 2 width	7.400 cm
Package 2 length	12.300 cm
Package 2 weight	188.000 g
Unit type of package 3	S01
Number of units in package 3	100
Package 3 height	15.000 cm
Package 3 width	15.000 cm
Package 3 length	40.000 cm
Package 3 weight	2.044 kg
Green premium status for reporting	Green Premium product
Total lifecycle carbon footprint	0.2 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	0.18024469820554648
Carbon footprint of the manufacturing phase [a1 to a3]	0.2 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.0023693311582381727
Carbon footprint of the distribution phase [a4]	0 kg CO2 eq.
Sustainable packaging	No
Carbon footprint of the end-of-life phase [c1 to c4]	0.05996247960848286
Carbon footprint of the end-of-life phase [c1 to c4]	0.1 kg CO2 eq.
F-gas free	N/A
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	0.2425765089722675
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	Yes
Packaging without single use plastic	No
China rohs label	1
End of life manual availability	N/A
Take-back	No
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Warranty (in months)	18

Show all specifications

Documents & downloads

All
CAD Files and Packs
Technical Data Catalogues
Environmental Disclosure
Installation Instruction
Certificates (MSDS)
Declaration of Conformity
Declaration of Conformity (Sustainability)
Product Change Notification

Important: Some software files may need a mySchneider or Club login to download.

Colour ()

TeSys D Suppressor module Bidirectional peak limiting diode, 24V AC/DC

Item Number: LAD4T3B

Colour ()

Datasheet

Barcode

Specifications

Documents & downloads

All

CAD Files and Packs

Technical Data Catalogues

Environmental Disclosure

Installation Instruction

Certificates (MSDS)

Declaration of Conformity

Declaration of Conformity (Sustainability)

Product Change Notification

D40A-D65A BIDIRECT DIODE 73-125 VAC/DC - 3D CAD

TeSys - Catalog 2026 - Innovative and connected solutions for motor starters

TeSys Deca U-Line Transient Suppressor

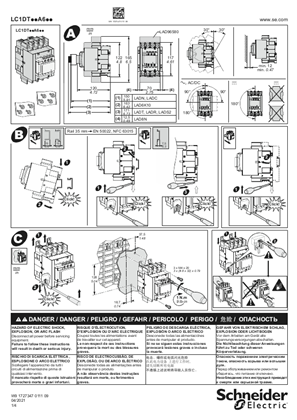

LC1D.., LC2D.. and T02DN.. 3-pole contactors and reversing contactors 40 to 80 A AC-3 - Instruction Sheet

LC1DT..A, LC1DT..A3 Everlink 4-pole contactors 60 to 80 A AC-1 - Instruction sheet

LC1DT..A6 4-pole contactors ring-type connection 60 to 80 A AC-1 - Instruction sheet

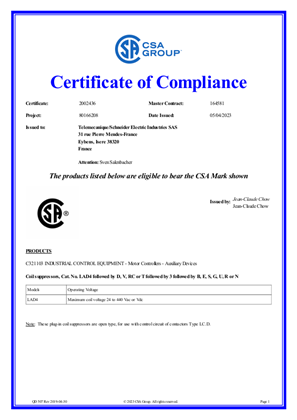

CSA Certificate_TeSys D_LAD4D,LAD4V,LAD4RC,LAD4T

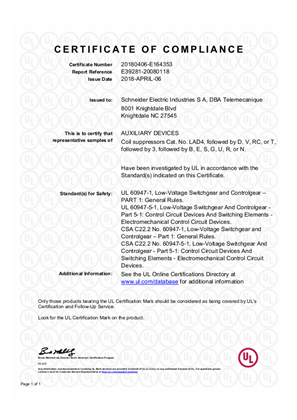

UL_Certificate_TeSys D_LAD4D,LAD4V,LAD4RC,LAD4T_new range

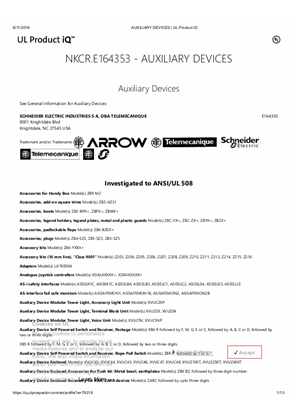

UL Certificate E164353 NKCR Auxiliary Devices
