TeSys D Star-delta mounting plate for TeSys Deca - D80

Item Number: LA9D80973

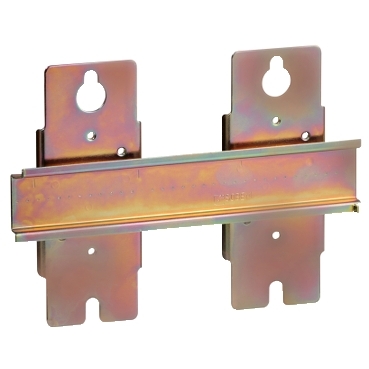

This product is a star-delta mounting plate for TeSys Deca LC1D80.

Where To Buy

Datasheet

PDF datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

TeSys Deca

Range

Linergy

Product or component type

mounting plate

Product compatibility

LC1D80

Warranty

18 months

Physical

Range compatibility

  • TeSys D
  • TeSys TeSys Deca

Net weight

0.3 kg

Reach free of svhc

Yes

Toxic heavy metal free

Yes

Mercury free

Yes

Rohs exemption information

Yes

Environmental disclosure

ENVPEP110205EN

Eu rohs directive

Compliant

Reach regulation

Free of Substances of Very High Concern above the threshold

China rohs regulation

 Pro-active China RoHS declaration (out of China RoHS legal scope)

Others

Life cycle assessment data

No

If one of the deliverables is not relevant please give the reason

acc

Substance regulation data deliverable

Yes

Legacy weee scope

In

Package 1 bare product quantity

1

Average percentage of recycled plastic content

0 %

At least in Europe

Weee label

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Product name

  • TR
  • TeSys Deca

Device short name

LA9D

Accessory / separate part category

connection accessory

Compatibility code

LA9D

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

2.100 cm

Package 1 width

14.700 cm

Package 1 length

31.500 cm

Package 1 weight

320.000 g

Sustainable packaging

Yes

F-gas free

N/A

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A

Average percentage of recycled metal content

0 %

Packaging made with recycled cardboard

Yes

Packaging without single use plastic

Yes

End of life manual availability

N/A

Take-back

No

Weee label

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Warranty (in months)

18
