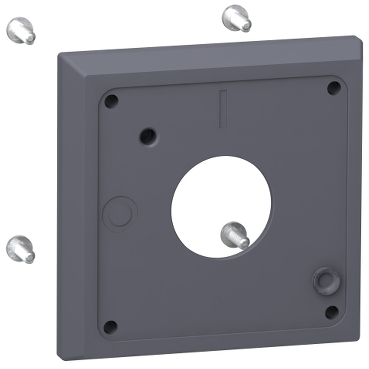

TeSys U Spacer base for rotary handle mounting TeSys Deca, retrofit accessory

Home ProductsIndustrialTeSysSpacer base for rotary handle mounting

TeSys U Spacer base for rotary handle mounting TeSys Deca, retrofit accessory

Item Number: GVAPP1

Where To Buy

Datasheet

PDF datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

  • TeSys GV2
  • TeSys GV3
  • TeSys U
  • TeSys Deca

Range

TeSys

Product or component type

universal retrofit

Product compatibility

  • GV2APN01
  • GV2APN02
  • GV2APN03
  • GV2APN04
  • GV3APN01
  • GV3APN02
  • GV3APN03
  • GV3APN04
  • LU9APN21
  • LU9APN22
  • LU9APN24

Warranty

18 months

Physical

Net weight

0.16 kg

Mercury free

Yes

Rohs exemption information

Yes

Environmental disclosure

ENVPEP2207006

Eu rohs directive

Compliant with Exemptions

Reach regulation

Reference contains Substances of Very High Concern above the threshold

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

California proposition 65

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Others

Legacy weee scope

In

Package 1 bare product quantity

1

Average percentage of recycled plastic content

0 %

At least in Europe

Weee label

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Device short name

GVAP

Accessory / separate part category

control accessory

Compatibility code

GVAP

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

1.500 cm

Package 1 width

9.000 cm

Package 1 length

9.000 cm

Package 1 weight

28.000 g

Unit type of package 2

S03

Number of units in package 2

80

Package 2 height

30.000 cm

Package 2 width

30.000 cm

Package 2 length

40.000 cm

Package 2 weight

2.703 kg

Sustainable packaging

No

F-gas free

N/A

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A

Average percentage of recycled metal content

0 %

Packaging made with recycled cardboard

Yes

Packaging without single use plastic

No

Scip number

66ab381c-81b1-42a8-ae7a-ce3f5adb691a

End of life manual availability

ENVEOLI2207006

Take-back

No

Weee label

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Warranty (in months)

18
Show all specifications
