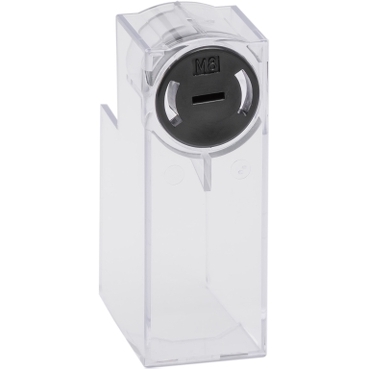

TeSys D Shrouds for 3 poles TeSys model Deca

Item Number: LA9D115703

1 PCE 0

TeSys Deca protective cover, for 3-pole contactors LC1D1156, LC1D1506. For protection of lug type terminals. It conforms to RoHS/REACh regulation.

Where To Buy

Datasheet

Download

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	CAR	3389110078411	-

Specifications

Design

Range of product	TeSys Deca
Range	TeSys
Product or component type	protective cover for connector
Product compatibility	LC1D150 LC1D115
Warranty	18 months

Physical

Net weight	0.25 kg
Reach free of svhc	Yes
Toxic heavy metal free	Yes
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP0603001EN
Reach regulation	Free of Substances of Very High Concern above the threshold
China rohs regulation	Product out of China RoHS scope
Eu rohs directive	Compliant
California proposition 65	WARNING: This product can expose you to chemicals including: Dichloromethane (Methylene chloride), which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov

Others

Life cycle assessment data	No
If one of the deliverables is not relevant please give the reason	ACC
Substance regulation data deliverable	Yes
Legacy weee scope	In
Package 1 bare product quantity	6
Package 2 bare product quantity	126
Average percentage of recycled plastic content	0 %
	At least in Europe
Warranty duration(in months) bmecat	18
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Device short name	LA9D
Accessory / separate part category	installation accessory
Poles description	3P
Compatibility code	LA9D
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	7 cm
Package 1 width	15.8 cm
Package 1 length	8.2 cm
Package 1 weight	264 g
Unit type of package 2	S03
Number of units in package 2	21
Package 2 height	30 cm
Package 2 width	30 cm
Package 2 length	40 cm
Package 2 weight	5.995 kg
Green premium status for reporting	Green Premium product
Sustainable packaging	Yes
F-gas free	N/A
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	Yes
Packaging without single use plastic	Yes
China rohs label	1
End of life manual availability	ENVEOLI100405EN
Take-back	No
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Warranty (in months)	18

Show all specifications

Documents & downloads

All
Technical Data Catalogues
End of Life Manual
Environmental Disclosure
Installation Instruction
Declaration of Conformity (Sustainability)

Important: Some software files may need a mySchneider or Club login to download.

ZIP

TeSys - Catalog 2026 - Innovative and connected solutions for motor starters

VERSION

17.0

DATE

11 May 2026

REVISION

17.0

DOWNLOAD (ZIP) 51 MB

ZIP

TeSys Deca Contactor 115A 3P 230V AC

VERSION

4.0

DATE

10 Apr 2026

REVISION

4.0

DOWNLOAD (ZIP) 366.7 KB

ZIP

TeSys Deca Contactor 115A 3P 230V AC

VERSION

1.0

DATE

01 Dec 2025

REVISION

1.0

DOWNLOAD (ZIP) 651.2 KB

ZIP

LC1/LC2 D115 D150 Contactors / Reversing contactors - Instruction Sheet

VERSION

9.0

DATE

21 May 2024

REVISION

9.0

DOWNLOAD (ZIP) 2.3 MB

ZIP

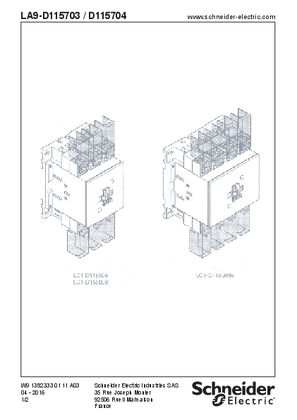

LA5 D115703/D115704 Terminal covers for LC1 D115 contactors
