TeSys D Set of power connections parallel and reverser bars, for 3P reversing Contactors assembly, LC1D115-D150

Home ProductsIndustrialTeSysSet of power connections

TeSys D Set of power connections parallel and reverser bars, for 3P reversing Contactors assembly, LC1D115-D150

Item Number: LA9D11569

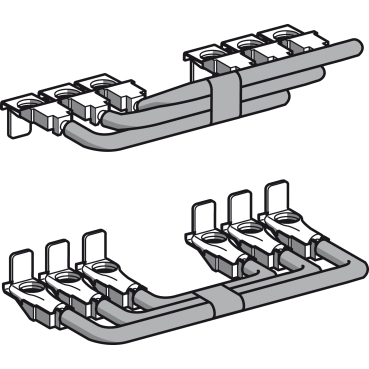

TeSys Deca set of power connections, for 3-pole contactors LC1D115, LC1D150. For assembling contactors in reversing motor starters. It includes a set of parallel bars for the line side, a set of reverser bars for the load side.

Where To Buy

Datasheet

PDF datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

TeSys Deca

Range

  • TeSys
  • Linergy

Product or component type

set of connections

Product compatibility

  • LC1D115
  • LC1D150

Warranty

18 months

Physical

Range compatibility

  • TeSys TeSys D
  • TeSys TeSys Deca

Net weight

1.45 kg

Reach free of svhc

Yes

Toxic heavy metal free

Yes

Mercury free

Yes

Rohs exemption information

Yes

Environmental disclosure

ENVPEP060301EN

Eu rohs directive

Compliant

Reach regulation

Free of Substances of Very High Concern above the threshold

China rohs regulation

 Pro-active China RoHS declaration (out of China RoHS legal scope)

California proposition 65

WARNING: Cancer - www.P65Warnings.ca.gov

Others

Life cycle assessment data

No

If one of the deliverables is not relevant please give the reason

acc

Substance regulation data deliverable

Yes

Legacy weee scope

In

Package 1 bare product quantity

1

Package 2 bare product quantity

9

Average percentage of recycled plastic content

0 %

At least in Europe

Weee label

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Device short name

LA9D

Accessory / separate part category

connection accessory

Poles description

3P

Electrical circuit type

reversing contactor

Compatibility code

LA9D

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

8.400 cm

Package 1 width

9.000 cm

Package 1 length

34.500 cm

Package 1 weight

1.192 kg

Unit type of package 2

S03

Number of units in package 2

9

Package 2 height

30.000 cm

Package 2 width

30.000 cm

Package 2 length

40.000 cm

Package 2 weight

11.153 kg

Green premium status for reporting

Green Premium product

Sustainable packaging

No

F-gas free

N/A

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A

Average percentage of recycled metal content

0 %

Packaging made with recycled cardboard

Yes

Packaging without single use plastic

No

End of life manual availability

ENVEOLI100405EN

Take-back

No

Weee label

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Warranty (in months)

18
Show all specifications
