TeSys D Set of power connections parallel bars, for 4P changeover Contactors assembly, LC1D115004

Item Number: LA9D11570

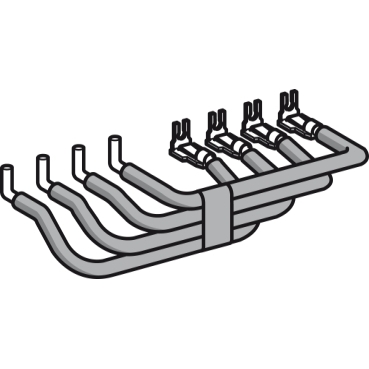

This product is set of parallel bars for 4P LC1D115004 changeover contactors.

Where To Buy

Datasheet

PDF datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

TeSys Deca

Range

  • TeSys
  • Linergy

Product or component type

set of connections

Product compatibility

LC1D115004

Warranty

18 months

Physical

Range compatibility

  • TeSys TeSys D
  • TeSys TeSys Deca

Net weight

1.1 kg

Reach free of svhc

Yes

Toxic heavy metal free

Yes

Mercury free

Yes

Rohs exemption information

Yes

Environmental disclosure

ENVPEP060301EN

Eu rohs directive

Compliant

Reach regulation

Free of Substances of Very High Concern above the threshold

China rohs regulation

 Pro-active China RoHS declaration (out of China RoHS legal scope)

California proposition 65

WARNING: Cancer - www.P65Warnings.ca.gov

Others

Life cycle assessment data

No

If one of the deliverables is not relevant please give the reason

acc

Substance regulation data deliverable

Yes

Legacy weee scope

In

Package 1 bare product quantity

1

Average percentage of recycled plastic content

0 %

At least in Europe

Weee label

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Device short name

LA9D

Poles description

4P

Electrical circuit type

changeover contactor

Compatibility code

LA9D

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

34.8 cm

Package 1 width

9.3 cm

Package 1 length

8.7 cm

Package 1 weight

1.06 kg

Unit type of package 2

S03

Number of units in package 2

9

Package 2 height

30.0 cm

Package 2 width

30.0 cm

Package 2 length

40.0 cm

Package 2 weight

9.98 kg

Green premium status for reporting

Green Premium product

Sustainable packaging

No

F-gas free

N/A

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A

Average percentage of recycled metal content

0 %

Packaging made with recycled cardboard

Yes

Packaging without single use plastic

No

End of life manual availability

ENVEOLI100405EN

Take-back

No

Weee label

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Warranty (in months)

18
Show all specifications
