TeSys GV4 Rotary handle kit TeSys GV4, extended, fixed, red, IP65

Home ProductsIndustrialTeSysRotary handle kit

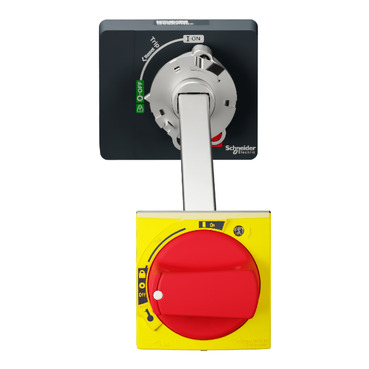

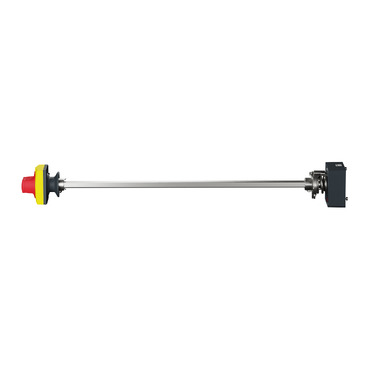

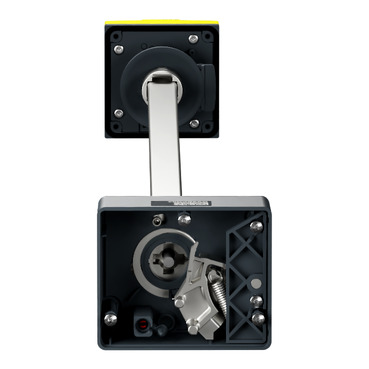

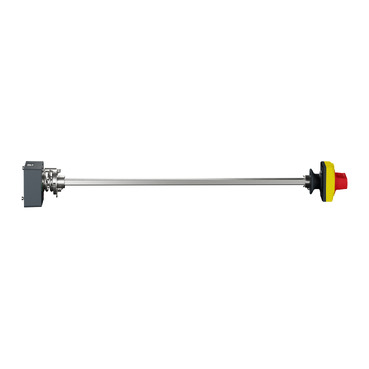

TeSys GV4 Rotary handle kit TeSys GV4, extended, fixed, red, IP65

Item Number: GV4APN04

Where To Buy

Datasheet

PDF datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range

  • TeSys
  • TeSys Deca

Product or component type

rotary handle kit

Physical

Marking

OFF - Trip - ON

Range compatibility

  • TeSys TeSys GV4
  • TeSys TeSys BV4
  • TeSys TeSys Deca

Mounting mode

fixed

Ip degree of protection

IP65

Mercury free

Yes

Rohs exemption information

Yes

Environmental disclosure

ENVPEP2204005EN

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Reach regulation

Reference contains Substances of Very High Concern above the threshold

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

California proposition 65

WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Others

Life cycle assessment data

Yes

Substance regulation data deliverable

Yes

Legacy weee scope

Out

Average percentage of recycled plastic content

0 %

Package 2 bare product quantity

12

Package 1 bare product quantity

1

Weee label

No

Weee applicability

Finished product

Weee exclusion rationale

Product/component not in scope – not electric/electronic device

At least in Europe

Accessory / separate part category

control accessory

Rotary handle mounting style

extended

Handle colour

red

Handle front plate colour

yellow

Rotary handle padlocking

  • 1 to 3 padlocks
  • padlock in ON position
  • padlock in OFF position

Mounting location

door of enclosure

Locking options description

1 to 3 padlocks Ø 4 to Ø 8

Back/door distance

214...627 mm

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

8.800 cm

Package 1 width

9.000 cm

Package 1 length

45.900 cm

Package 1 weight

679.000 g

Unit type of package 2

S04

Number of units in package 2

12

Package 2 height

30.000 cm

Package 2 width

40.000 cm

Package 2 length

60.000 cm

Package 2 weight

8.904 kg

Green premium status for reporting

Green Premium product

Sustainable packaging

No

Halogen-free status

Halogen free plastic parts product

Energy efficiency optimized

False

F-gas free

N/A

Updatability

N/A

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A

Average percentage of recycled metal content

0 %

Packaging made with recycled cardboard

Yes

Packaging without single use plastic

Yes

Scip number

ab9dc4da-002c-433d-9974-4b46c472d129

Halogen-free status

Halogen free plastic parts product

End of life manual availability

ENVEOLI2204005EN

Take-back

No

Warranty (in months)

18
Show all specifications

Documents & downloads

hide show
Filter items

  • All

  • CAD Files and Packs

  • Technical Data Catalogues

  • Environmental Disclosure

  • End of Life Manual

  • Installation Instruction

  • Technical illustration

  • Certificates (MSDS)

  • Declaration of Conformity

  • Declaration of Conformity (Sustainability)

Important: Some software files may need a mySchneider or Club login to download.
Extended rotary handle IP65 red/yellow for TeSys GV4/BV4 - 3D CAD
ZIP

Extended rotary handle IP65 red/yellow for TeSys GV4/BV4 - 3D CAD

VERSION

1.0

DATE

30 Nov 2021

REVISION

1.0

DOWNLOAD (ZIP) 870.3 KB
TeSys - Catalog 2025 - Innovative and connected solutions for motor starters
ZIP

TeSys - Catalog 2025 - Innovative and connected solutions for motor starters

VERSION

16.0

DATE

30 Jul 2025

REVISION

16.0

DOWNLOAD (ZIP) 83.4 MB
Rotary Handle for Compact NSX 100A to 630A - Product Environmental Profile
ZIP

Rotary Handle for Compact NSX 100A to 630A - Product Environmental Profile

VERSION

1.0

DATE

12 Sep 2025

REVISION

1.0

DOWNLOAD (ZIP) 405.8 KB
Rotary Handle for Compact NSX 100A to 630A - End of Life Instructions
ZIP

Rotary Handle for Compact NSX 100A to 630A - End of Life Instructions

VERSION

1.0

DATE

12 Sep 2025

REVISION

1.0

DOWNLOAD (ZIP) 314.9 KB
TeSys Deca Motor Protection Frame 4 - Extended Rotary Handle - Instruction Sheet
ZIP

TeSys Deca Motor Protection Frame 4 - Extended Rotary Handle - Instruction Sheet

VERSION

1.0

DATE

16 Nov 2023

REVISION

1.0

DOWNLOAD (ZIP) 22.6 MB

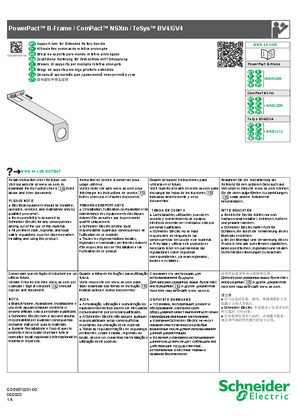

PowerPact B-Frame / ComPact NSXm / TeSys BV4/GV4 - Support Arm for Extended Rotary Handle
