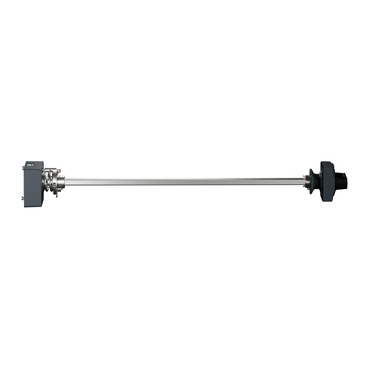

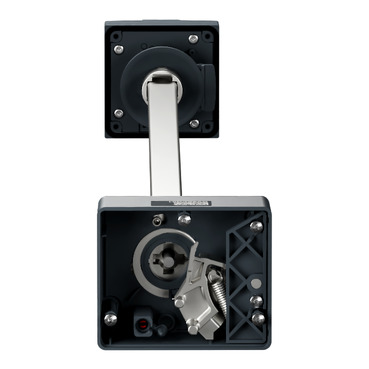

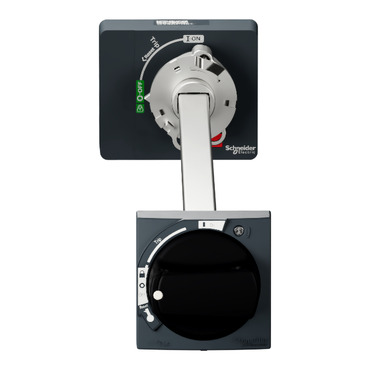

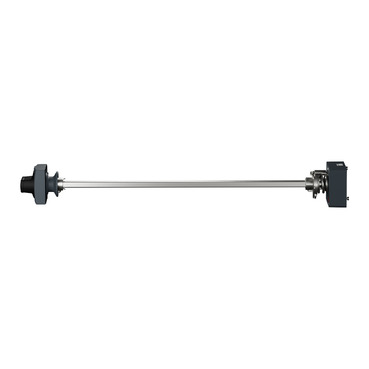

TeSys GV4 Rotary handle kit TeSys GV4, extended, fixed, black, IP54

Item Number: GV4APN01

1 PCE 0

Where To Buy

Datasheet

Download

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	3606485444734	-

Specifications

Design

Range	TeSys TeSys Deca
Product or component type	rotary handle kit

Physical

Marking	OFF - Trip - ON
Range compatibility	TeSys TeSys GV4 TeSys TeSys BV4 TeSys TeSys Deca
Mounting mode	fixed
Ip degree of protection	IP54
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP2204005EN
Reach regulation	Reference contains Substances of Very High Concern above the threshold
China rohs regulation	Product out of China RoHS scope
Eu rohs directive	Compliant By Exemption
California proposition 65	WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
California proposition 65	WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Others

Life cycle assessment data	Yes
Substance regulation data deliverable	Yes
Package 1 bare product quantity	1
Legacy weee scope	Out
Warranty duration(in months) bmecat	18
Package 2 bare product quantity	12
Average percentage of recycled plastic content	0 %
	At least in Europe
Weee label	No
Weee applicability	Finished product
Weee exclusion rationale	Product/component not in scope – not electric/electronic device
Accessory / separate part category	control accessory
Rotary handle mounting style	extended
Handle colour	black
Handle front plate colour	black
Rotary handle padlocking	padlock in ON position 1 to 3 padlocks padlock in OFF position
Mounting location	door of enclosure
Locking options description	1 to 3 padlocks Ø 4 to Ø 8
Back/door distance	214...627 mm
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	9.000 cm
Package 1 width	9.000 cm
Package 1 length	45.900 cm
Package 1 weight	669.000 g
Unit type of package 2	S04
Number of units in package 2	12
Package 2 height	30.000 cm
Package 2 width	40.000 cm
Package 2 length	60.000 cm
Package 2 weight	8.775 kg
Green premium status for reporting	Green Premium product
Total lifecycle carbon footprint	6 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	3.954827722101856
Carbon footprint of the manufacturing phase [a1 to a3]	4 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.1206622791270423
Carbon footprint of the distribution phase [a4]	0.1 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.2847962054765505
Carbon footprint of the installation phase [a5]	0.3 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	0
Carbon footprint of the use phase [b2, b3, b4, b6]	0 kg CO2 eq.
Sustainable packaging	No
Carbon footprint of the end-of-life phase [c1 to c4]	1.592575950793307
Carbon footprint of the end-of-life phase [c1 to c4]	2 kg CO2 eq.
Halogen-free status	Halogen free plastic parts product
Energy efficiency optimized	False
F-gas free	N/A
Updatability	N/A
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	5.952862157498755
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	Yes
Packaging without single use plastic	Yes
Scip number	ab9dc4da-002c-433d-9974-4b46c472d129
Halogen-free status	Halogen free plastic parts product
End of life manual availability	ENVEOLI2204005EN
Take-back	No
Warranty (in months)	18

Show all specifications
