TeSys D Reversing Contactor TeSys Deca, 3P(3 NO), AC-3, 0 to 440V, 50A, 24 to 60VAC/DC coil
Item Number: LC2D50ABNE
Specifications
Design
Range of product
Range
- TeSys
- TeSys Deca
Product or component type
Warranty
Physical
Device presentation
[ue] rated operational voltage
[ie] rated operational current
- 50 A (at <60 °C) at <= 440 V AC-3 for power circuit
- 80 A (at <60 °C) at <= 440 V AC-1 for power circuit
Electrical durability
- 1.8 Mcycles 42 A AC-3 at Ue <= 440 V
- 0.5 Mcycles 80 A AC-1 at Ue <= 440 V
Mounting support
- plate
- rail
Standards
- EN/IEC 60947-4-1
- EN/IEC 60947-5-1
- UL 60947-4-1
- CSA C22.2 No 60947-4-1
- IEC 60335-1
Product certifications
- CCC
- CSA
- EAC
- UL
- KC
- DNV-GL
- LROS (Lloyds register of shipping)
- UKCA
Connections - terminals
- control circuit: screw clamp terminals 1 cable(s) 1-4 mm²flexible without cable end
- control circuit: screw clamp terminals 2 cable(s) 1-4 mm²flexible without cable end
- control circuit: screw clamp terminals 1 cable(s) 1-4 mm²flexible with cable end
- control circuit: screw clamp terminals 2 cable(s) 1-2.5 mm²flexible with cable end
- control circuit: screw clamp terminals 1 cable(s) 1-4 mm²solid
- control circuit: screw clamp terminals 2 cable(s) 1-4 mm²solid
- power circuit: EverLink BTR screw connectors 1 cable(s) 1-35 mm²flexible without cable end
- power circuit: EverLink BTR screw connectors 2 cable(s) 1-25 mm²flexible without cable end
- power circuit: EverLink BTR screw connectors 1 cable(s) 1-35 mm²flexible with cable end
- power circuit: EverLink BTR screw connectors 2 cable(s) 1-25 mm²flexible with cable end
- power circuit: EverLink BTR screw connectors 1 cable(s) 1-35 mm²solid
- power circuit: EverLink BTR screw connectors 2 cable(s) 1-25 mm²solid
Mechanical durability
Insulation resistance
Ip degree of protection
Climatic withstand
- conforming to IACS E10
- conforming to IEC 60947-1 Annex Q category D
Ambient air temperature for operation
- -40...60 °C
- 60...70 °C with derating
Ambient air temperature for storage
Height
Width
Depth
Net weight
Reach regulation
Eu rohs directive
Mercury free
Rohs exemption information
China rohs regulation
Environmental disclosure
Circularity profile
Others
Life cycle assessment data
Substance regulation data deliverable
Package 1 bare product quantity
Product name
- Tesys Deca green
- TeSys Deca
Device short name
Contactor application
- motor control
- resistive load
Utilisation category
- AC-1
- AC-3
Poles description
Pole contact composition
Motor power kw
- 15 kW at 220...230 V AC 50 Hz
- 22 kW at 380...400 V AC 50 Hz
- 25 kW at 415 V AC 50 Hz
- 30 kW at 440 V AC 50 Hz
- 30 kW at 500 V AC 50 Hz
- 33 kW at 660...690 V AC 50 Hz
Motor power hp
- 3 hp at 115 V AC 60 Hz for 1 phase motors
- 7.5 hp at 230/240 V AC 60 Hz for 1 phase motors
- 15 hp at 200/208 V AC 60 Hz for 3 phases motors
- 15 hp at 230/240 V AC 60 Hz for 3 phases motors
- 40 hp at 460/480 V AC 60 Hz for 3 phases motors
- 40 hp at 575/600 V AC 60 Hz for 3 phases motors
Control circuit type
- AC at 50/60 Hz AC/DC electronic
- DC AC/DC electronic
[uc] control circuit voltage
- 24...60 V AC 50/60 Hz
- 24...60 V DC
Auxiliary contact composition
[uimp] rated impulse withstand voltage
Overvoltage category
[ith] conventional free air thermal current
- 10 A (at 60 °C) for signalling circuit
- 80 A (at 60 °C) for power circuit
Irms rated making capacity
- 140 A AC for signalling circuit conforming to IEC 60947-5-1
- 250 A DC for signalling circuit conforming to IEC 60947-5-1
- 900 A at 440 V for power circuit conforming to IEC 60947
Rated breaking capacity
[icw] rated short-time withstand current
- 100 A - 1 s for signalling circuit
- 120 A - 500 ms for signalling circuit
- 140 A - 100 ms for signalling circuit
- 400 A 40 °C - 10 s for power circuit
- 810 A 40 °C - 1 s for power circuit
- 84 A 40 °C - 10 min for power circuit
- 208 A 40 °C - 1 min for power circuit
Associated fuse rating
- 10 A gG for signalling circuit conforming to IEC 60947-5-1
- 100 A gG at <= 690 V coordination type 1 for power circuit
- 100 A gG at <= 690 V coordination type 2 for power circuit
Average impedance
[ui] rated insulation voltage
- power circuit: 690 V conforming to IEC 60947-4-1
- signalling circuit: 690 V conforming to IEC 60947-1
Power dissipation per pole
- 3.7 W AC-3
- 9.6 W AC-1
Protective cover
Interlocking type
Tightening torque
- control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mm
- control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver Philips No 2
- power circuit: 8 N.m - on EverLink BTR screw connectors - cable 25-35 mm² hexagonal screw head 4 mm
- power circuit: 5 N.m - on EverLink BTR screw connectors - cable 1-25 mm² hexagonal screw head 4 mm
Operating time
- 55...65 ms closing
- 20...120 ms opening (date code >= 17221)
- 20...80 ms opening (date code >= 18011)
Safety reliability level
- B10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1
- B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1
Maximum operating rate
Coil technology
Control circuit voltage limits
- <= 0.1 Uc (-40-70 °C):drop-out AC/DC
- 0.85...1.1 Uc (-40-60 °C):operational AC
- 0.8...1.1 Uc (-40-60 °C):operational DC
- 1...1.1 Uc (60-70 °C):operational AC/DC
Inrush power in va
Inrush power in w
Hold-in power consumption in va
Hold-in power consumption in w
Heat dissipation
Auxiliary contacts type
- type mechanically linked 1 NO + 1 NC conforming to IEC 60947-5-1
- type mirror contact 1 NC conforming to IEC 60947-4-1
Signalling circuit frequency
Minimum switching current
Minimum switching voltage
Non-overlap time
- 1.5 ms on de-energisation between NC and NO contact
- 1.5 ms on energisation between NC and NO contact
Compatibility code
Protective treatment
Pollution degree
Operating altitude
Fire resistance
Flame retardance
Mechanical robustness
- vibrations contactor open: 2 Gn, 5...300 Hz
- vibrations contactor closed: 4 Gn, 5...300 Hz
- shocks contactor open: 10 Gn for 11 ms
- shocks contactor closed: 15 Gn for 11 ms
Unit type of package 1
Number of units in package 1
Package 1 height
Package 1 width
Package 1 length
Package 1 weight
Unit type of package 2
Number of units in package 2
Package 2 height
Package 2 width
Package 2 length
Package 2 weight
Green premium status for reporting
Packaging made with recycled cardboard
Packaging without single use plastic
Scip number
Sustainable packaging
Weee
Halogen content performance
Halogen content performance
F-gas usage performance
Take-back
Take-back
Product contributes to saved and avoided emissions
Removable battery
Carbon footprint (kg.eq.co2 per cr, total life cycle)
Global warming ; total life cycle
Minimum percentage of recycled plastic content
Documents & downloads
hide show-
All
-
Product Brochures
-
CAD Files and Packs
-
Technical Data Catalogues
-
Environmental Disclosure
-
End of Life Manual
-
Installation Instruction
-
Technical illustration
-
Certificates (MSDS)
-

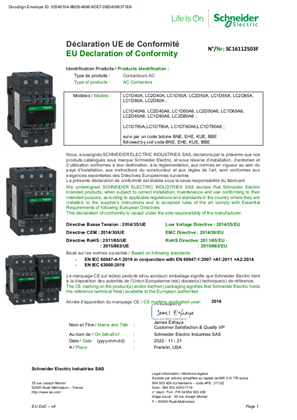

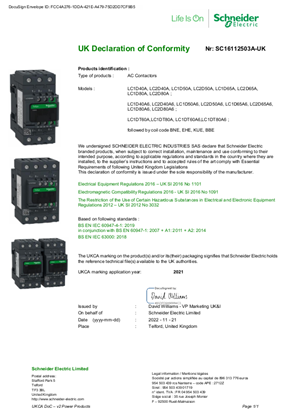

Declaration of Conformity
